Product Description
10W fast wireless charging PCBA customized type-C manufacturer wholesale Qi wireless charging module solution development
Product Description
Product parameters:
1. Input voltage:DC5V-9V
2. Input current:5V/2A,9V/1.67A
3. Output voltage:DC5V-9V
4. Output current:0.5A-1.67A
5. Charging power:Up to 10W
6. Conversion efficiency:More than 76%
7. Transmission distance:The maximum is 10 mm, and the recommended receiving and sending distance is 2 mm ~ 4 mm
8. Executive standard:Qi wireless charging standard
9. Working frequency:100~205KHZ
10. Charging interface:TYPE-C/MIRCO

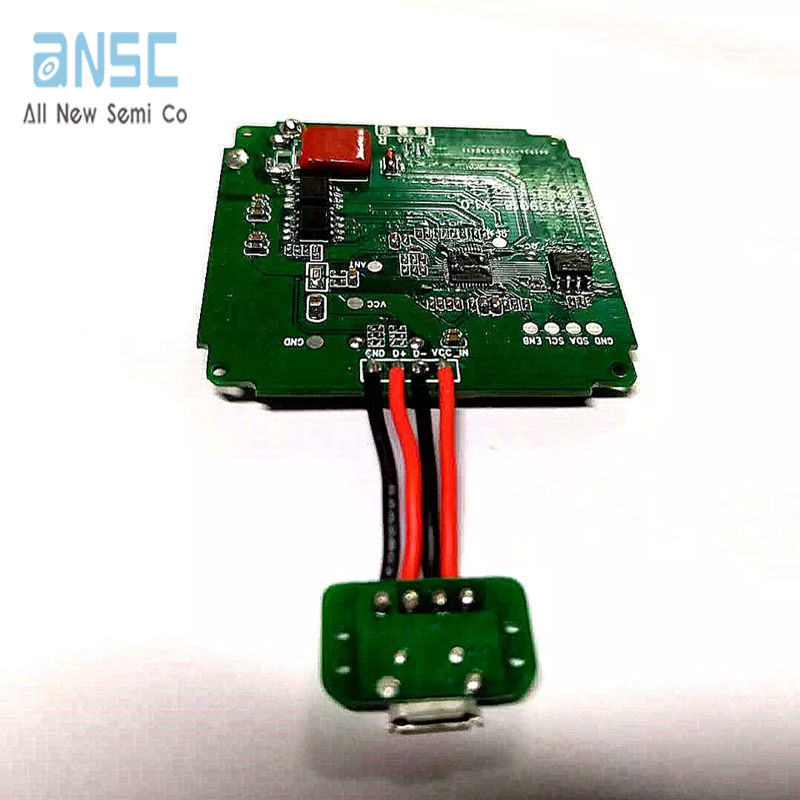

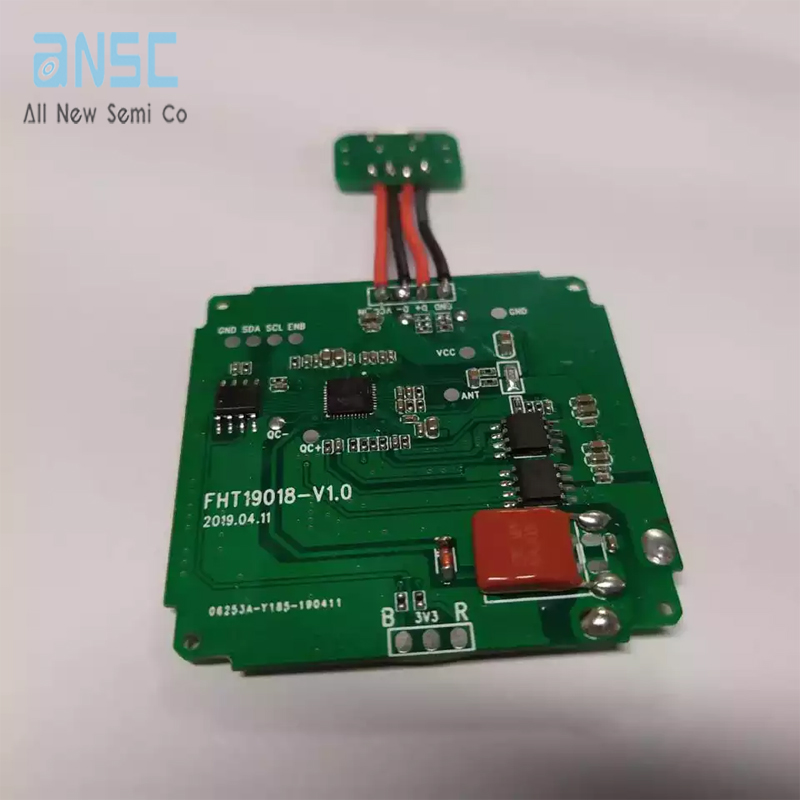

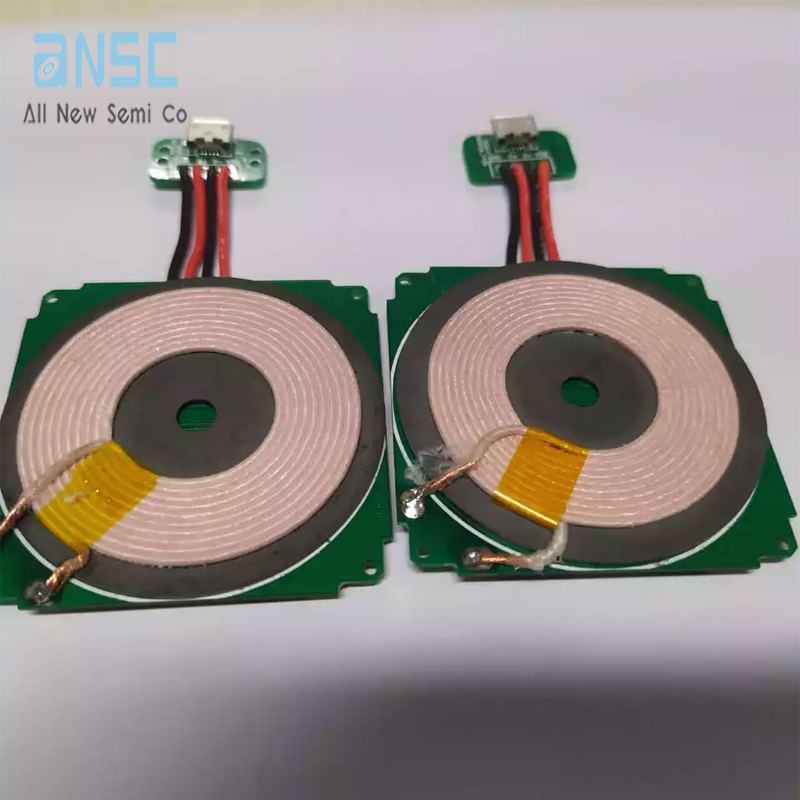

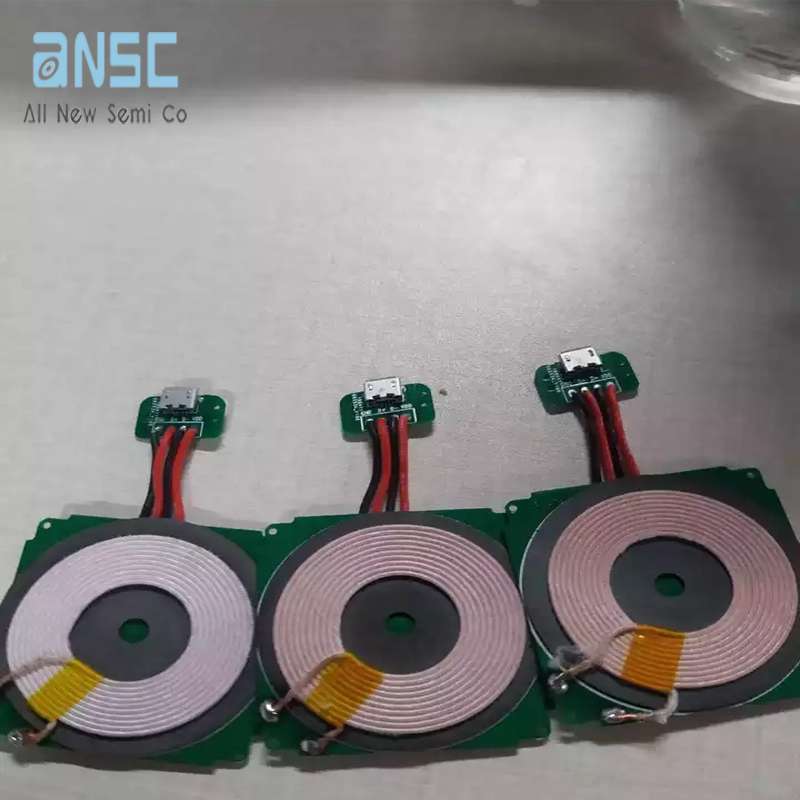

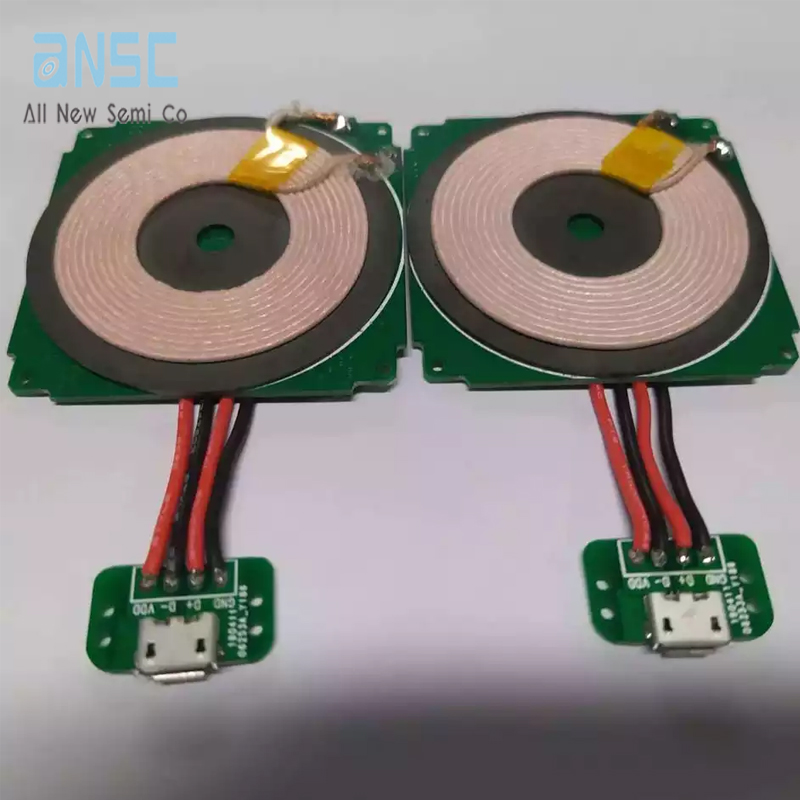

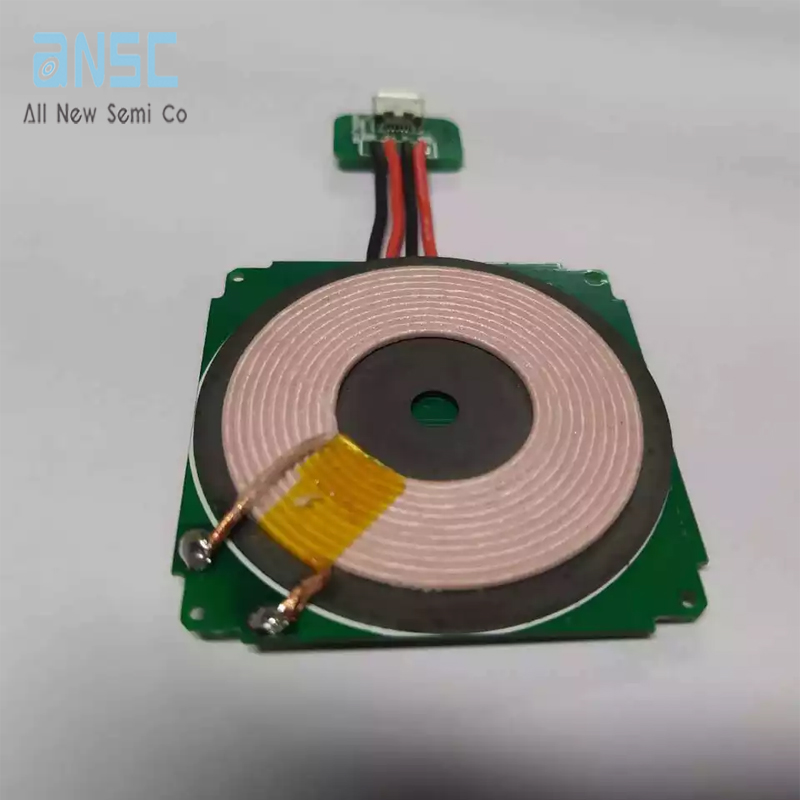

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
