Product Description
LOW price QI wireless charging module fast charging solution, transmitting end PCBA dual coil PCB fast charging 2 coil module 10W
Product Specification
1. Input voltage: DC5.0V-9.0V, if the voltage exceeds this range, it will alarm and stop charging.
2. Input current: 5V / 2A, 9V / 1.67A
3. Output voltage: 5V ± 0.1V, (QI receiving equipment)
4. Output current: 1A-1.5A (QI standard receiving equipment)
5. Charging power: up to 15W
6. Conversion efficiency: more than 80% (domestic reception is 65%)
7. Transmission distance: up to 5mm, the recommended sending and receiving distance is 2mm ~ 4mm
8. Standby power consumption: average power consumption is less than 30mW
9, over temperature protection: when the temperature is higher than 53 degrees when charging, automatically stop charging for 1 minute, and then recharge after the temperature drops (imported IC TDK resonance capacitor)
10, over-current protection: when the output current is greater than 2A when charging, automatically stop charging to prevent damage to the charger
11. Standard: Qi wireless charging standard (WPC1.2)
12, whether to support foreign body detection: support
13.Indicator function: blue light when charging, full green (only the original machine comes with receiving support)
14. Working frequency: 100KHZ-205KHZ
Product Feature
This module is a fast wireless charging dual coil solution, which can quickly and horizontally charge Note5, S6edge +, S7 and S7 edge horizontally and vertically. It supports wireless fast charging mobile phones within 2 hours. At the same time, 5W wireless charging phones It has good compatibility and can support Qi standard receivers such as Ti, IDT, PANASONIC.

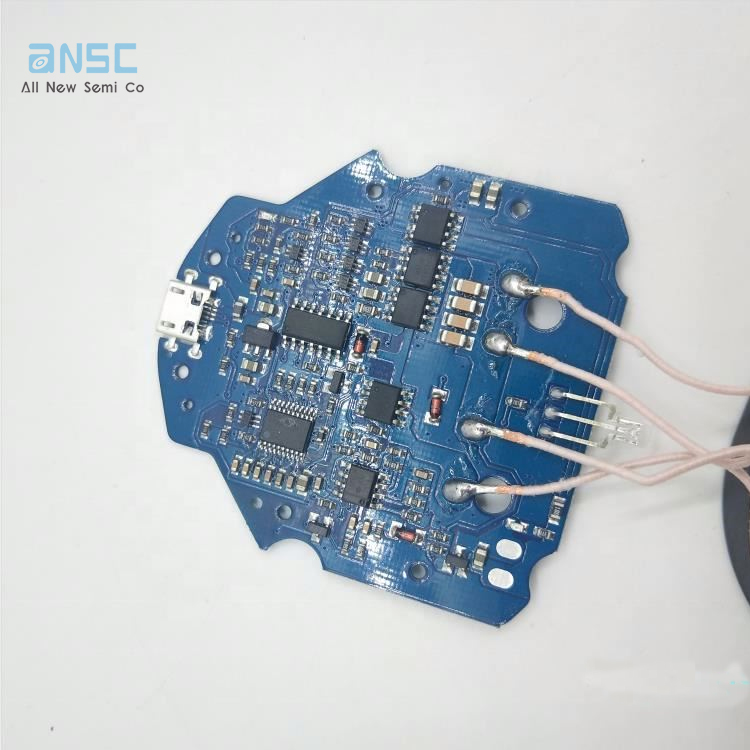

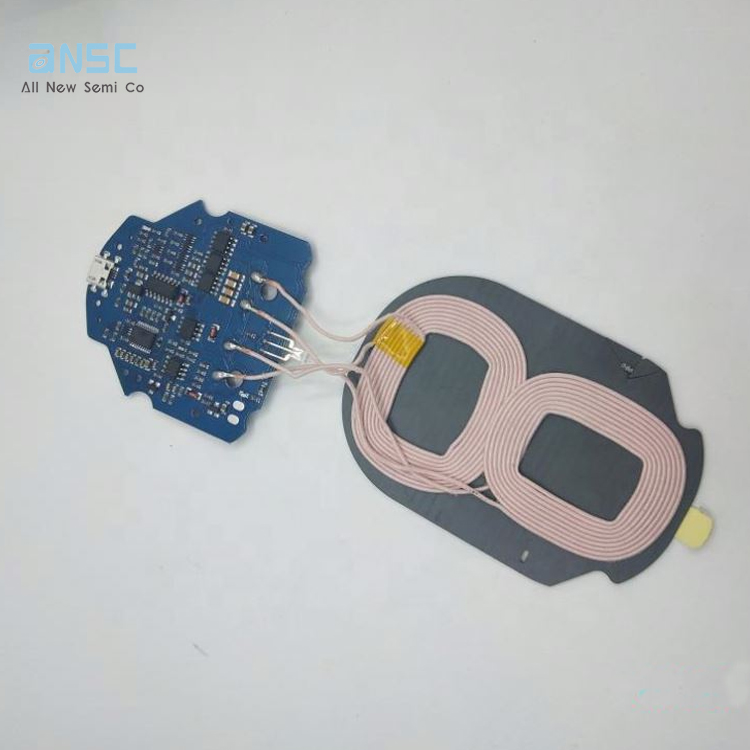

Actual image of the product
