Product Description
| Q5 / K9 / 02A product parameters: | 5W single coil |
| Scheme: | / |
| Interface: | Micro |
| Light indication: | LED |
| Launch distance: | 5-10mm |
| Charging current: | 1000mA |
| Wireless charging and output: | 5V-1A |
| Boost efficiency: | 93% |
| Working frequency: | 110-205KHZ |
| Wireless charging conversion efficiency: | 75% |
| Compatible with standard: | WPC1.1 |
| Protection measures: | Over current, over temperature and short circuit protection |
| Plate width size: | [02A] |
| Frame size: | 64*32*1mm |
| Coil size: | 50*50*1 |
| [Q3] | |
| Frame size: | 57*55*1mm |
| Coil size: | 50*50*1MM |
| [K9] | |
| Frame size: | 64*32*1mm |
| Coil size: | 50*50*1MM |

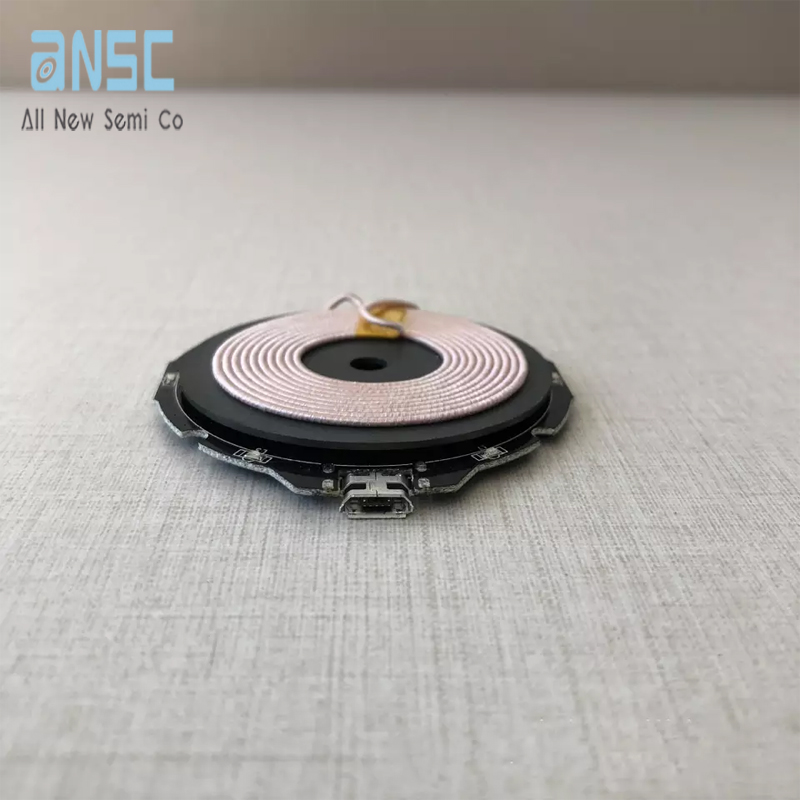

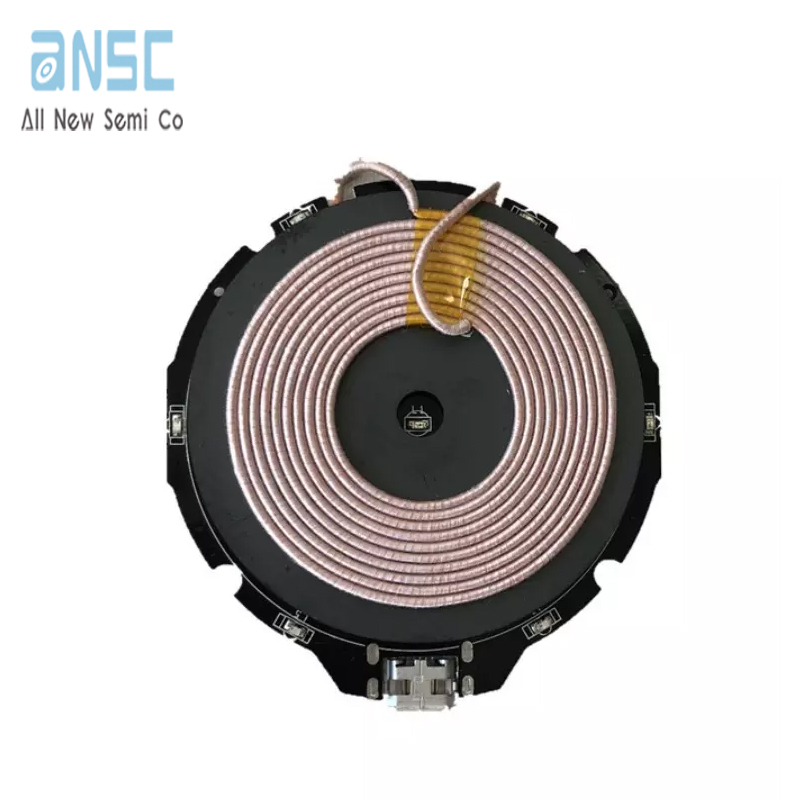

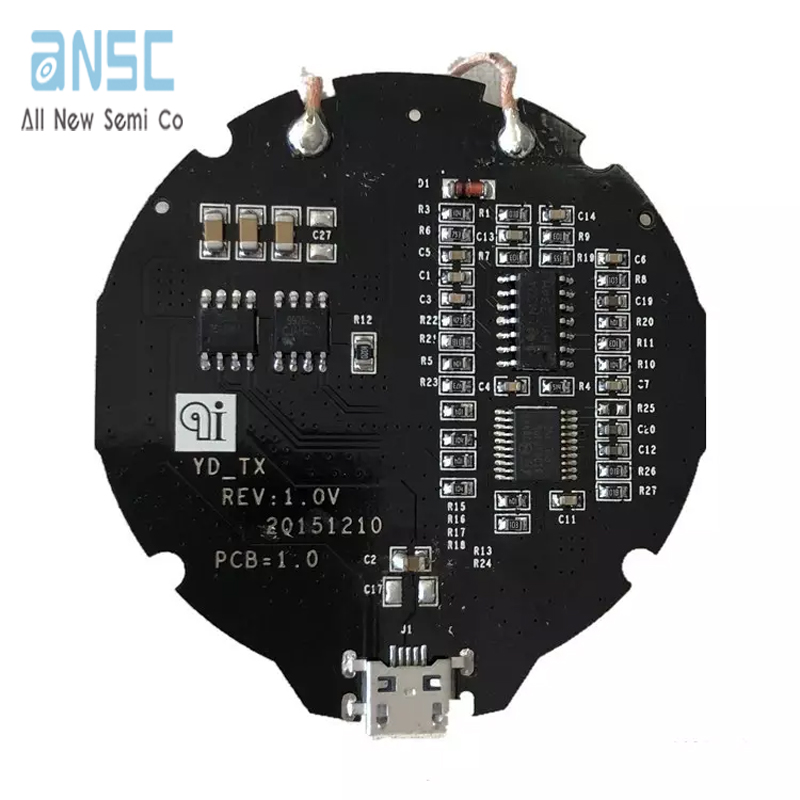

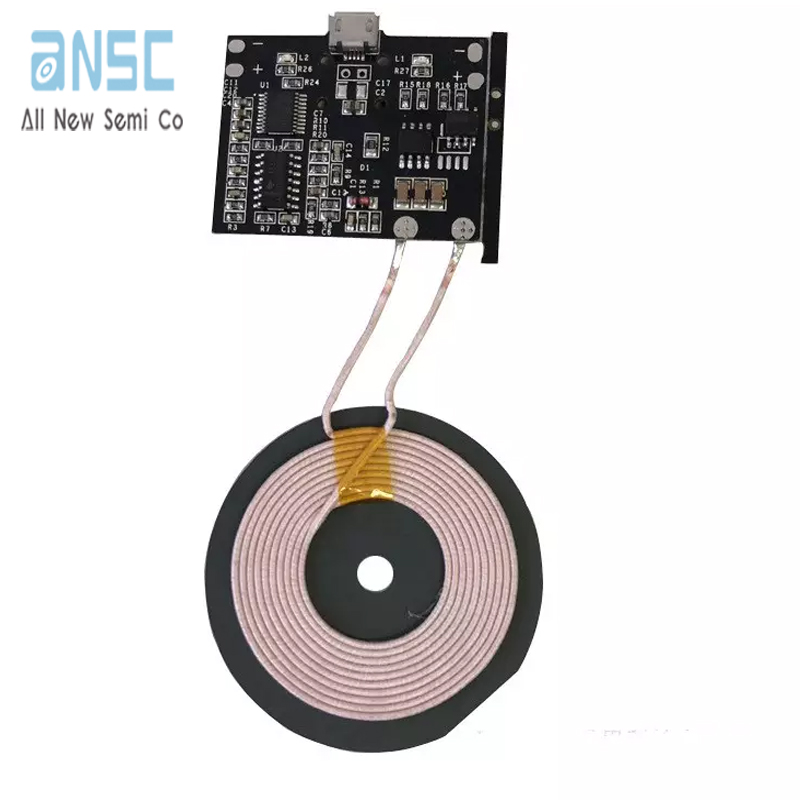

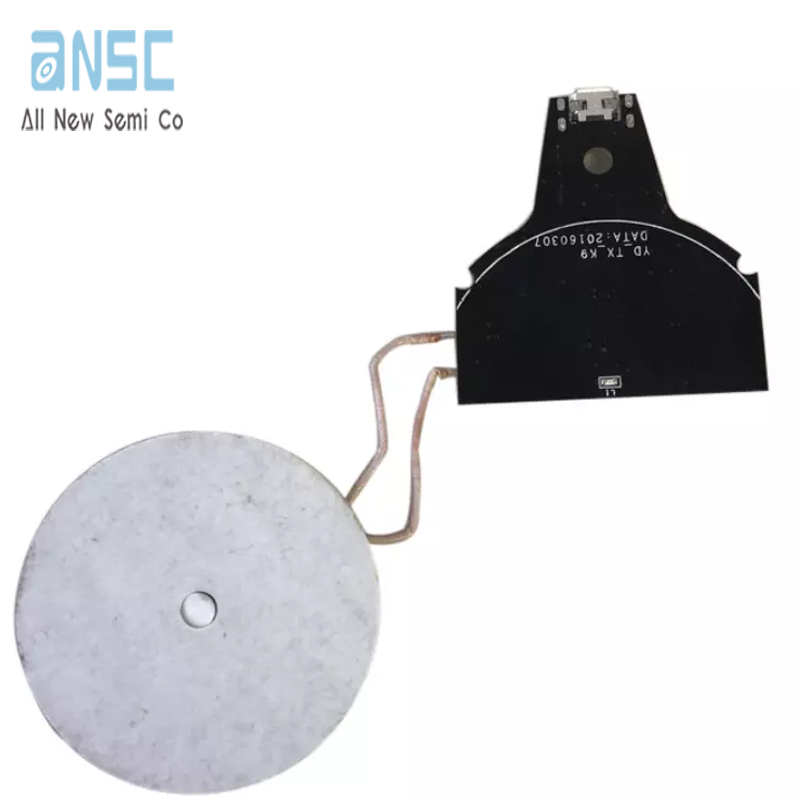

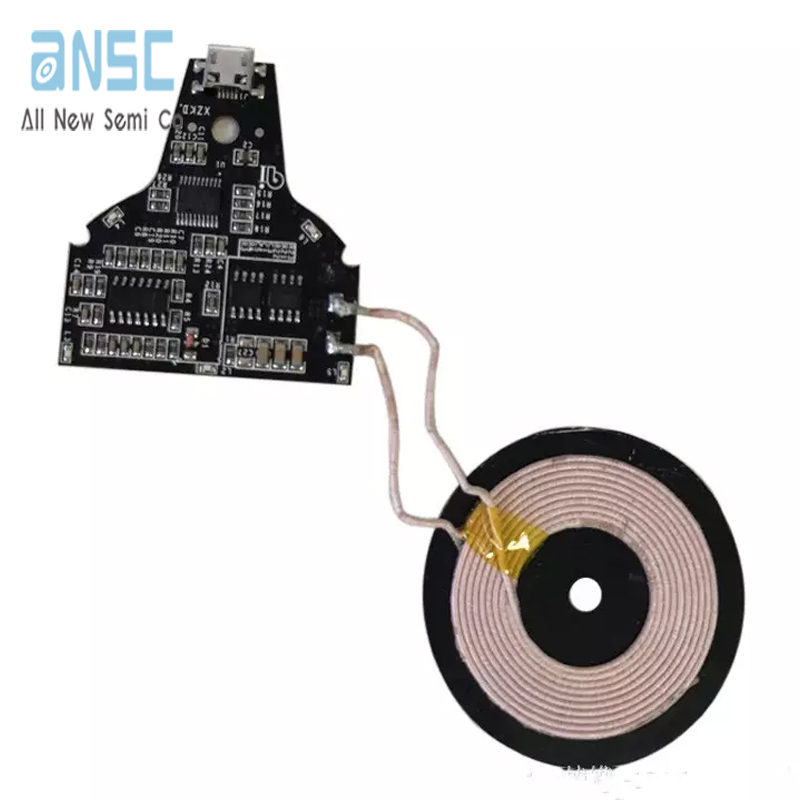

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
