Customized development of 10W ultra small volume Qi wireless charging scheme module PCBA circuit board wireless charging module
Product Description
1. Input voltage DC: 9V 2A
2. Wireless charging output: 9v1a
3. Wireless charging frequency: 100-200khz

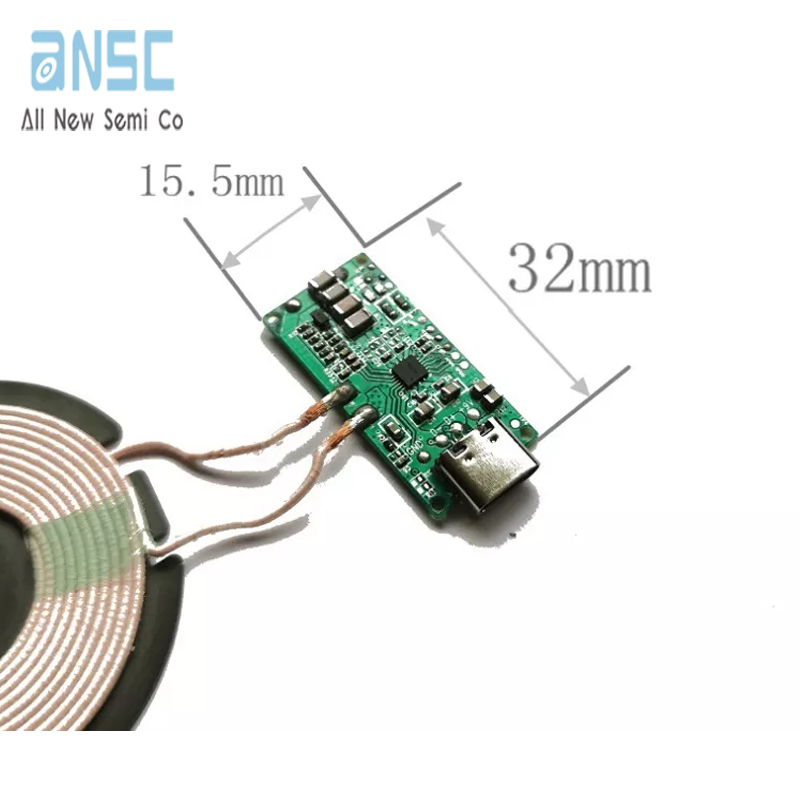

4. PCB size: 32 * 15.5mm

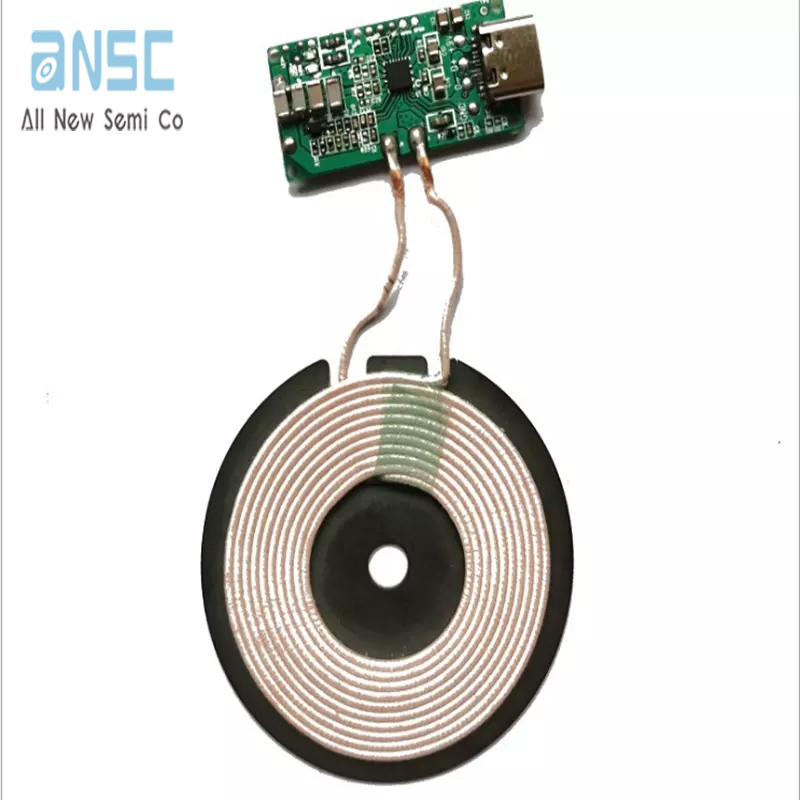

5. Coil size: 50mm circle
6. Charging efficiency > = 70%.
7. Charging distance: 2-8mm
8. Main chip brand: independent full integration
9. Version configuration: the latest high configuration
Other instructions:
1. This group of mould preparation metal foreign body detection function, charging intelligent indication, high charging efficiency, stable and non heating.

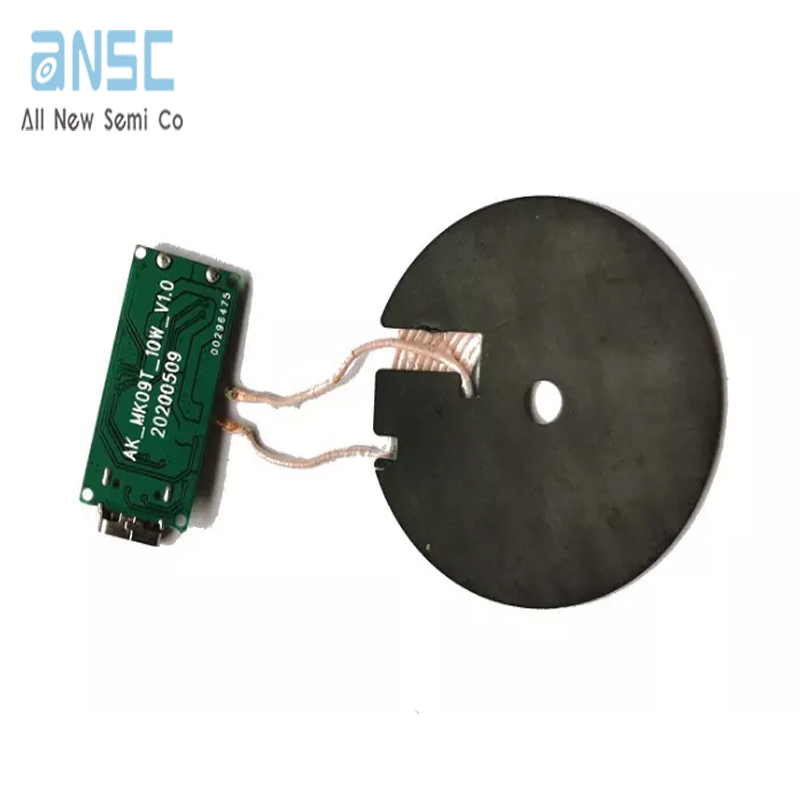

2. The materials are solid and exquisite. The main components are all imported brand configuration, and the pure copper coil is imported from Korea. The magnetic sheet is made of WPC certified standard material

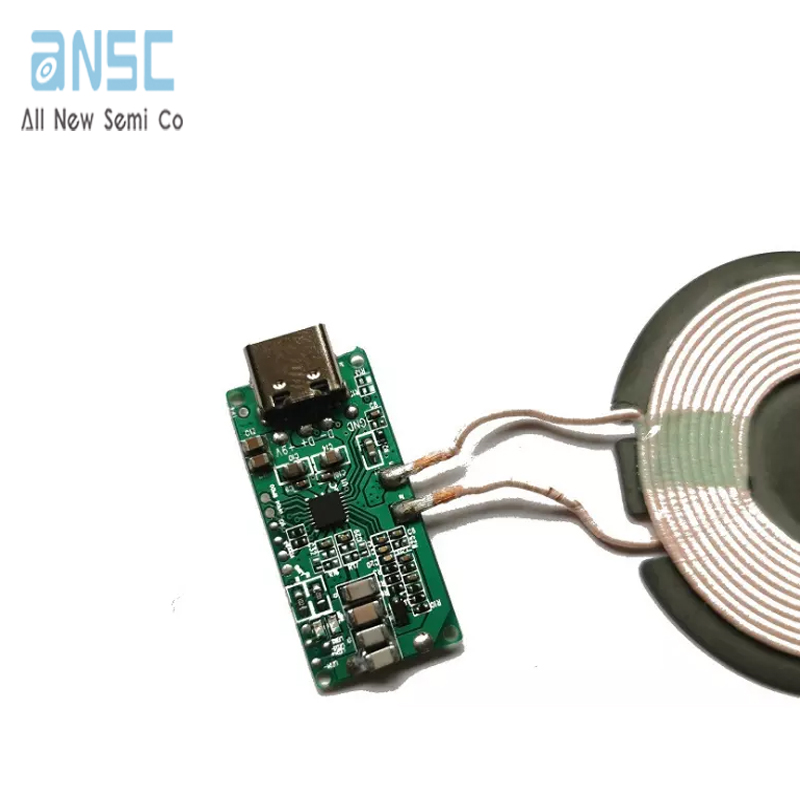

Special instructions: This 10W fully integrated single-chip wireless charging module with ultra-small size and type-C power port is suitable for direct use of most products.
The hardware and software configuration qualification of the chip can pass the Qi certification ability, welcome to customize!
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
