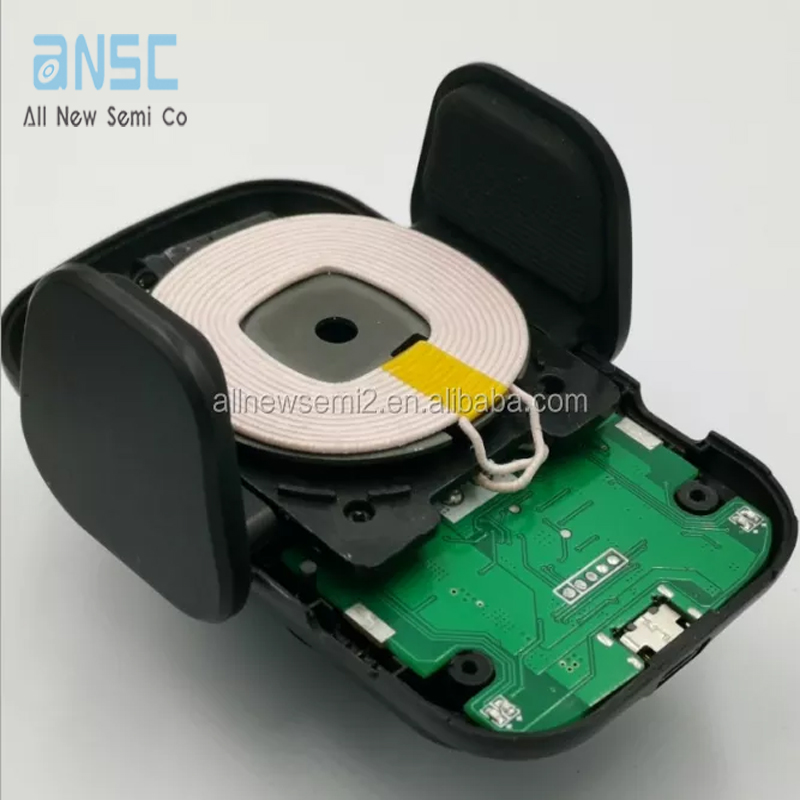

15W wireless fast charging FOD sensor bracket for mobile phone [PCBA customized](Accept customization)
Product Description
Parameter specification:
1. Input type C interface, support qc2.0, qc3.0,
2. Input voltage: 12V/9V / 5V
3. Wireless charging output 15W/10W / 7.5w/5w
4. Protection function: over current protection, over temperature protection, FOD metal foreign matter protection

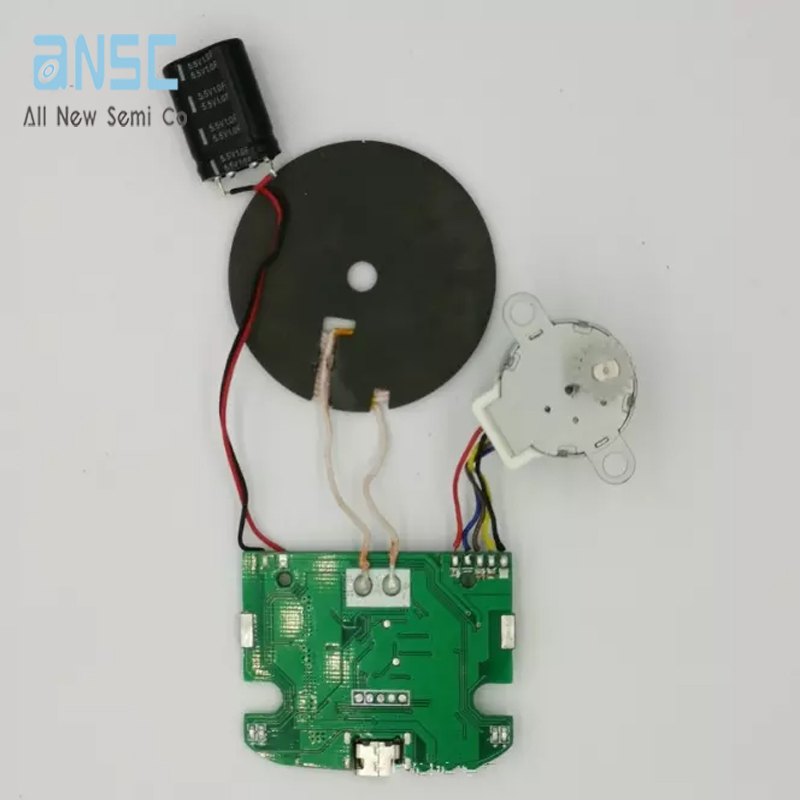

5. Support 5.5V 1F super capacitor backup power supply
Function description:
1. Touch the sensing switch clamping arm

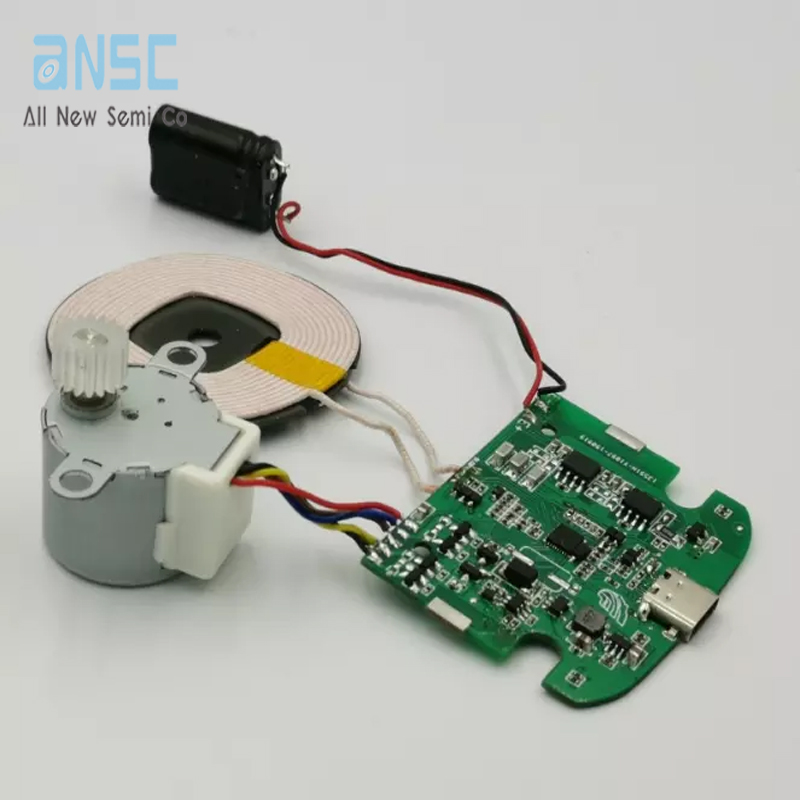

Support driving four phase, two-phase stepping motor and DC motor, three-axis linkage
2. For mobile phones without built-in wireless charging, FOD detection clamping method is adopted, which is compatible with all mobile phones on the market
3. Built in 5.5V 1F super capacitor, it can support opening and closing more than 50 times after power failure

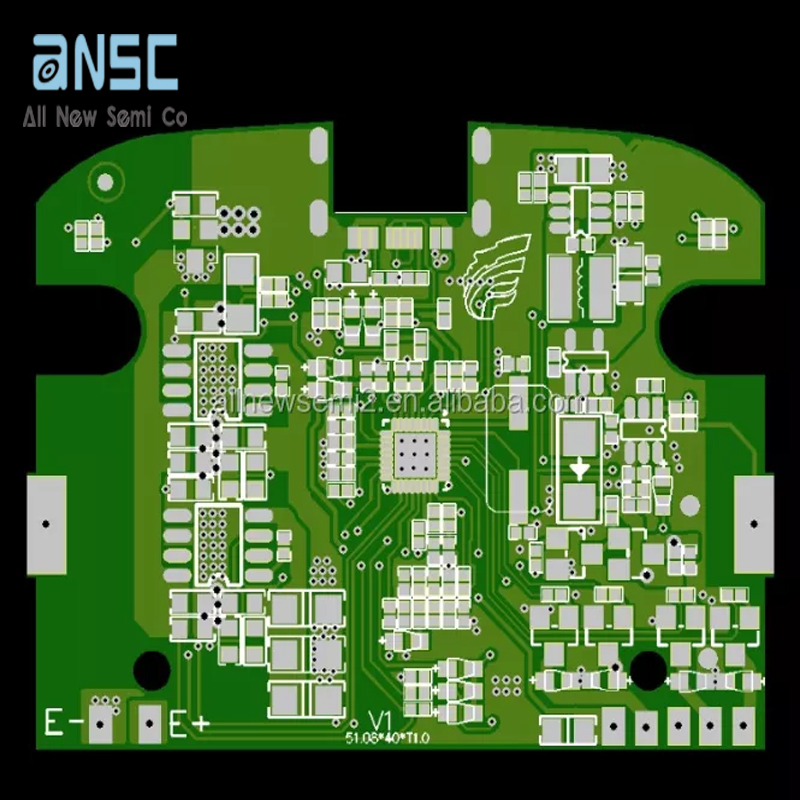

We can modify the design of board and frame according to the customer's mold, and modify the parameters according to the customization
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
