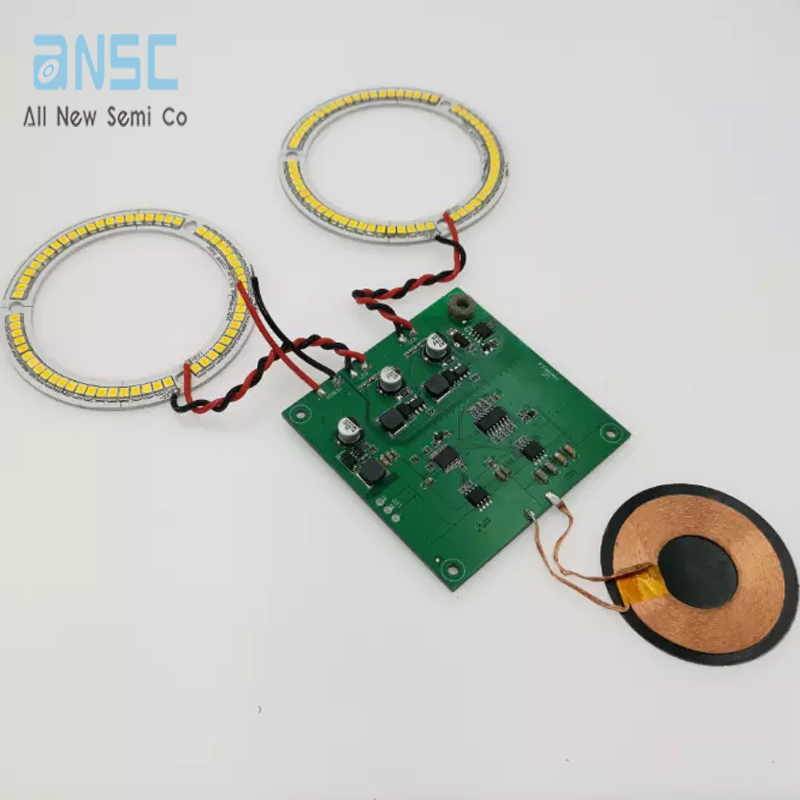

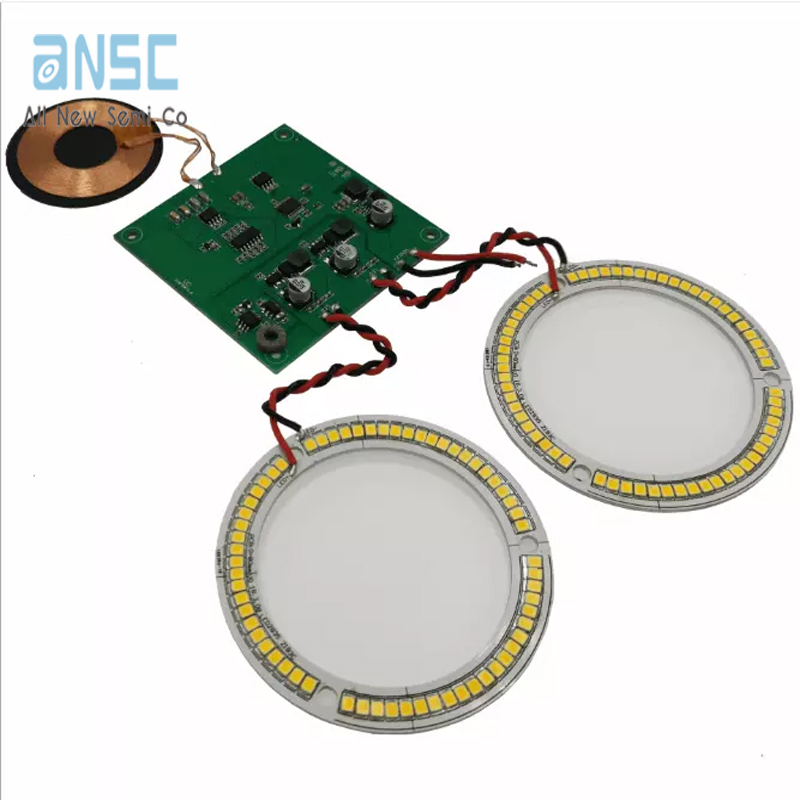

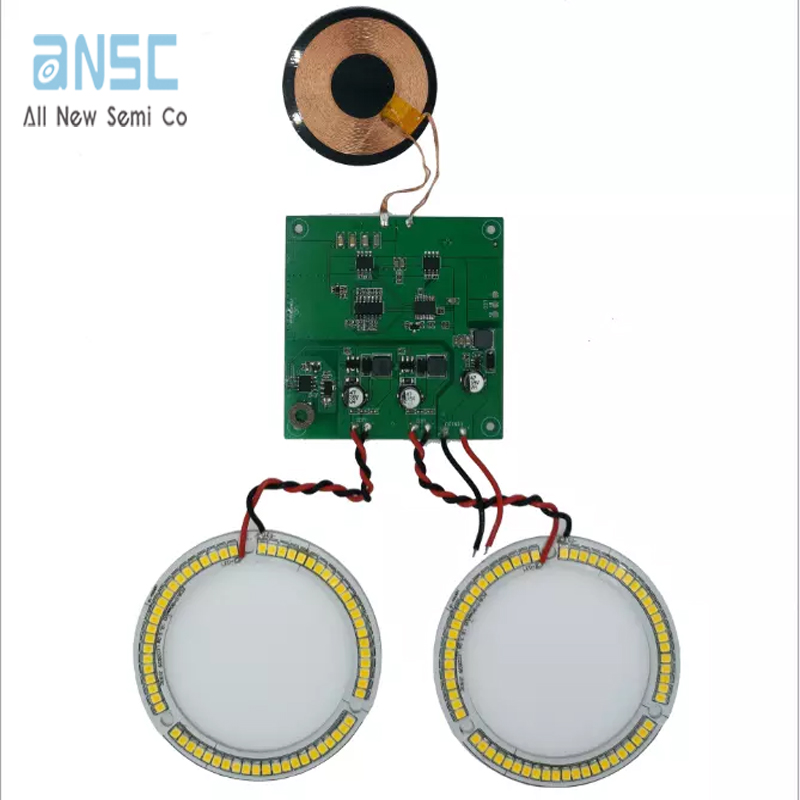

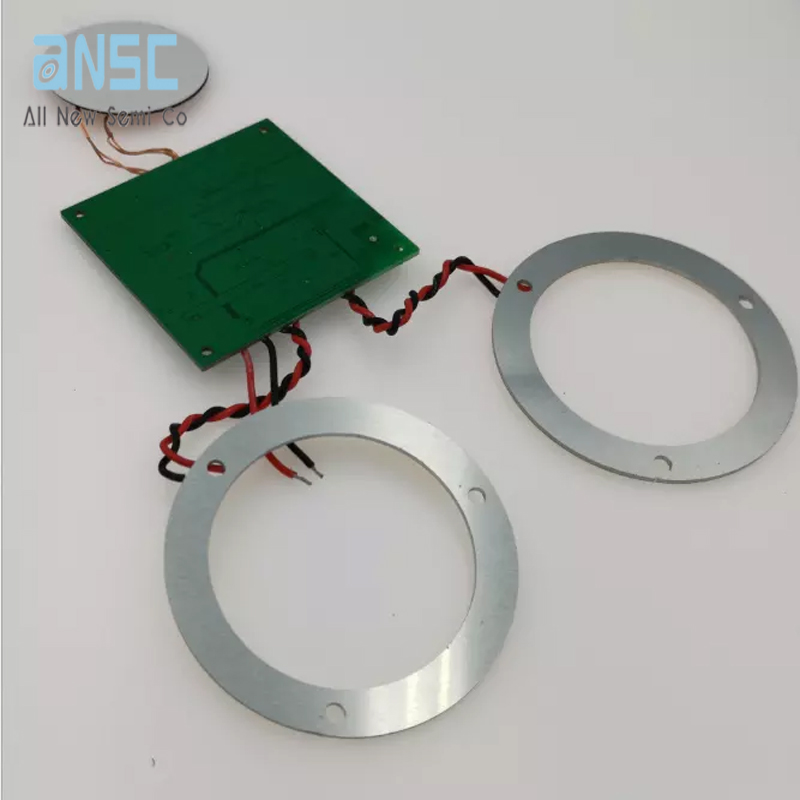

The first mock exam is dual 10WX2 LED touch dimming desk lamp 10W wireless charging module PCBA customization.(Accept customization)
Product Description
Input:12V3A
Output:LED desk lamp power 2x1W
Wireless charging power 10W
Performance parameter
a. LED desk lamp
Input voltage:12V
Maximum power10Wx263 2835LEDx2
Central illumination :1500LUX
Luminous flux:1000LMx2
Color temperature:2800k 5600k 6500k
Life:50000
b. 10W wireless charging
Input voltage:12V
Wireless charging output:10W/7.5W/5W
Protection function: Over current protection, over temperature protection, FOD metal foreign matter protection
Transmission distance:≤8mm
Charging efficiency: ≥76%
Instructions:Press the power button, short press to turn on, short press 2800k warm white, 5600 positive white, 6500 cold white, and then short press to turn off the desk lamp, and long press to increase or decrease the brightness
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
