Product Description
Single channel 6wled three touch dimming table lamp 10W wireless charging
two in one USB output module customized PCBA(Accept customization)
| Input: | 9V2A/QC2.0,QC3.0 |
| Output: | LED desk lamp power 6W |
| Wireless charging power 10W | |
| Performance parameter | |
| a. LED desk lamp | |
| Input voltage | 9V |
| Maximum power | 6W |
| 50 pieces of 4014 LED | |
| Central illumination | 500LUX |
| Luminous flux | 500LM |
| Color temperature | 6000k |
| Life | 50000 |
| b. 10W wireless charging | |
| Input voltage: | 5V/9V |
| Wireless charging output | 10W/7.5W/5W |
| Protection function: | Over current protection, over temperature protection, FOD metal foreign matter protection |
| Transmission distance | ≤8mm |
| Charging efficiency | ≥76% |
| [Instructions for use] |
| 1. Power button, short press to turn on and turn off the lamp |
| 2. Brightness button, high, medium, low three gear brightness adjustment |
| 3.1 h key, short press to turn on and off, 1 hour time to turn off |

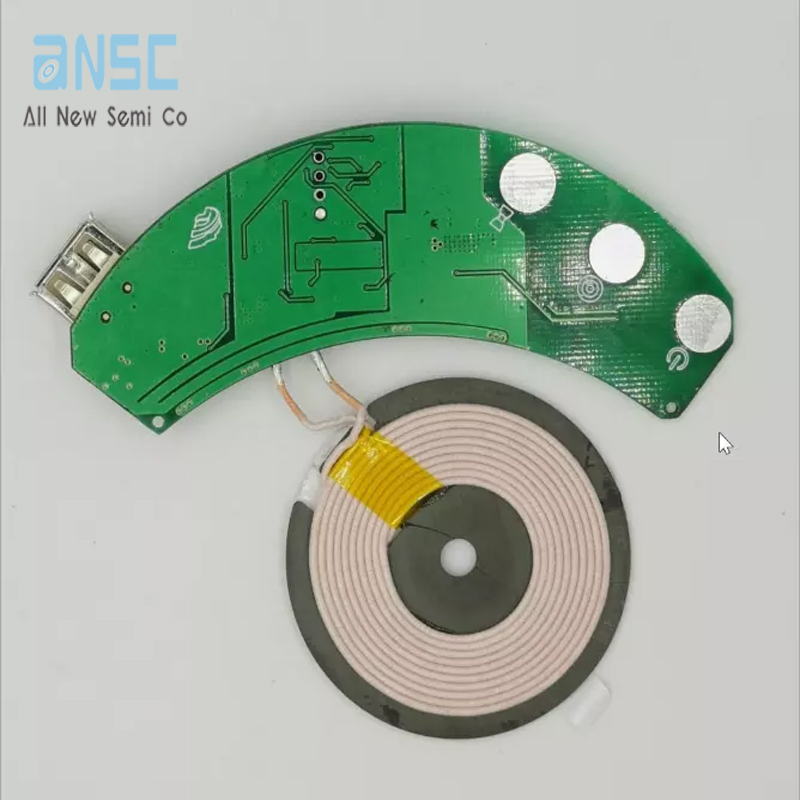

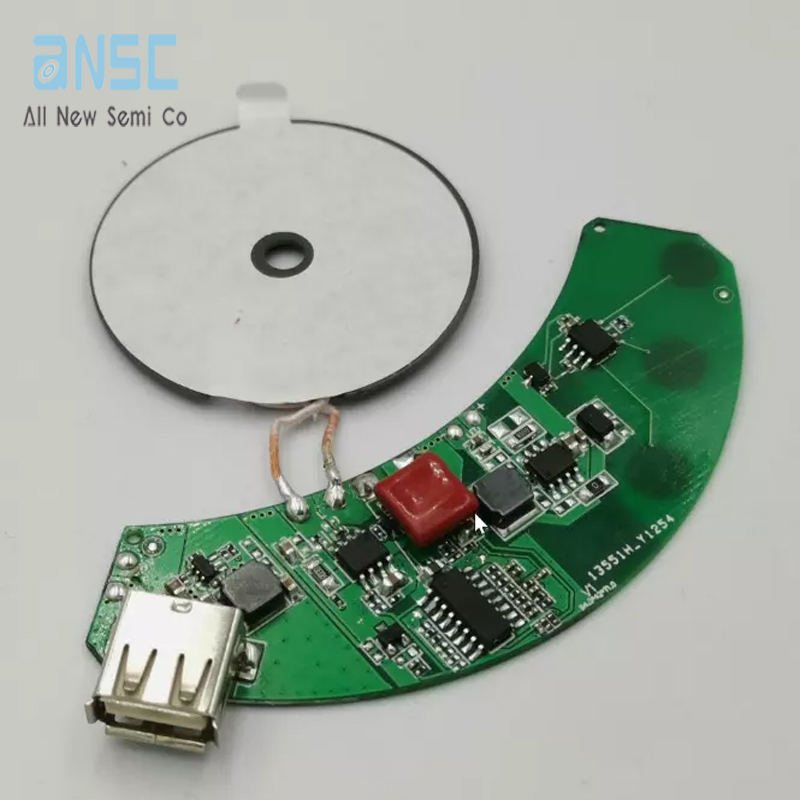

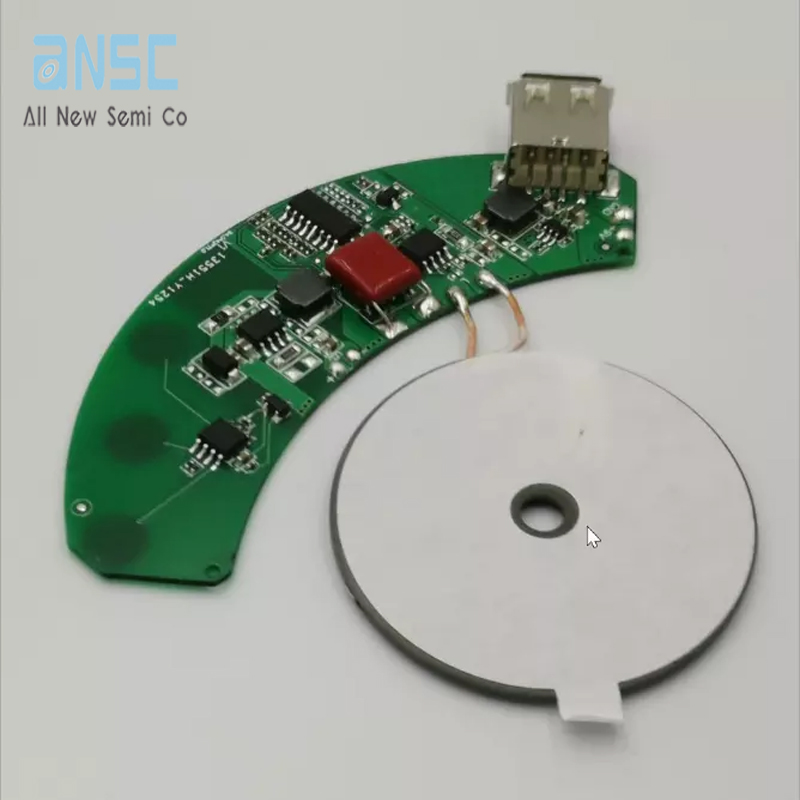

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
