Product Description
TWS wireless charging bin module, support pop-up window, support 1 ~ 4 grid power, 3-color power, 188 power indicator(Accept customization)
Product Description
Brief introduction:
This product is an integrated Qi wireless charging and receiving module, boost converter, lithium battery charging management, a variety of power indication function modules, currently supporting Luoda ab1536 pop-up window, other protocols are being
Characteristic
1. 500mA wireless receiving, supporting Qi protocol
2. Automatically adjust the output current to match the output capacity of adapter and wireless charger
3. 400mA linear charging with adjustable charging current
4. Support 4.2V, 4.3v, 4.35v and 4.4V batteries
5. Support 4 / 3 / 2 / 1 LED power display, 3-color power indicator, 188 nixie tube power indicator, customizable
6. Intelligent binaural independent recognition headset plug in / full / pull out, and automatically enter standby
7. Standby power consumption 25ua
8. Output over-current, over-voltage and short-circuit protection
9. Input overvoltage, overcharge and over-current protection
10. Over temperature protection of the whole machine

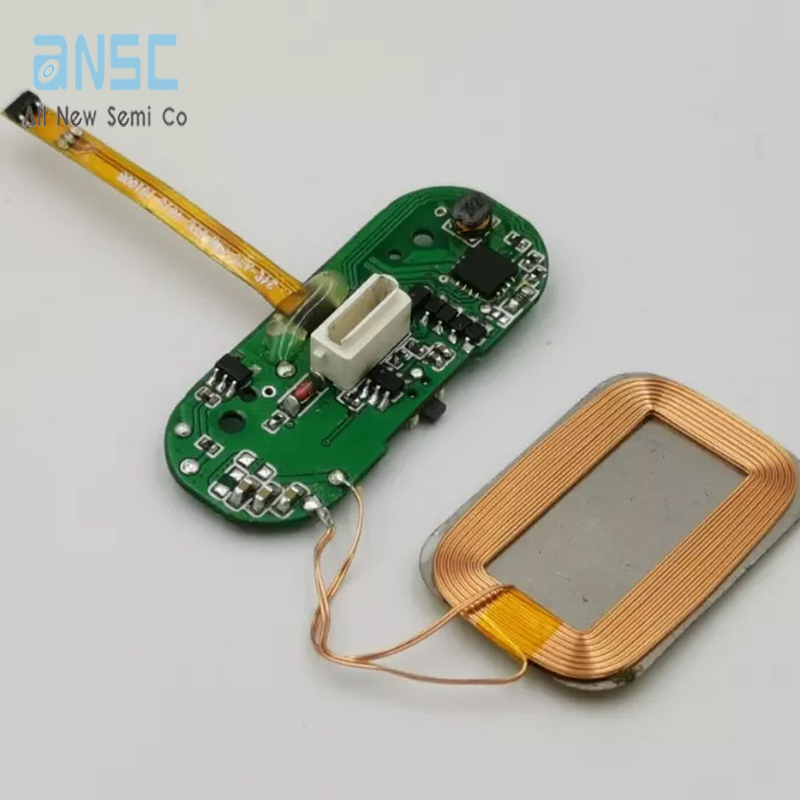

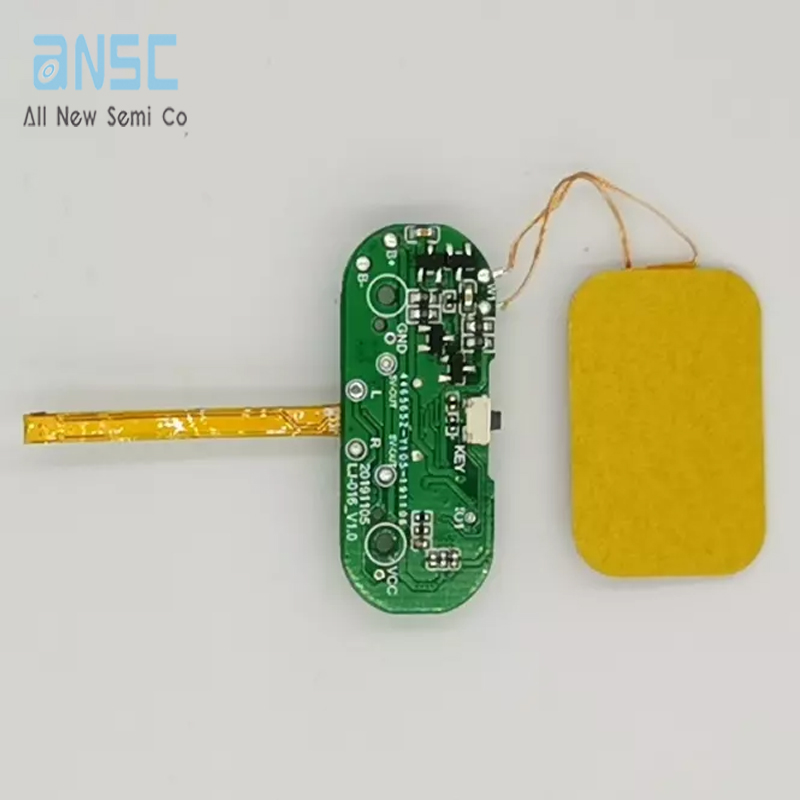

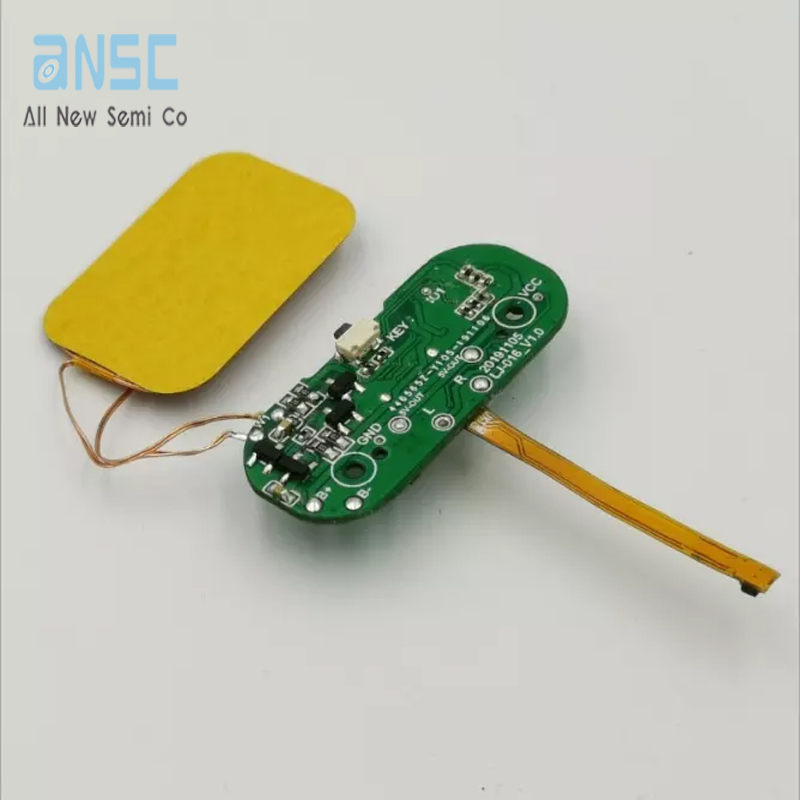

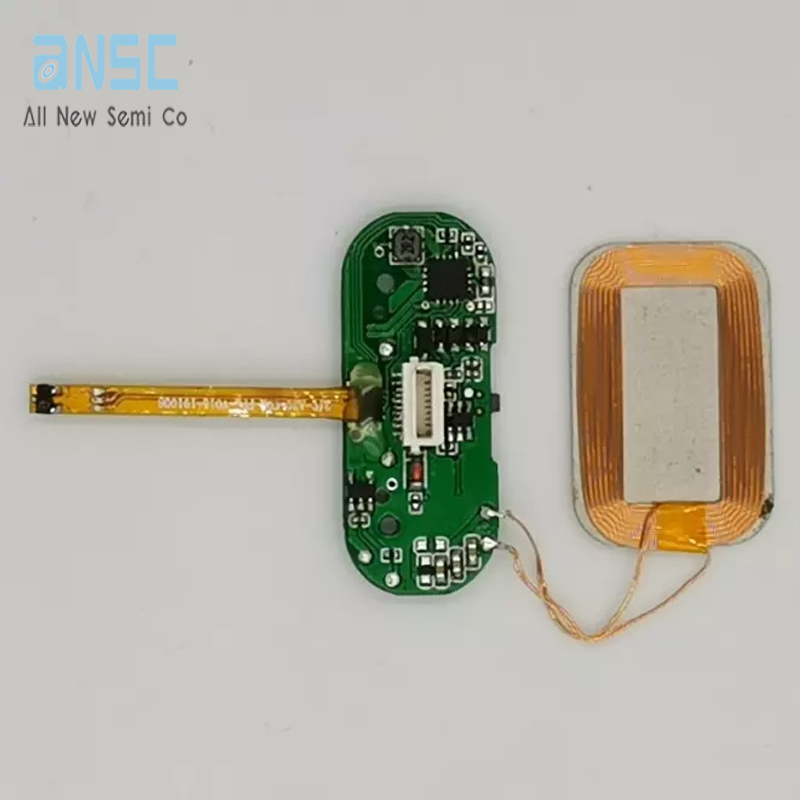

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
1.What machine to use |
2. Input voltage + current |
3. Output voltage + current |
4. Shape + size requirements |
5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
6. Plug / Welding wire Detailed requirements |
7. Quantity |
8. Certification requirements |
9. Other requirements |
This is a customized product, please contact us for price and more details.
