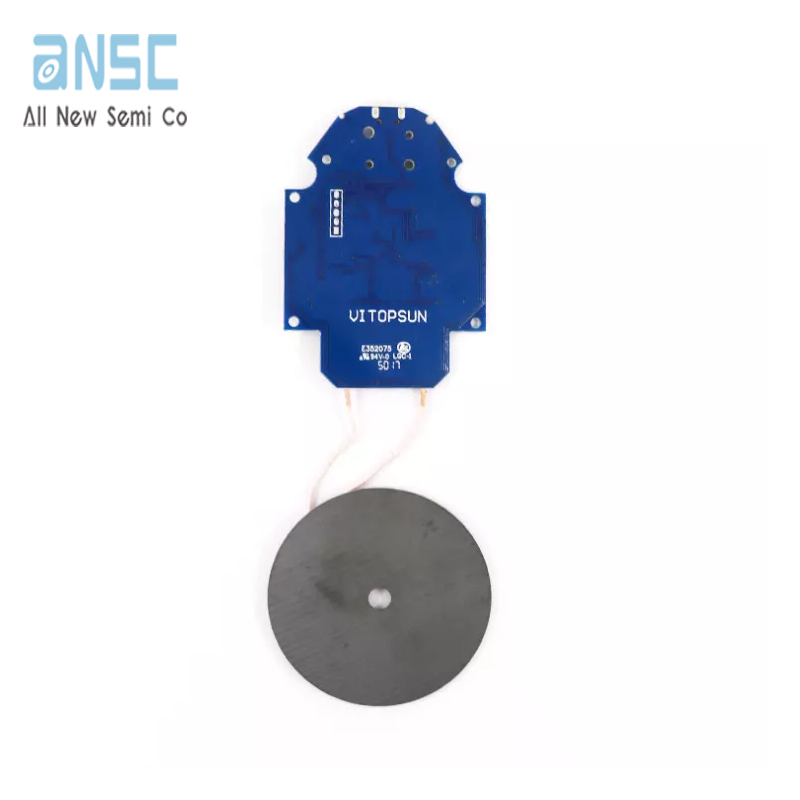

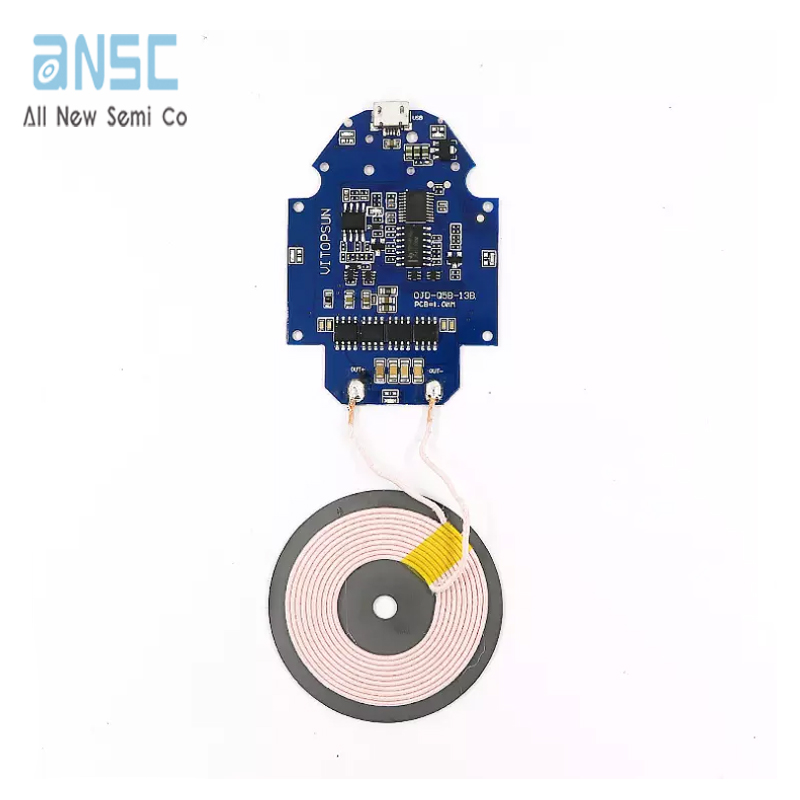

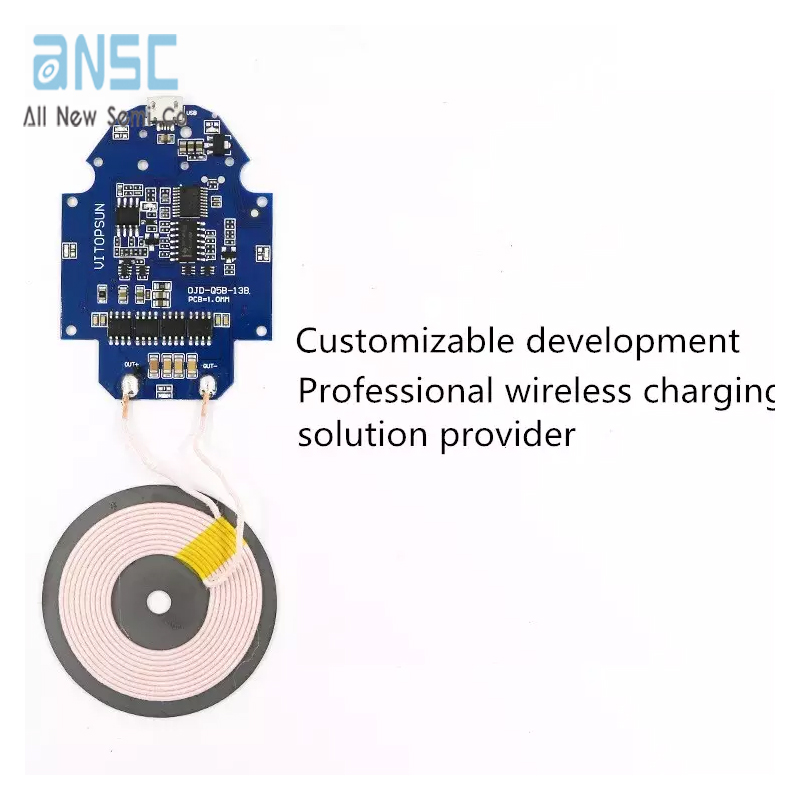

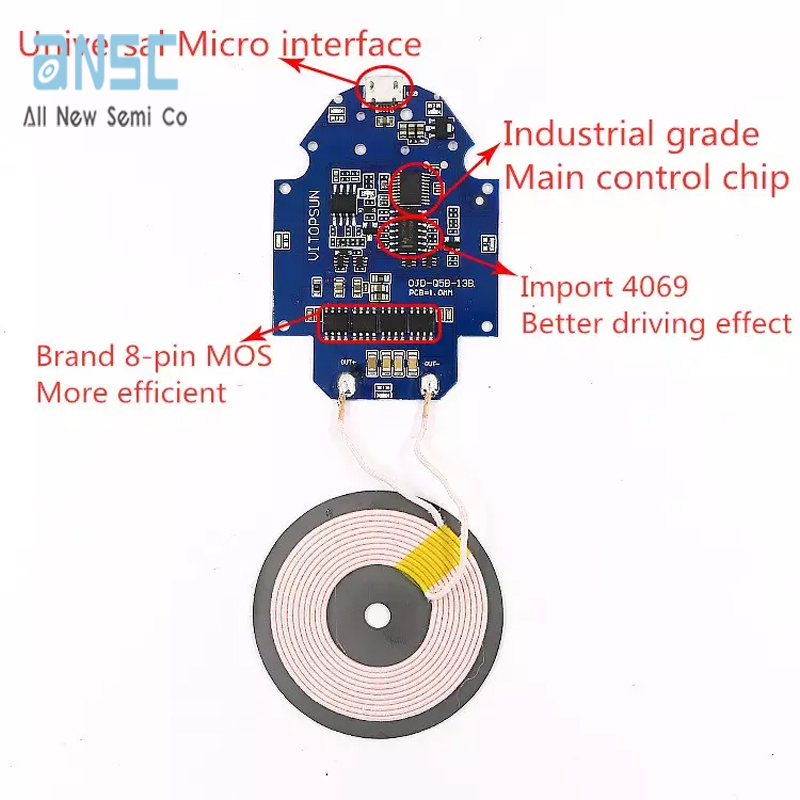

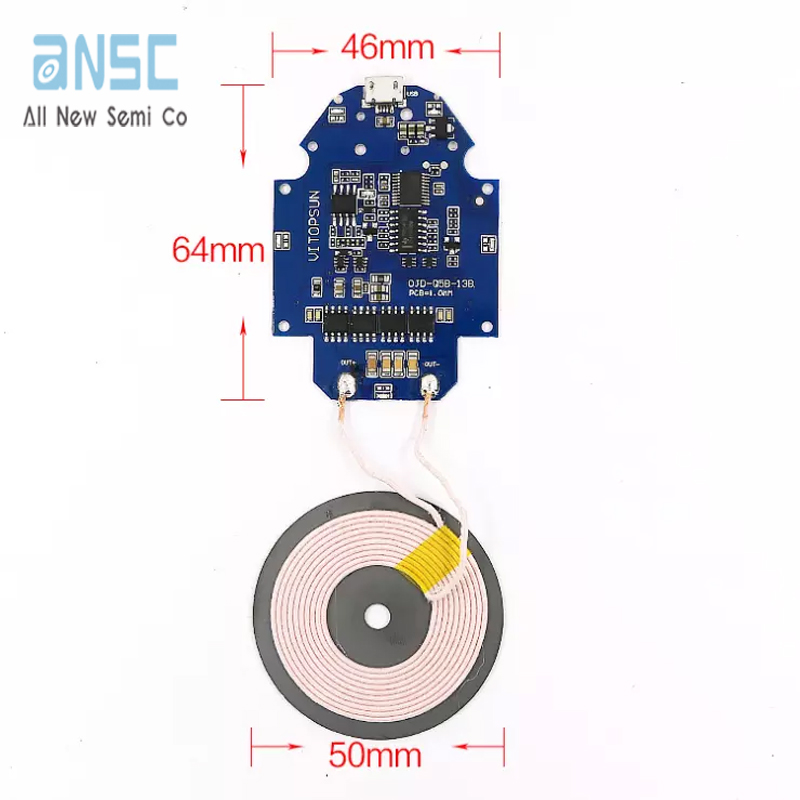

Wireless charger module 10W transmitter base fast charging PCBA board + coil Qi standard wireless charging module
Product Description
1. Input voltage:DC5V ~ 9V / 1.5 ~ 2A, if the voltage exceeds the range, alarm and stop charging
2. Charging current:1000mAh
3. Charging power:Up to 10W
4. Conversion efficiency:More than 73%
5. Transmission distance:The recommended distance between receiving and sending is 2mm ~ 4mm
6. Standby power consumption:The average power consumption is less than 30MW
7. Over temperature protection:When the temperature is higher than 53 ℃, it will stop charging automatically for 1 minute, and then recharge after the temperature drops
8. Over current protection:When the output current is greater than 1.8A, the charging will be stopped automatically to prevent damage to the charger
9. Standard:Qi wireless charging standard
11. Is foreign matter detection supported Support
12. High efficiency of temperature protection (over temperature, over-voltage and over-current) (fast charging speed and low temperature during charging
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
