Product Description
Manufacturer direct sales 15w10w7.5w5w wireless charging transmitter PCBA Qi certification stable wireless charging(Accept customization)
Product Description
Product parameters:
1. Input voltage: DC5V-9V
2. Input current: 5V/2A,9V/1.67A
3. Output voltage: DC5V-9V
4. Output current: 0.5A-1.67A
5. Charging power: Up to 10W
6. Conversion efficiency: More than 76%
7. Transmission distance: The maximum is 10 mm, and the recommended receiving and sending distance is 2 mm ~ 4 mm
8. Executive standard: Qi wireless charging standard
9. Working frequency: 100~205KHZ
10. Charging interface: TYPE-C/MIRCO

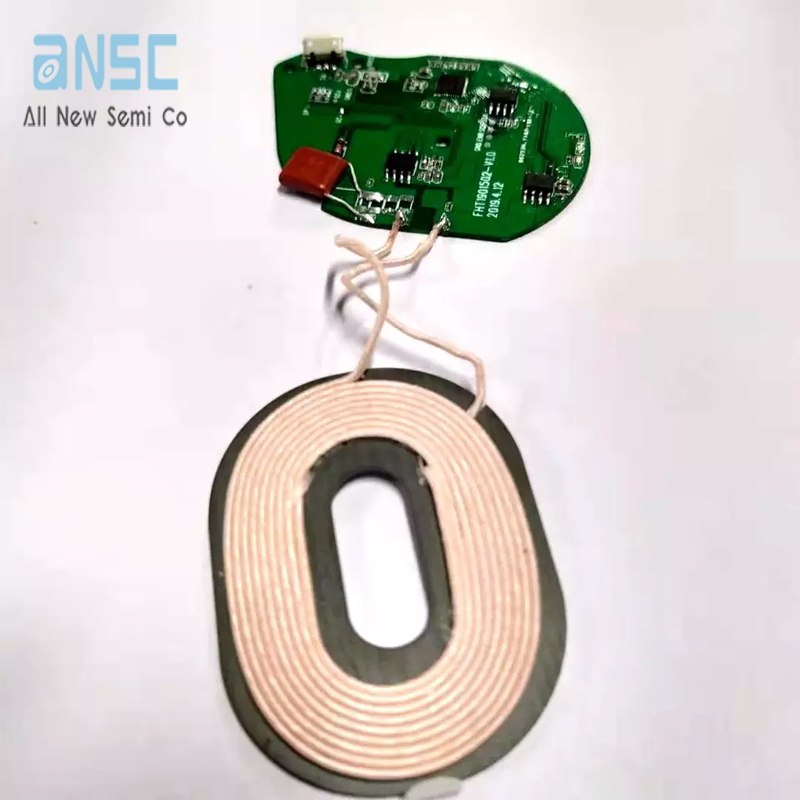

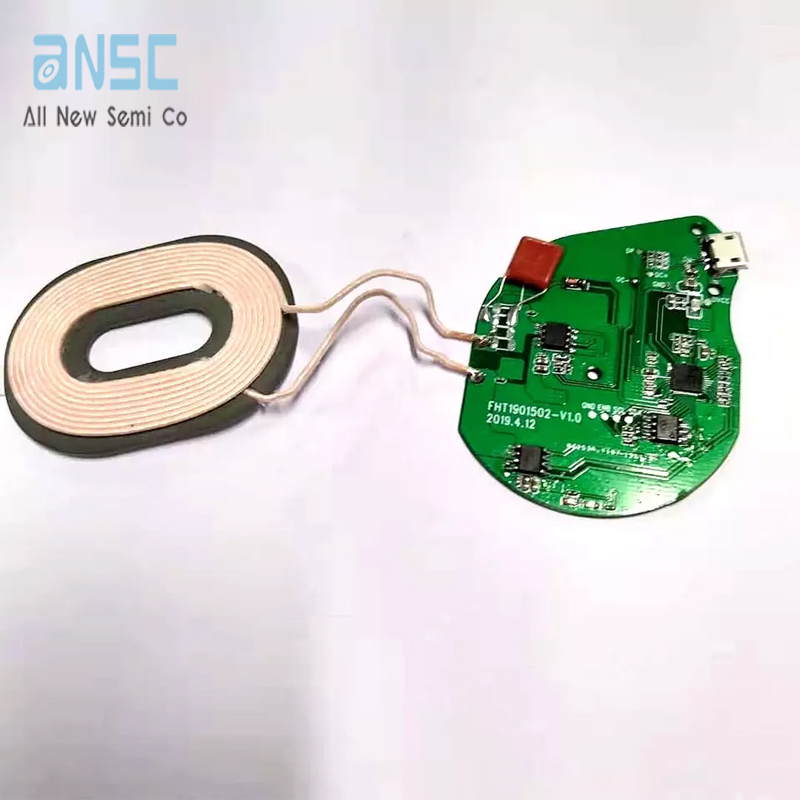

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
