Product Description
15W high integrated mobile phone wireless charging scheme module
PCBA board module high power customization
| Parameters of wireless charging scheme: |
| 1. Input voltage : 12V 2A |
| 2. Wireless charging output: 12v1.2a or 11v1.4a |
| 3. Wireless charging frequency: 100-200khz |
| 3. PCB size: 32 * 15.5mm |
| 4. Coil size: 50mm circle |
| 5. Charging efficiency > = 70%. |
| 6. Charging distance: 2-8mm |
| 7. Main chip brand: independent full integration |
| 8. Version configuration: the latest high configuration |
| Other instructions: |
| 1. This group of mould preparation metal foreign body detection function, charging intelligent indication, high charging efficiency, stable and non heating. |
| 2. The materials are solid and exquisite. The main components are all imported brand configuration, and the pure copper coil is imported from Korea. The magnetic sheet is made of WPC certified standard material. |
| Special instructions: |
| This 10W fully integrated single-chip wireless charging module, micosusb or type-C power port, suitable for direct use of most products. |
| The hardware and software configuration qualification of the chip can pass the certification ability, welcome to customize! |

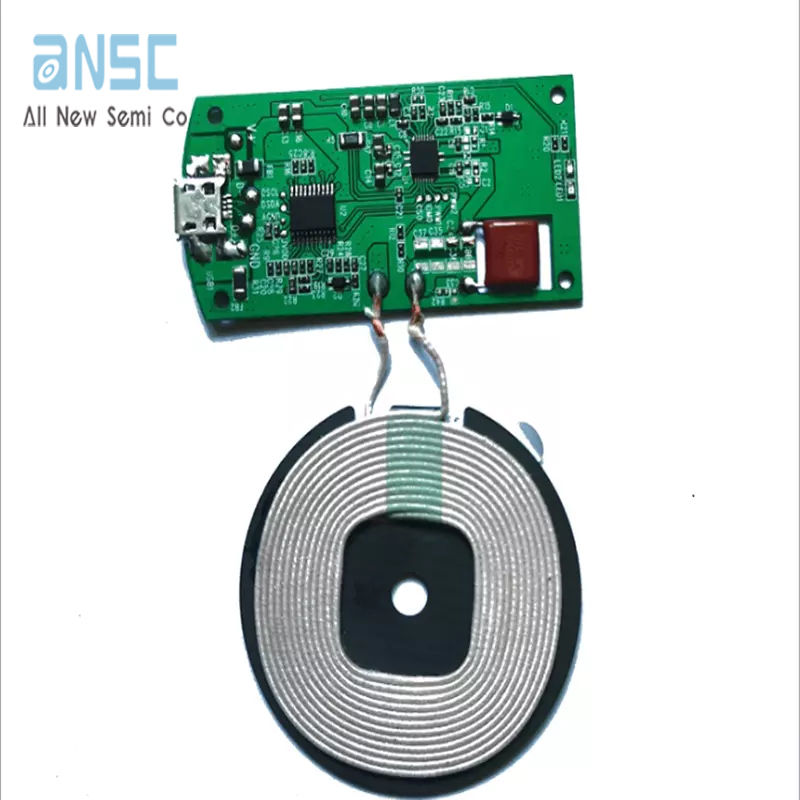

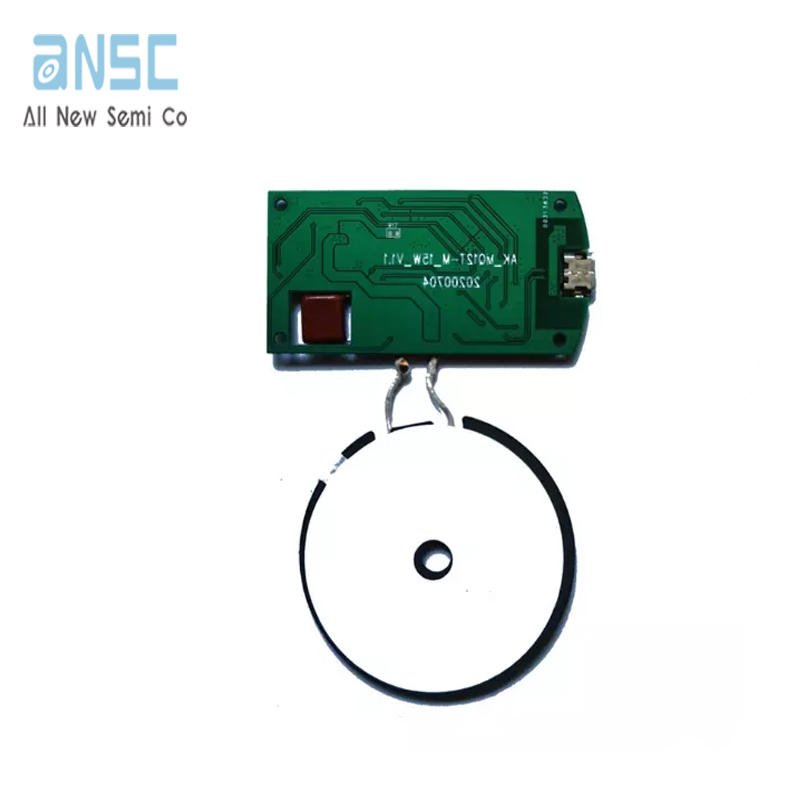

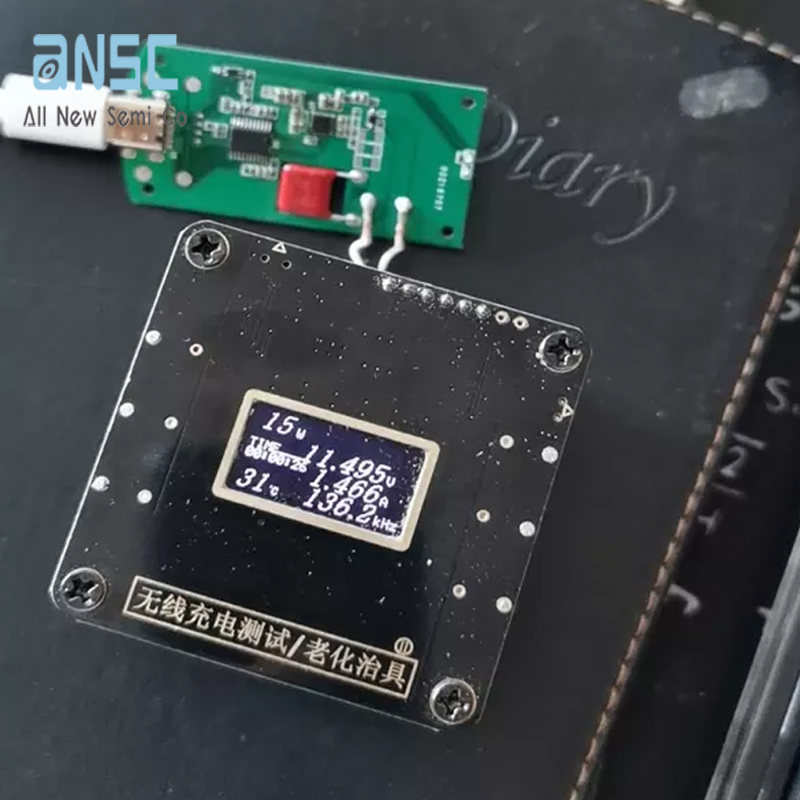

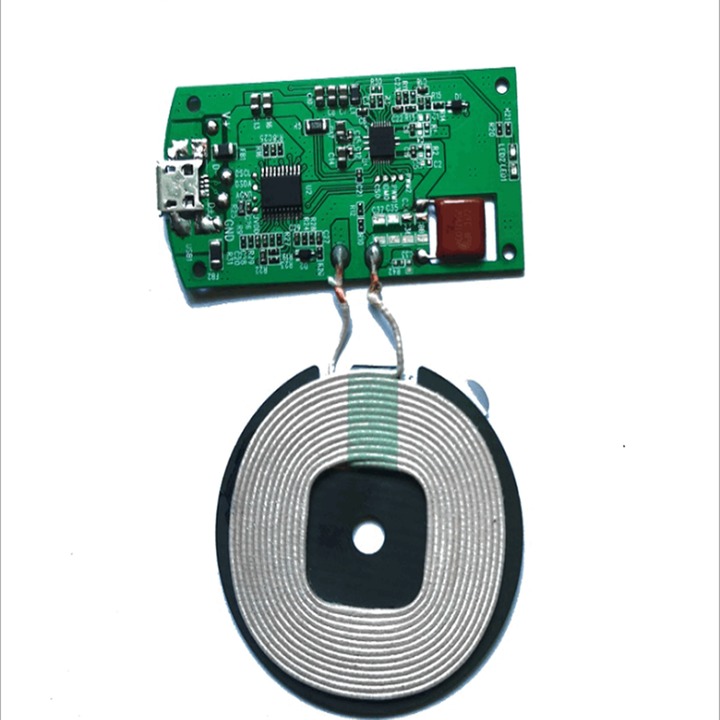

Actual image of the product
