Product Description
The first mock exam is dual 10WX2 LED touch dimming desk lamp 10W wireless charging module PCBA customization(Accept customization)
| Input: | 12V3A |
| Output: | LED desk lamp power 2x10W |
| Wireless charging power 10W | |
| Performance parameter | |
| a. LED desk lamp | |
| Input voltage | 12V |
| Maximum power | 10Wx2 |
| 96 | 4014LEDx2 |
| Central illumination | 1200LUX |
| Luminous flux | 600LMx2 |
| Color temperature | 2800k 4500k 5000k 6000k |
| Life | 50000 |
| b. 15W wireless charging | |
| Input voltage: | 12V |
| Wireless charging output | 10W/7.5W/5W |
| Protection function: | Over current protection, over temperature protection, FOD metal foreign matter protection |
| Transmission distance | ≤8mm |
| Charging efficiency | ≥76% |
| [Instructions for use] |
| 1. Power button, short press to turn on and turn off the lamp |
| 2. V button, long press to lower the brightness of the table lamp |
| 3. A button, long press to increase the brightness of table lamp |
| 4. O button, short press to adjust the color temperature, a total of 4 levels of color temperature adjustable |
| 5.1 h key, short press to open and close, 1 hour to shut down |
| The left and right buttons are completely controlled independently |

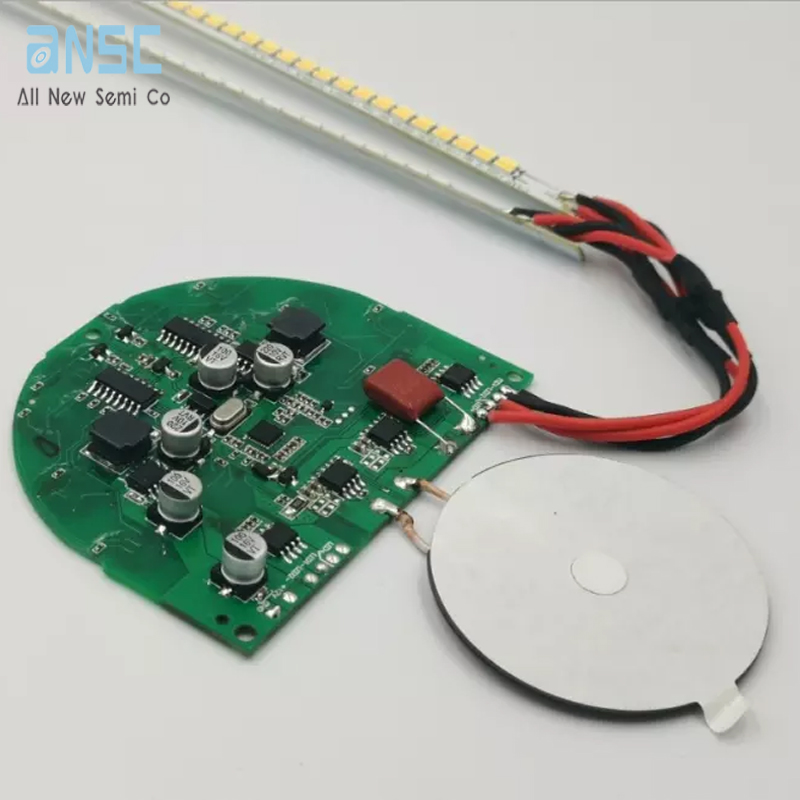

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
