Product Description
Wireless charging PCBA desktop coffee table desk 12mm wireless charging
board 10w15w wireless charger(Accept customization)
| 10W fast charging parameters: | |
| Interface: | Lead wire |
| Light indication: | |
| Launch distance: | 5-12mm |
| Input: | 5V-2A 9V1.67A |
| Wireless charging and output: | 5W 10W |
| Boost efficiency: | 93% |
| Working frequency: | 110-205KHZ |
| Wireless charging conversion efficiency: | 75% |
| Compatible with Qi standard: | WPC1.1 |
| Protection measures: | Over current, over temperature and short circuit protection |
| 15W fast charging parameters: | |
| Interface: | type-c |
| Light indication: | LED |
| Launch distance: | 5-12mm |
| Input: | 5V-2A 9V1.67A 12V1.5A |
| Wireless charging and output: | 5W 10W 15W |
| Boost efficiency: | 93% |
| Working frequency: | 110-205KHZ |
| Wireless charging conversion efficiency: | 75% |
| Compatible with Qi standard: | WPC1.1 |
| Protection measures: | Over current, over temperature and short circuit protection |

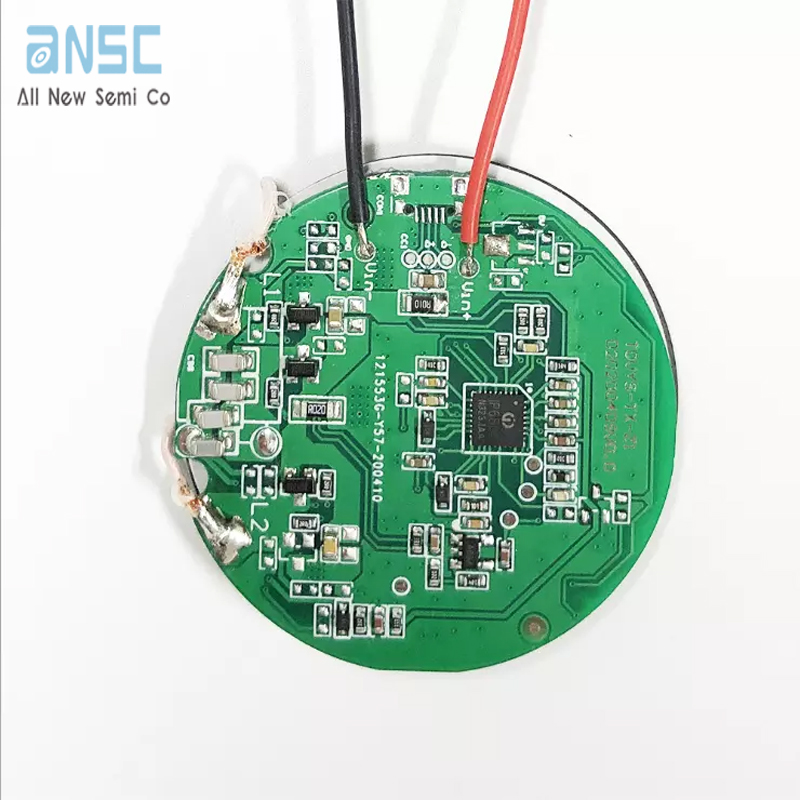

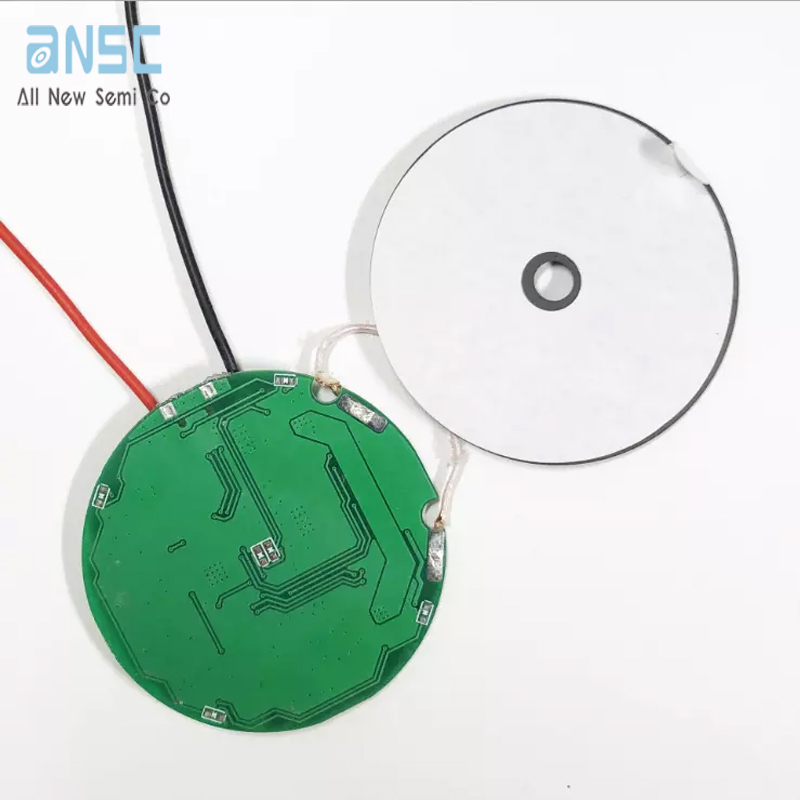

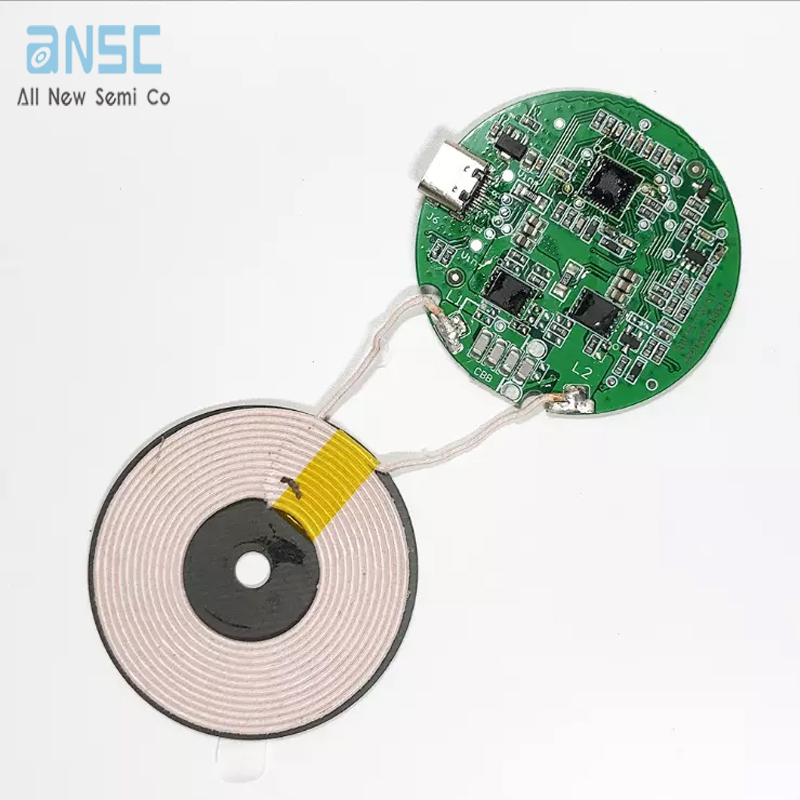

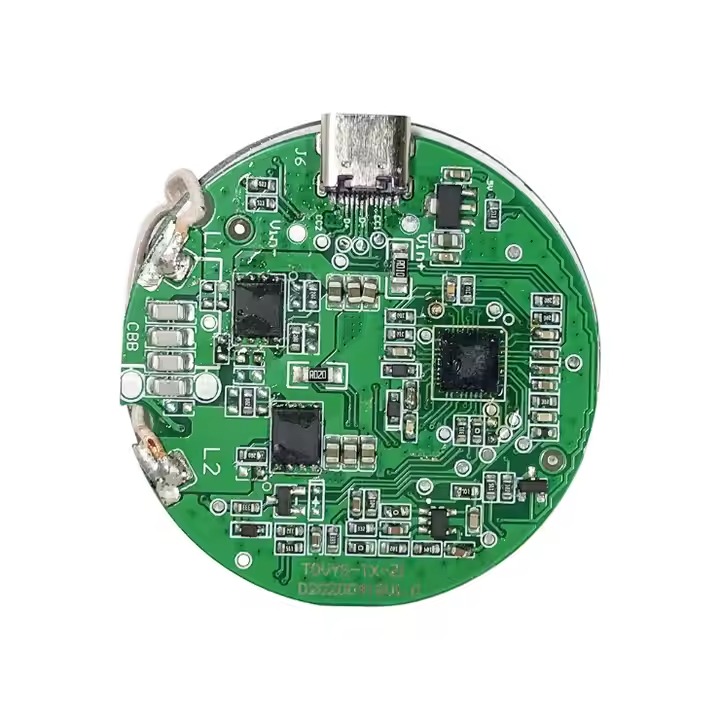

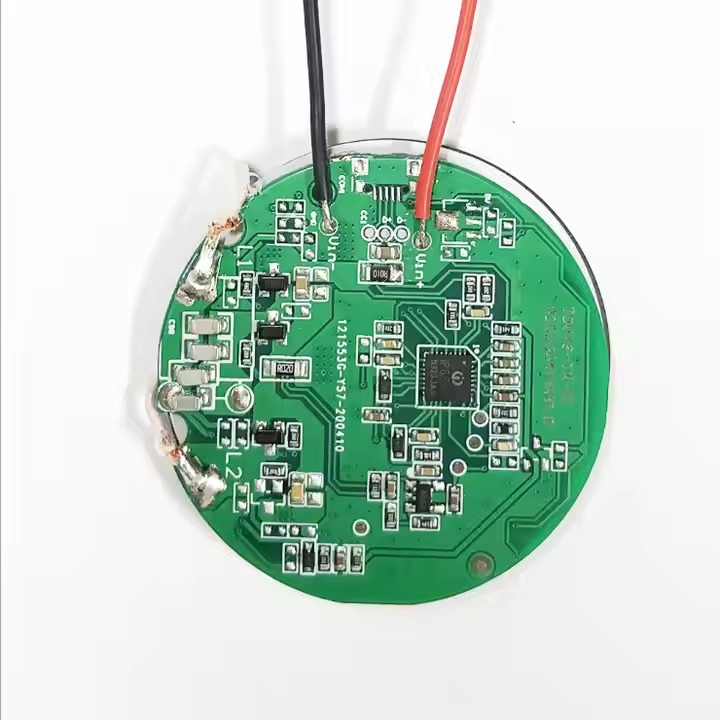

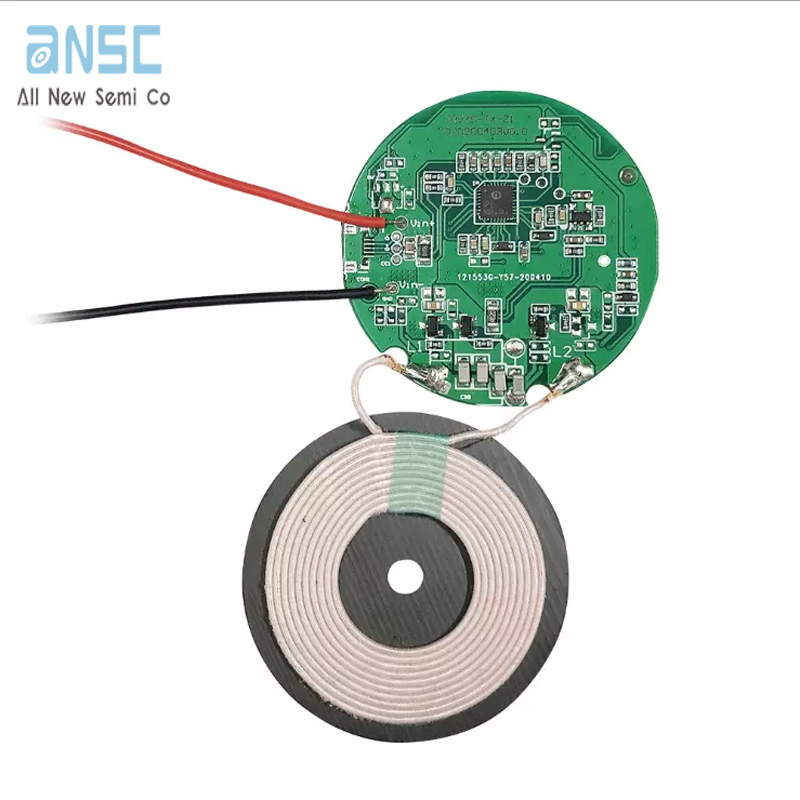

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
