High quality High stability Qi 15W 3 coil module mobile phone wireless charging transmitter motherboard
Product Description
1, Basic parameters
Product standard: WPC 1.2.3certified
Qi ID:2166
Input: Max 12V 1.8A

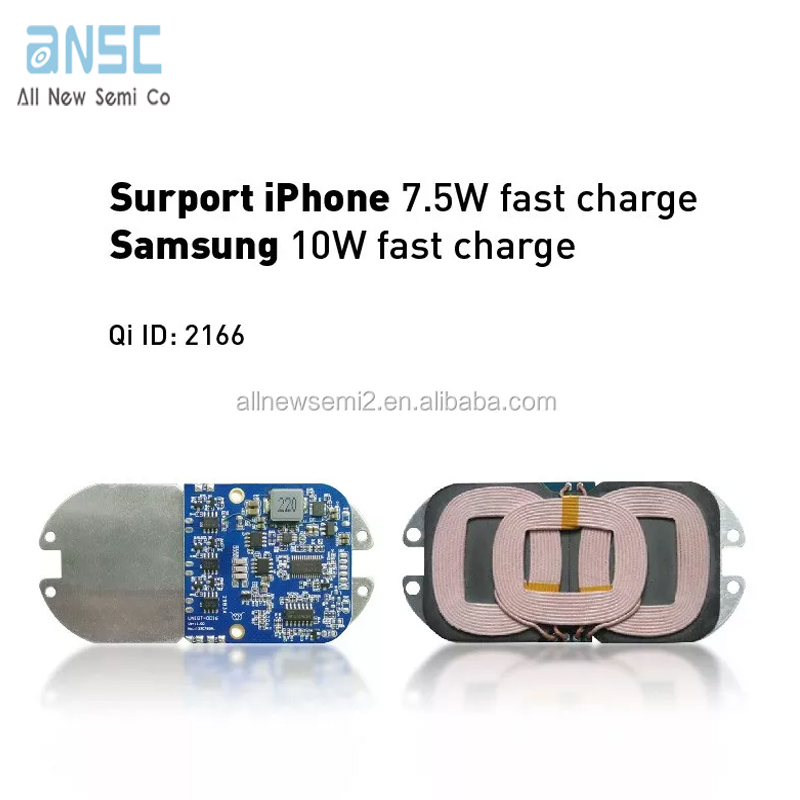

Output: support Qi 15W / Samsung 10W fast charging / Qi 5W
Conversion efficiency: 70% ± 5%
Best charging distance: 3mm

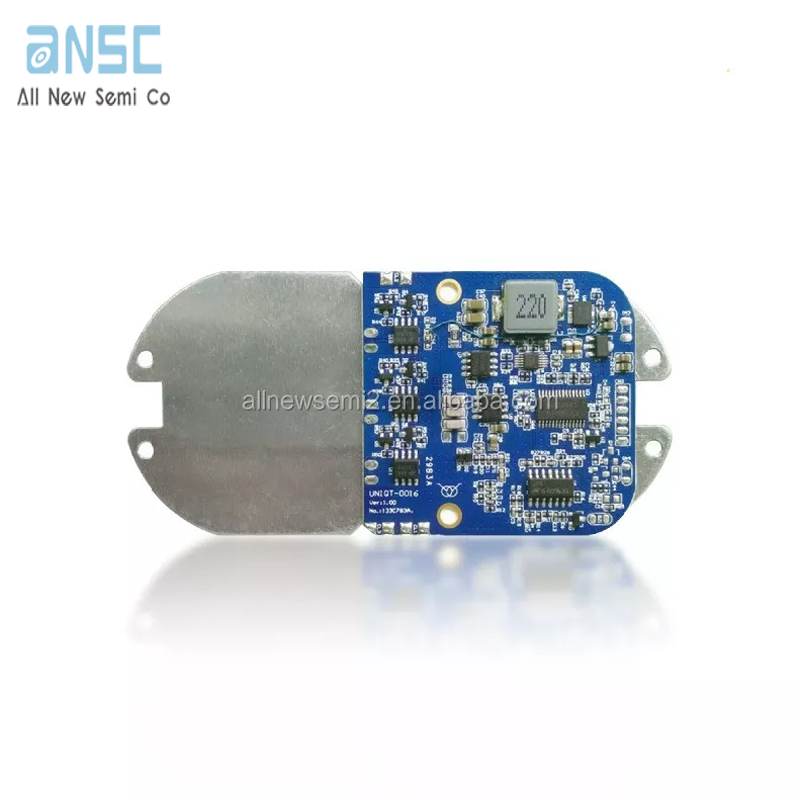

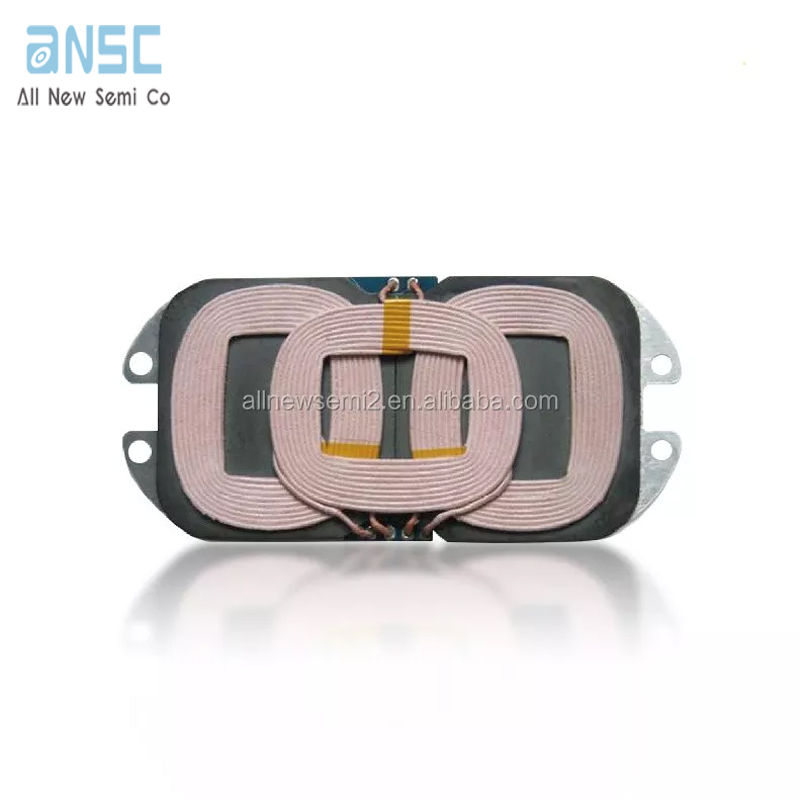

Size: PCBA: 52 * 53.5 * 4 mm / coil + magnetic separator: 95 * 53 * 3.9mm / aluminum plate: 107.4 * 50 * 1.0mm
Weight: 60 ± 5g
2, Product advantages
WPC 1.2.4 Qi latest version: compatible with all versions of WPC 1.2.4 and all kinds of Qi devices on the market perfectly!
High cost performance: high quality, high efficiency, low temperature, low resistance, low price, with over temperature / over voltage / over current / short circuit protection!
Free Qi certification: using our module can help customers to pass Qi certification for free!
15W EPP certification: up to 15W output, charging faster, effectively reducing the charging time!
FOD function: with FOD foreign body detection function, intelligent protection of mobile phone and charging board!
Multi function module: support Qi 15W / Samsung 10W fast charging / Qi 5W, fully support all kinds of mobile phone fast charging and ordinary charging on the market!
Product liability insurance: all our products are covered by product liability insurance, which can protect the rights and interests of our company and customers, so that customers can buy and use them at ease!
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
