Custom / OEM / ODM Robot Wireless Charging Solution 24v 36v 48v 100w-3000w wireless charging, battery robot wireless charging module
Product Specification
| Applicable battery: 12V / 24V / 36V / 48V. |
| Transmission principle: magnetic coupling resonance. |
| Input voltage: 180VAC-260VAC. |
| Output power: 100W-3000W. |
| Output voltage: customized. |
| Output current: customized. |
| Efficiency:> 80%. |
| Frequency band: 30kHz-50kHz. |
| Distance: 30-60mm. |
| Size: customized according to product structure. |
Product Feature

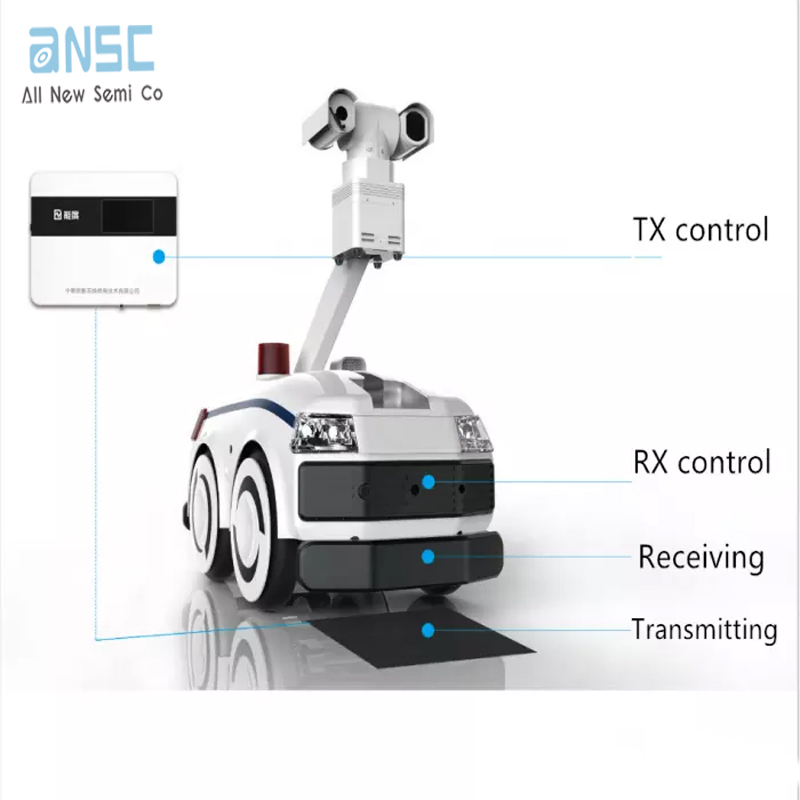

| This wireless charging module is composed of a transmitting end and a receiving end. |
| The receiving end is placed in the robot and is linked to the energy storage equipment and the main control unit. |
| The transmitting end is externally connected to the mains, |
| When charging is needed, the robot returns to the charging area, and the transmitting end starts charging after the receiving end is successfully matched. |
This is a customized product, please contact us for price and more details.
