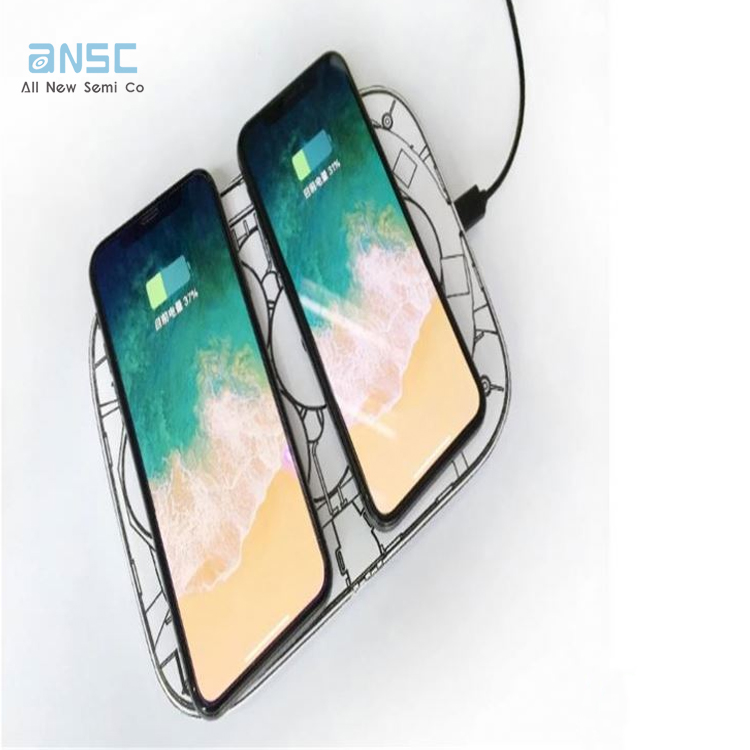

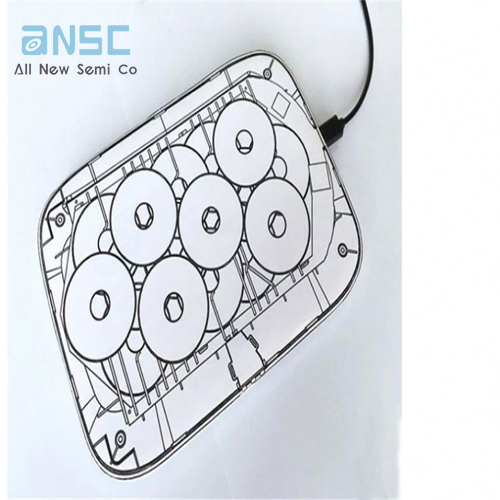

| OEM ODM customized transmitter module mult-coil Qi wireless charger module charging in any position |

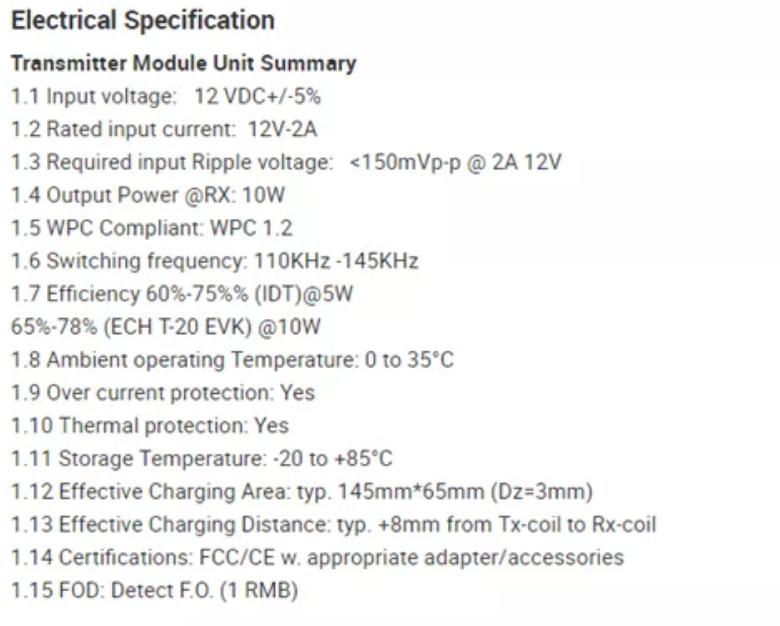

| Product Specification: |
| Use:Mobile Phone |
| Type:Electric |
| Place of Origin:Guangdong, China |
| Coil:16 coil |
| Compatible:QI Standard 1.2 |
| Input:12V/2A |
| Output:10W |
| Switching frequency:110KHz -145KHz |
| Over current protection:Yes |
| Certifications:FCC/CE |
| Warranty:12 Months |
| Dimension:L205mm*W150mm*H62mm |
| Required input Ripple voltage:<150mVp-p @ 2A 12V |
|
| Product Feature |

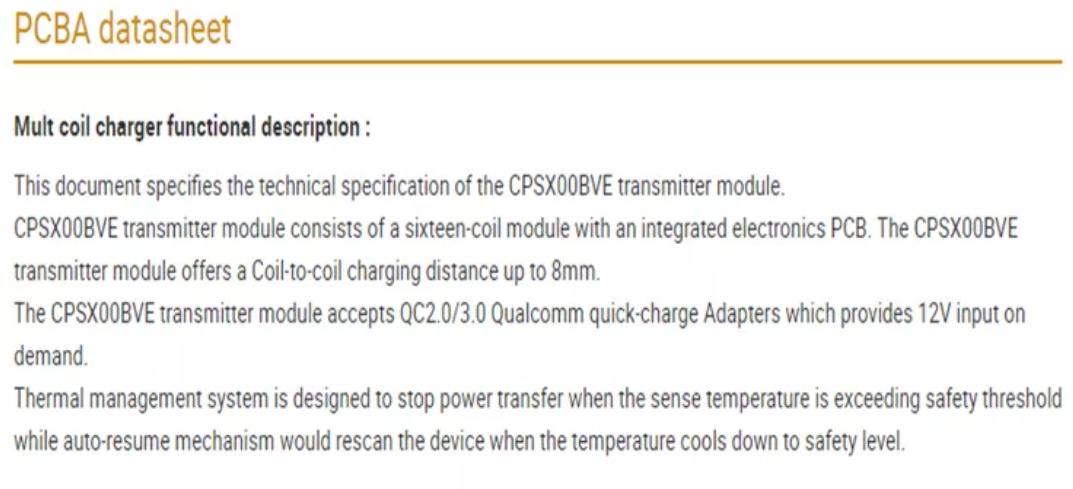

| This document specifies the technical specification of the CPSX00BVE transmitter module. |

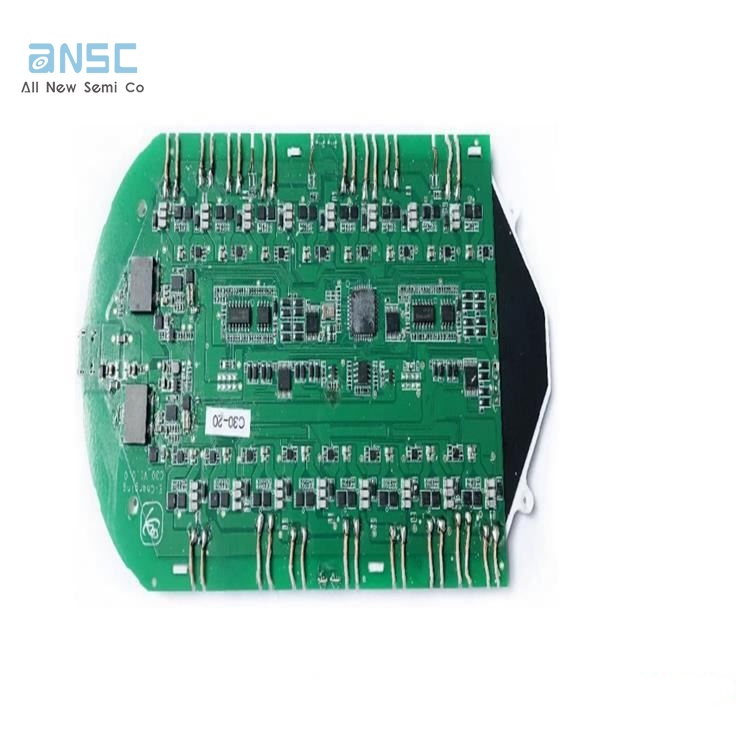

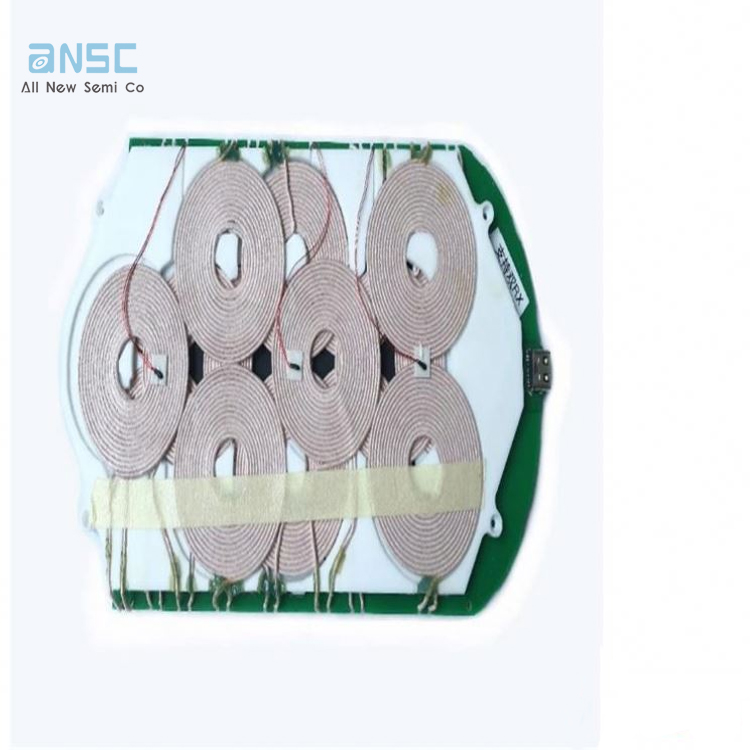

| CPSX00BVE transmitter module consists of a sixteen-coil module with an integrated electronics PCB. The CPSX00BVE transmitter module offers a Coil-to-coil charging distance up to 8mm. |
| The CPSX00BVE transmitter module accepts QC2.0/3.0 Qualcomm quick-charge Adapters which provides 12V input on demand. |
| Thermal management system is designed to stop power transfer when the sense temperature is exceeding safety threshold while auto-resume mechanism would rescan the device when the temperature cools down to safety level. |
