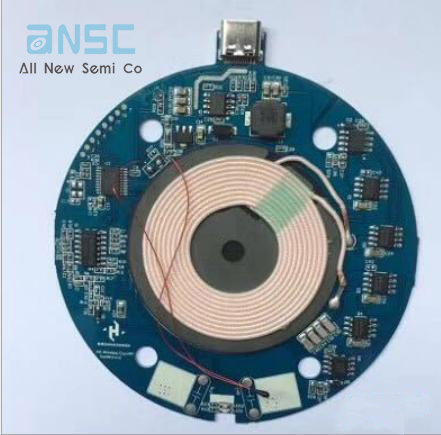

Customized / OEM / ODM fast wireless charging PCBA solution

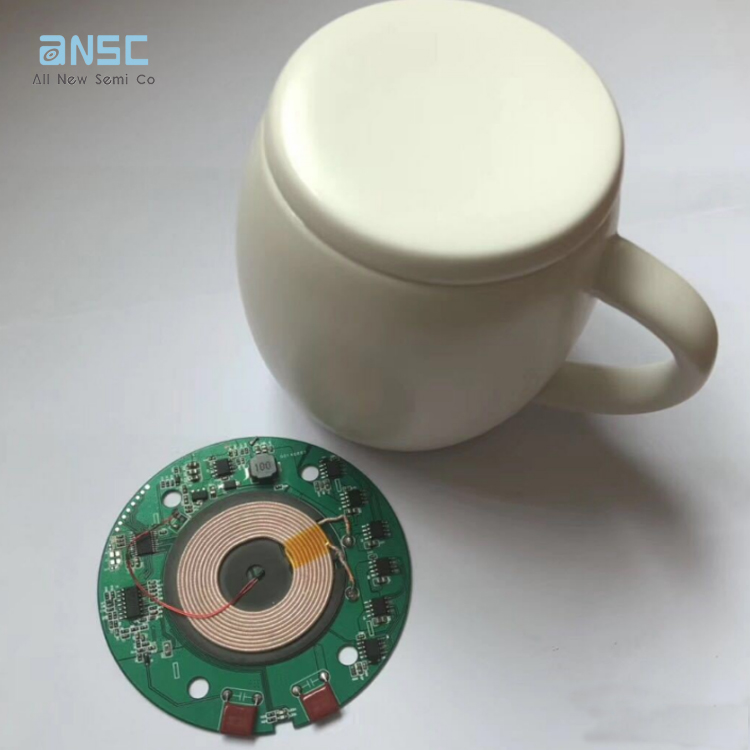

Transmitter module for intelligent heat preservation cup

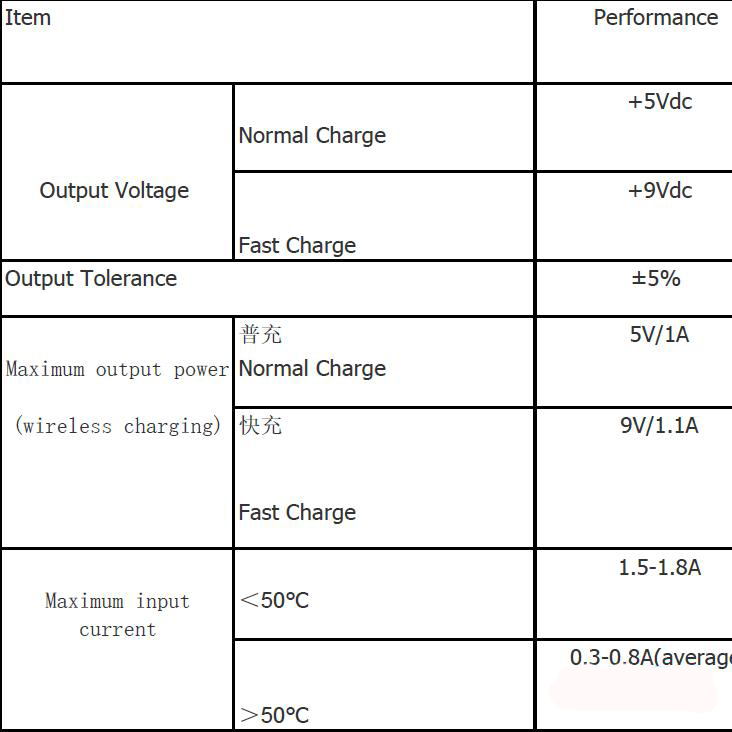

Product Specification:
(1)Input Voltage : 12Vdc±5%.
Input Voltage range:12Vdc±5%.
(2)Input Current :2A(max)
In the case of full load,Input 12Vdc the highest input current 2A.
(3) Stand-by Power Consumption:
In the case of the standby,Input 12Vdc,the loss is lower than 0.3W.
(4)Dynamic Power Lock:
Input power belong to the weak power souce ,( Input power is not enough), the transmitter must offer the power output.
(5)Weight:28g
Product Feature :
(1)10W digital demodulation wireless electrical,
(2)function and physical characteristics of fast charge transmitter,
(3)the transmitter have QC2.0 / QC3.0 recognition function,
(4)compatible with WPC - Qi V1.2.3 standards,
(5)support for transmitting and receiving bi-directional.
