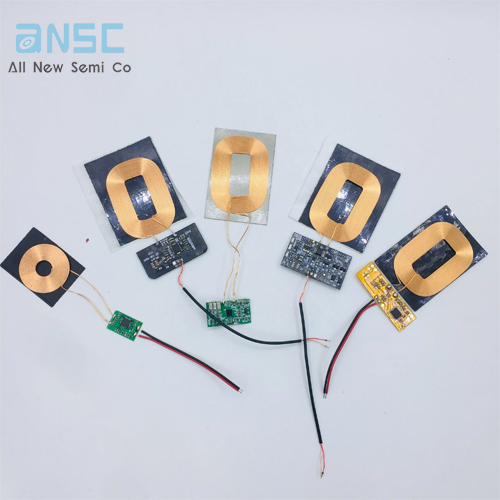

| Can be OEM ODM customized: 15w Wireless receiver scheme |
| Product Specification: |
| Model Number:ATMP1505-KLGC ( Matching-Transmitter module→ ATMP1505-KLGC) |
| Use:Mobile Phone |
| Type:Electric |
| Place of Origin:Guangdong, China |
| Input voltage:12V/9V DC+/-5% |
| Rated input current:5V-2.0A/9V-1.5A |
| Required input Ripple voltage:<150mVp-p @ 1.5A 5V |
| Output power:15W |
| Switching frequency:Working For QI 110-205KHZ |
| Ambient operating Temperature:-10 to 45°C |
| Over current protection:Yes |
| Thermal protection:Yes |
| Storage Temperature:-20 to +85°C |
| Product Feature |
| The ARMP1505-KLGC is a high efficiency, Qi-compliant wireless power receiver targeted for applications up to 15W. Using magnetic inductive charging technology, the receiver converts an AC power signal from a resonant tank into a requlated DC output voltage. setting with 9V and 12V. The integrated, low RDS (ON) syn chronous rectifier and ultra-low dropout offer high efficiency making the product ideally suited for battery-operated applications. |
| The ARMC15W-KL1 includes an industry-leading 32 bit ARM@ Cortex@ MO processor offering a high level of programmability. In addition, . the device features proprietary alignment guide information for optimum coupling between the receiver and the transmitter, a programmable current limit, and a patented over-voltage protection scheme eliminating the need for additional capacitors generally used by the receivers, minimizing the external component count and cost. Together with the P9242-R transmitter (Tx), the ARMC15W-KL1 is a complete wireless power system solution for power applications up to 15W. |
| The ARMC15W-KL1 is available in a 52-WLCSP package and it is rated. for a 0 to 85C ambient operating temperature range. |
