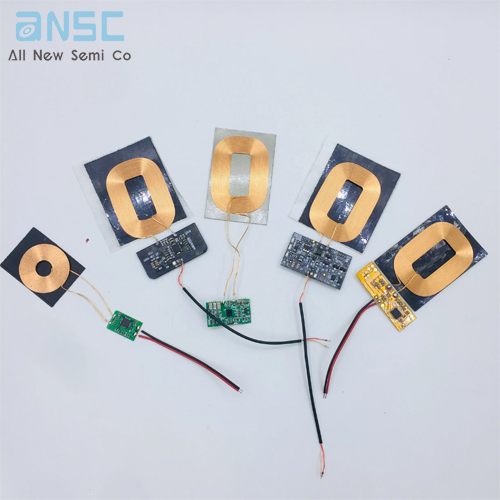

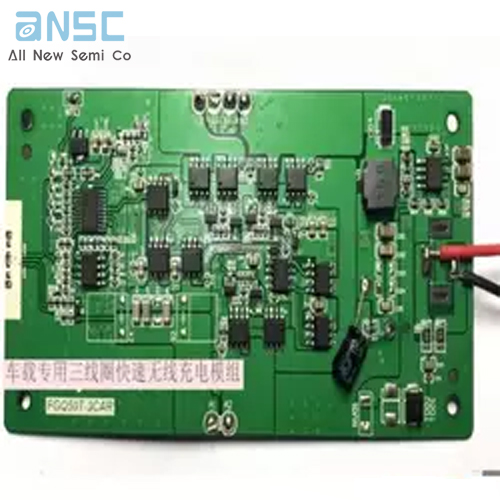

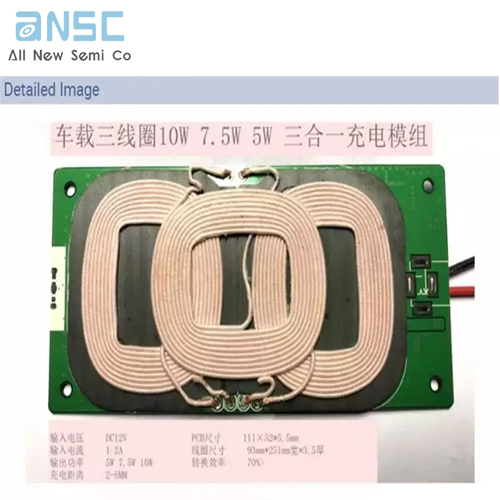

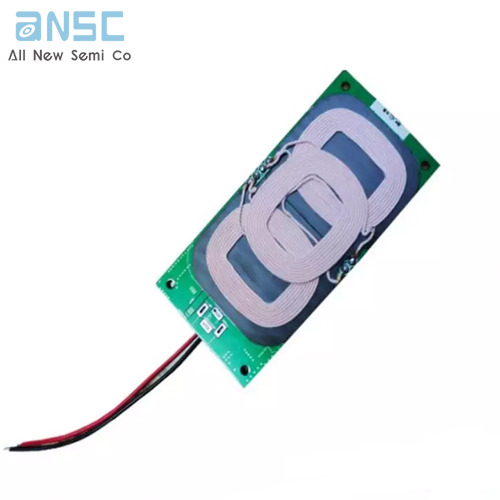

OEM ODM Customized QI certification 12V input 3coil wireless charger PCBA can be customized for wireless charging smartphone

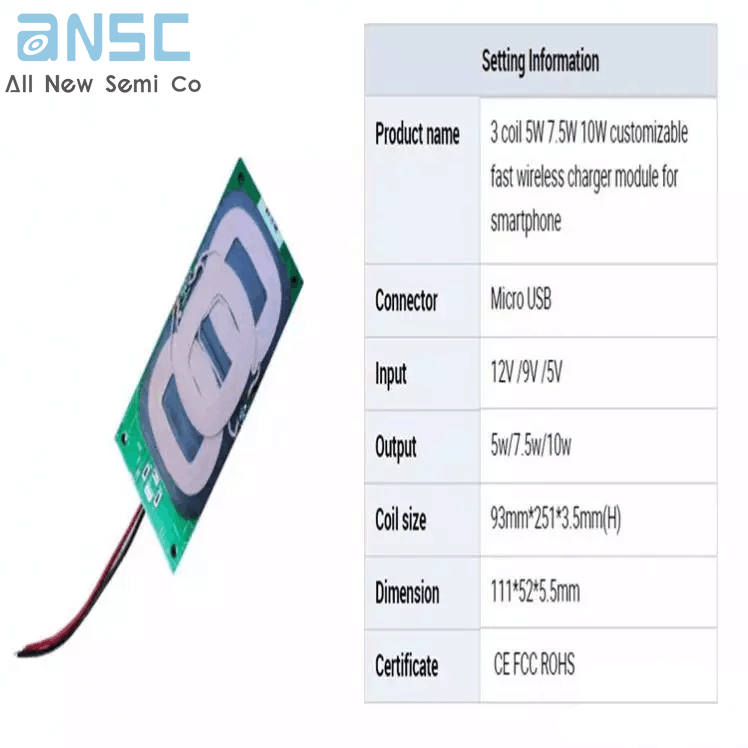

Product Specification:
Use:Mobile Phone
Type:Electric
Place of Origin:Guangdong, China
Port:1 x USB
Solution:Qi stand

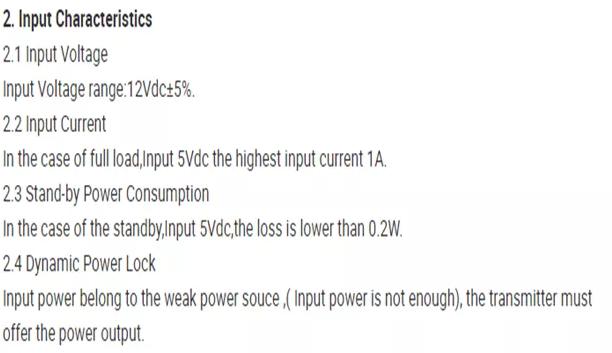

Input:12VDC±5%.

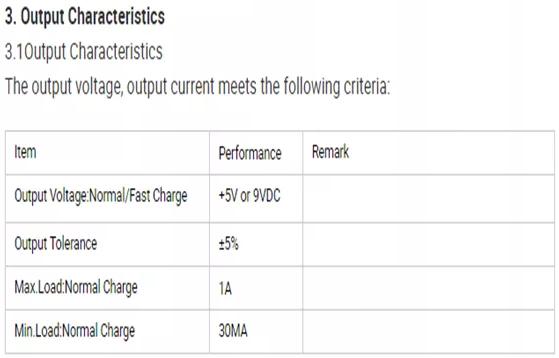

Output:5w/7.5w/10w
PCBA thickness:2.5 mm
Certificate:CE FCC Rohs
Coil size:93mm*251*3.5mm
Warranty:12 Months
PCBA Dimension:111*52*5.5mm
Energy Conversion:70%
Charge distance:2-6mm

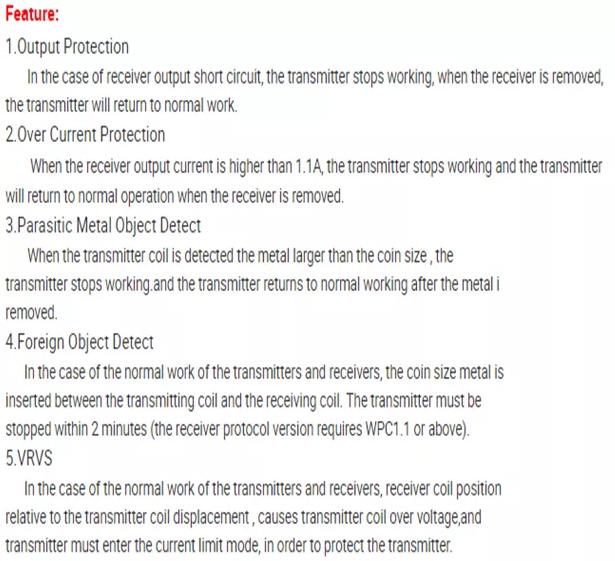

Product Feature

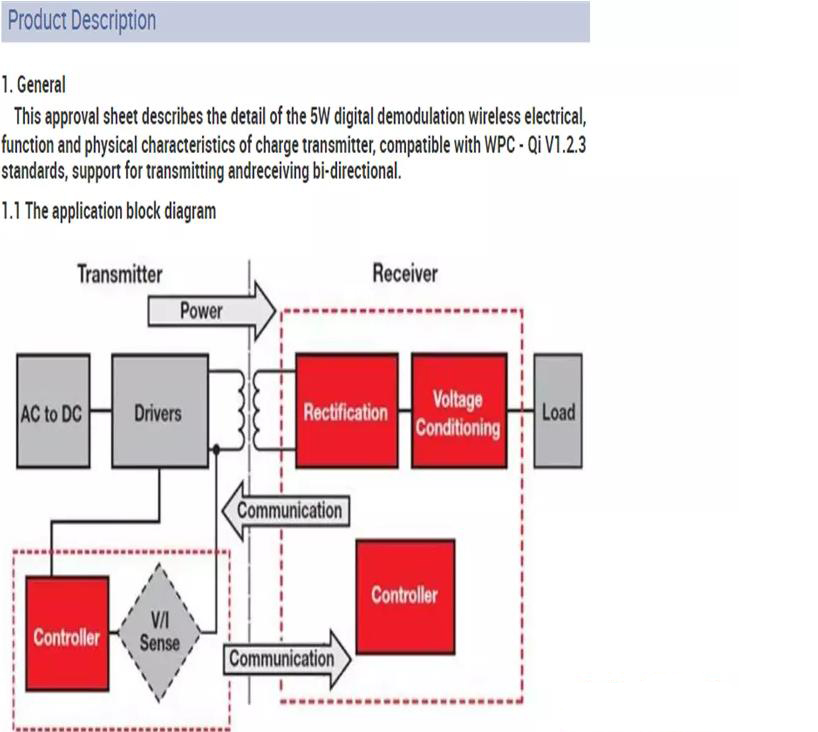

This approval sheet describes the detail of the 5W digital demodulation wireless electrical,
function and physical characteristics of charge transmitter, compatible with WPC - Qi V1.2.3
standards, support for transmitting andreceiving bi-directional.
