Product Description
| Type# | Description |
| ANSC PART# | ANSC- DS3691N |
| Ihs Manufacturer | Original |
| Package Description | PLASTIC, DIP-16 |
| Additional Feature | CAN ALSO BE USED AS SINGLE ENDED DRIVER; CONFIGURABLE INTERFACE STANDARDS |
| Differential Output | YES |
| Driver Number of Bits | 2 |
| High Level Input Current-Max | 0.00004 A |
| Input Characteristics | STANDARD |
| Interface IC Type | LINE DRIVER |
| Interface Standard | EIA-423; EIA-442 |
| Length | 19.304 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Out Swing-Min | 2 V |
| Output Characteristics | 3-STATE |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 30 mA |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Transmit Delay-Max | 300 ns |
| Width | 7.62 mm |

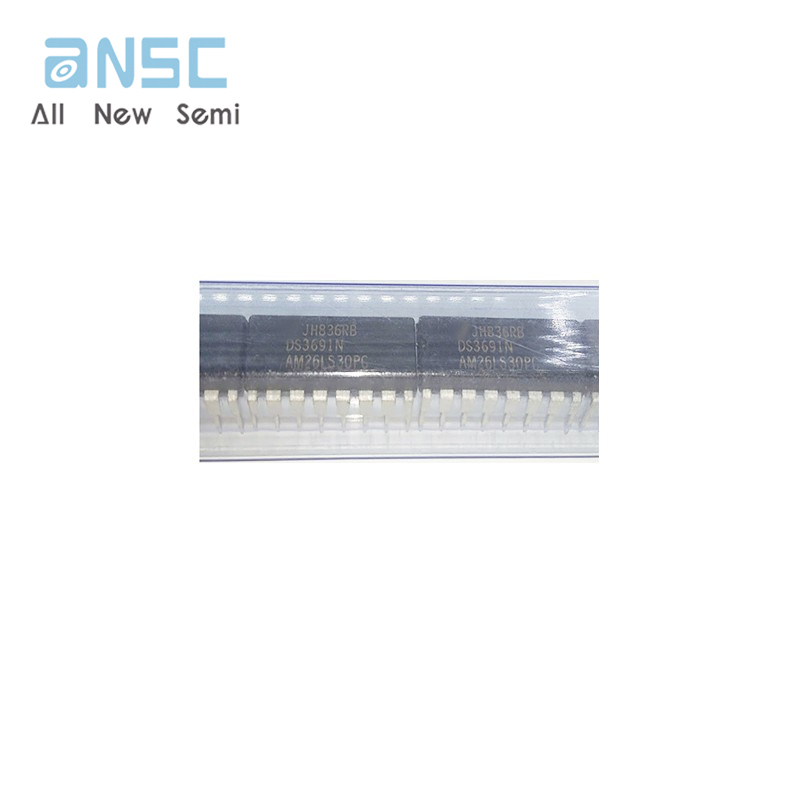

Actual image of the product

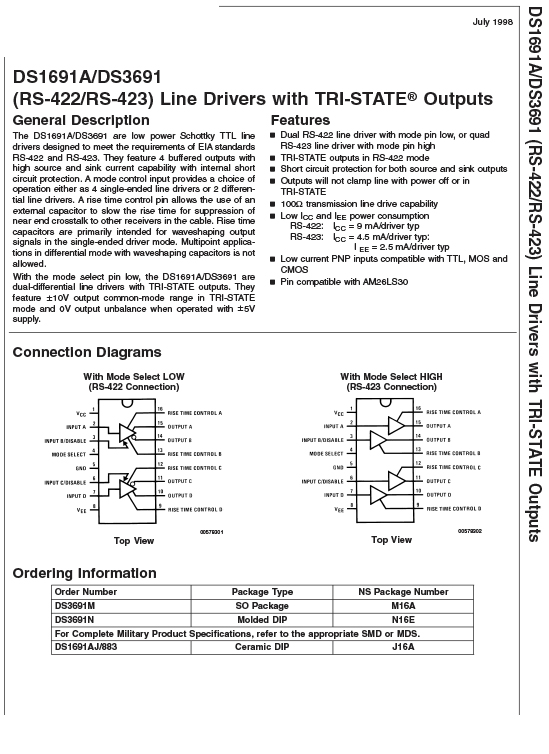

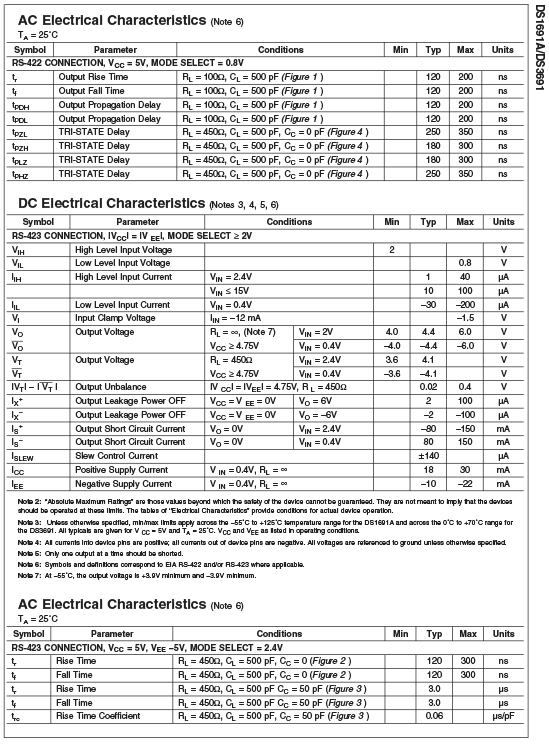

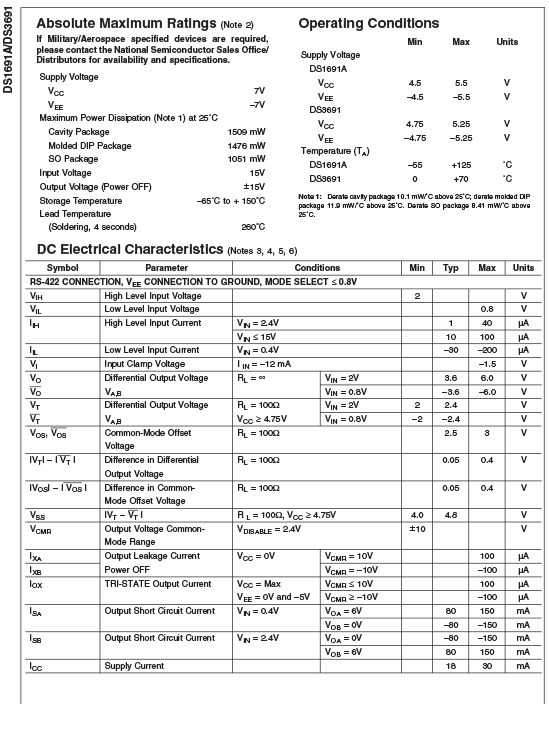

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
