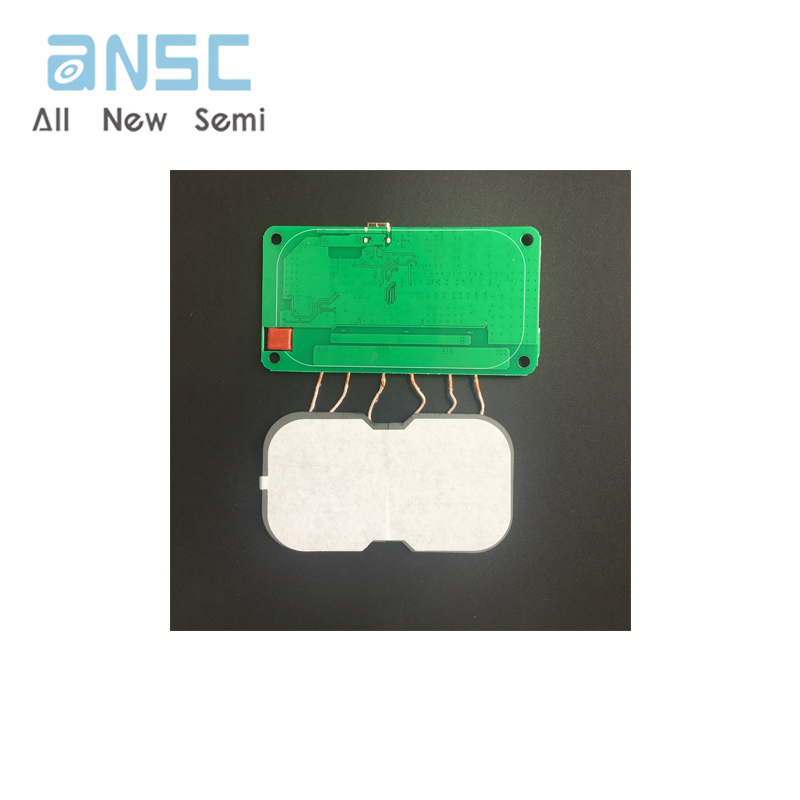

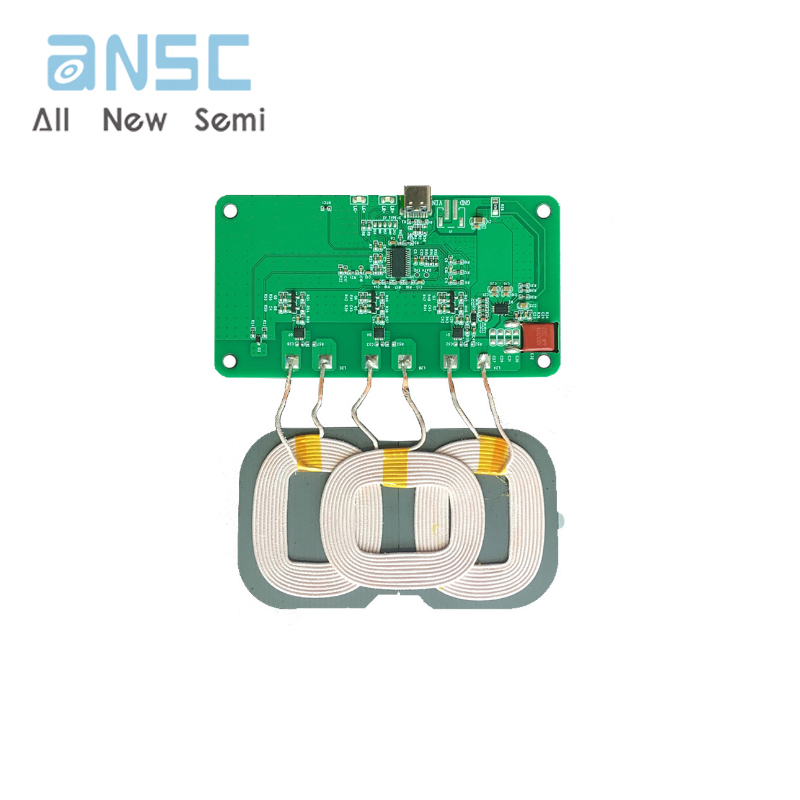

3-coil 15W mobile wireless charger, fast charging and transmitting module, PCBA circuit board, car furniture modification plan
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: EPP certification standard
Support mainstream mobile phone fast charging protocols such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance control chips, power management chips, and low-temperature charging throughout the entire process

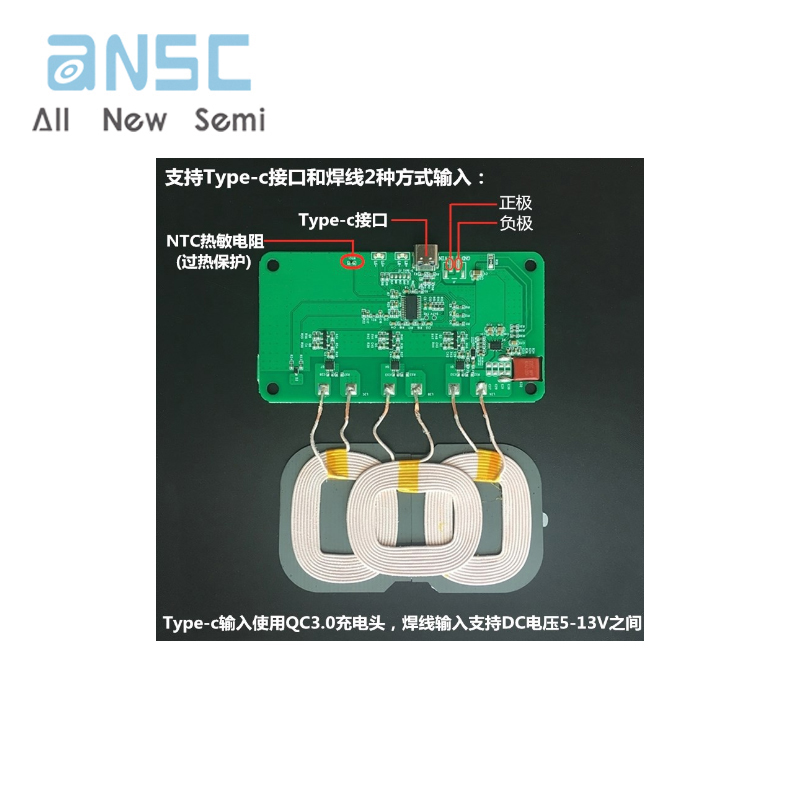

Input method: QC3.0 charging head or soldering cable (12V1.5A-2A power adapter)

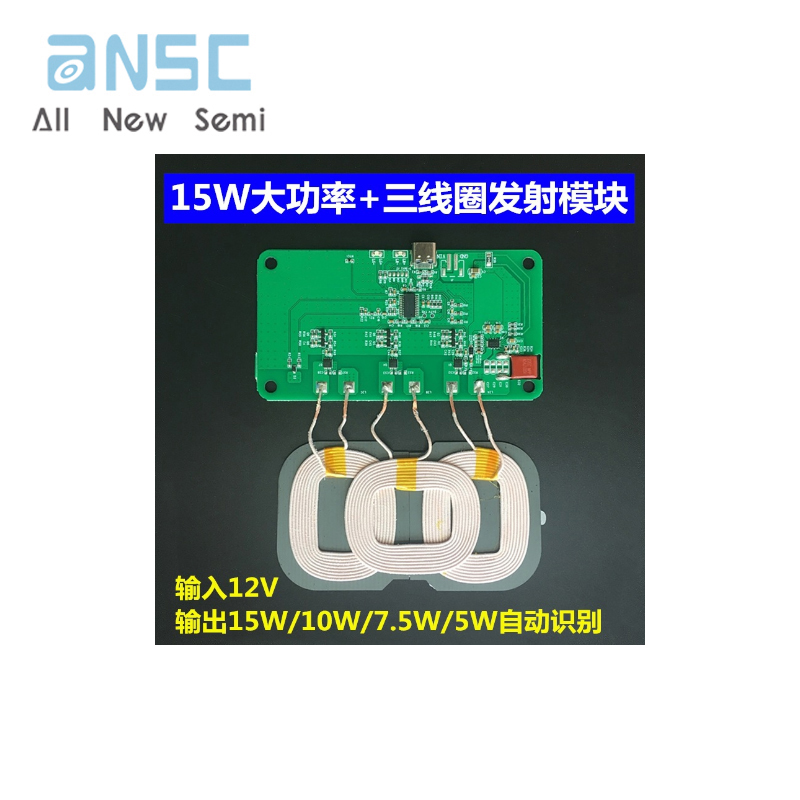

Output power: 15W/10W/7.5W/5W automatic recognition
Supports peak power output of 15W
Efficiency is around 75% -85%
Sensing distance<8mm
Working frequency: 100-200Khz
Supports dynamic energy balance with quadruple protection functions including overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)

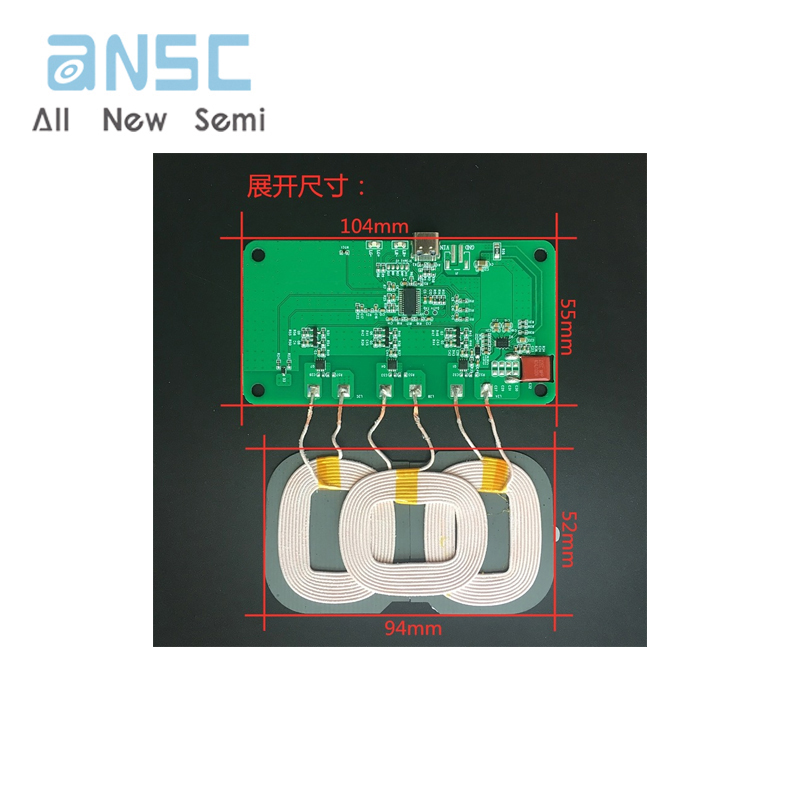

PCBA board size: length 104mm * width 55mm * thickness approximately 6.5mm
Dimensions of magnetic isolation coil: length 94mm * width 52mm * thickness 3.4mm
