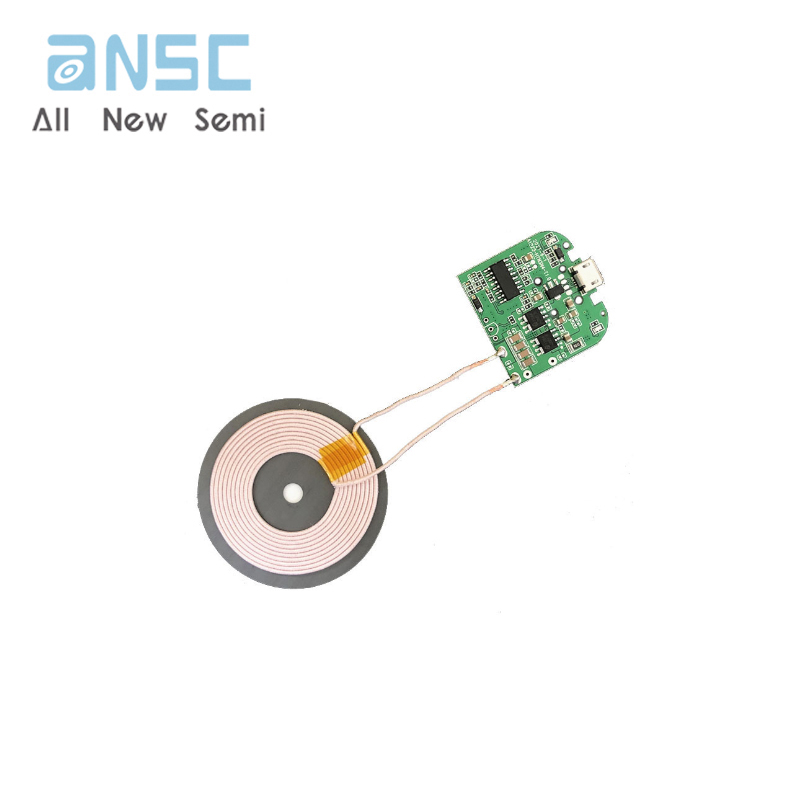

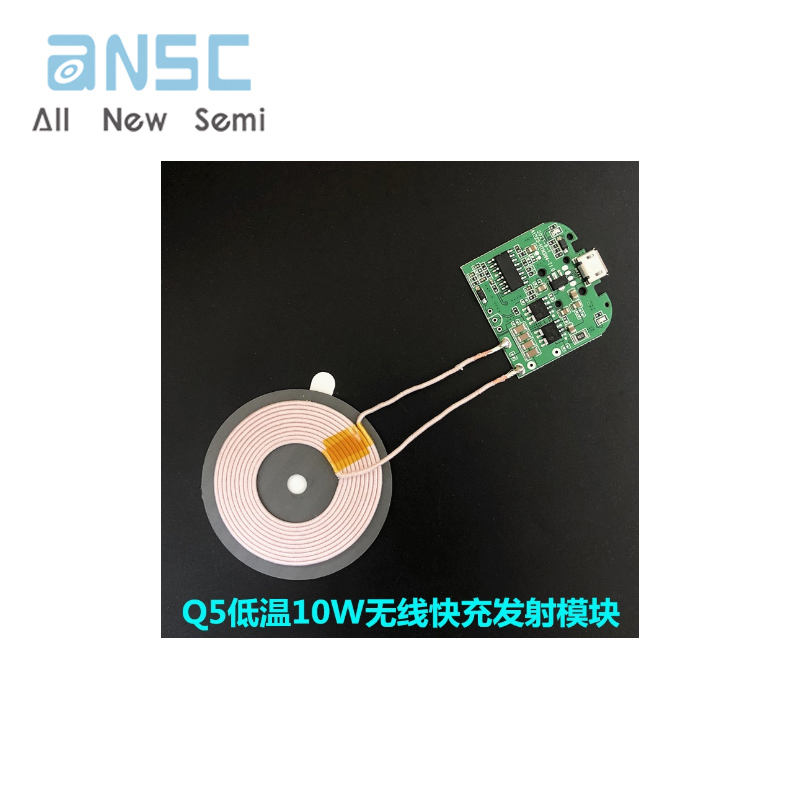

Q5 low-temperature 10W mobile wireless charger base 02A transmitter module PCBA home modification
Product Feature:
Compliant with WPC V1.1 wireless charging specifications
Product standard: QI
Supports wireless charging protocols for smartphones such as Samsung, iPhone, Huawei, Xiaomi, etc
Built in MCU, 12 bit high-precision ADC, communication decoding
Input voltage/current: 9V-2A/5V-2A
Output voltage/current: 9V-1.12A/5V-1A
Support peak output of 10W, automatic recognition of 10W/7.5W/5W
Charging efficiency: around 75%
Sensing distance<8mm
Working frequency: 100-200Khz
Supports dynamic energy balance with quadruple protection functions including overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)
PCBA board size: length 32mm * width 32mm * thickness 3.5mm
Magnetic coil size: diameter 50mm, thickness 2.5mm
About Application
About customization
Delivery display
