15W ultra-low temperature mobile phone wireless charger 12V voltage transmitter module furniture desk lamp car modification plan
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: EPP certification standard
Support mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance main control chip, power management chip, and low-temperature charging throughout the entire process
Input voltage: 12V/9V/5V
Output current: 1A-1.67A
Output power: 15W/10W/7.5W/5W automatic recognition
Charging efficiency: over 83%
Sensing distance: ≤ 10mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)

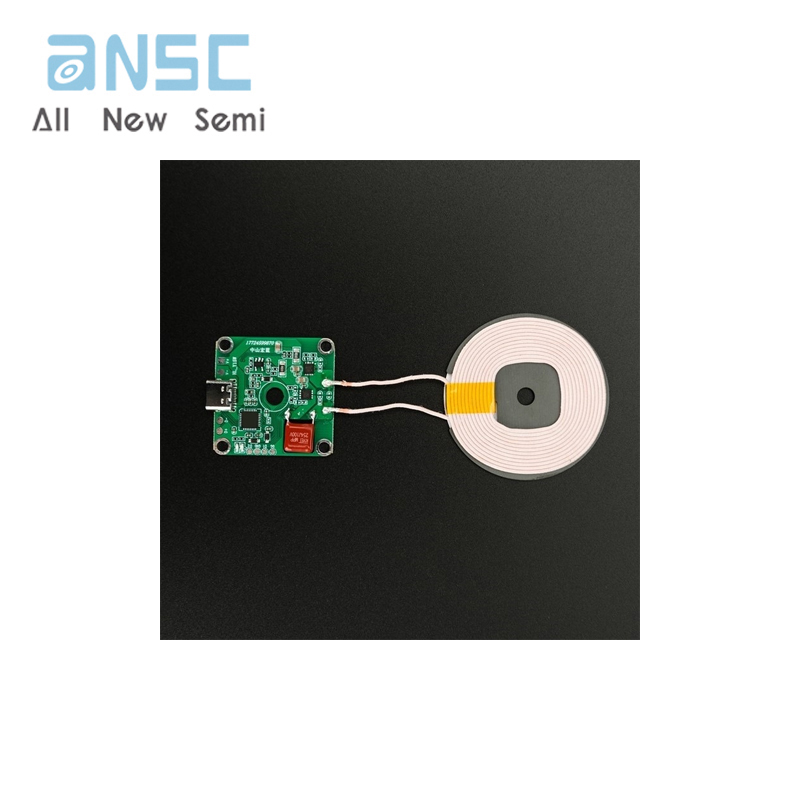

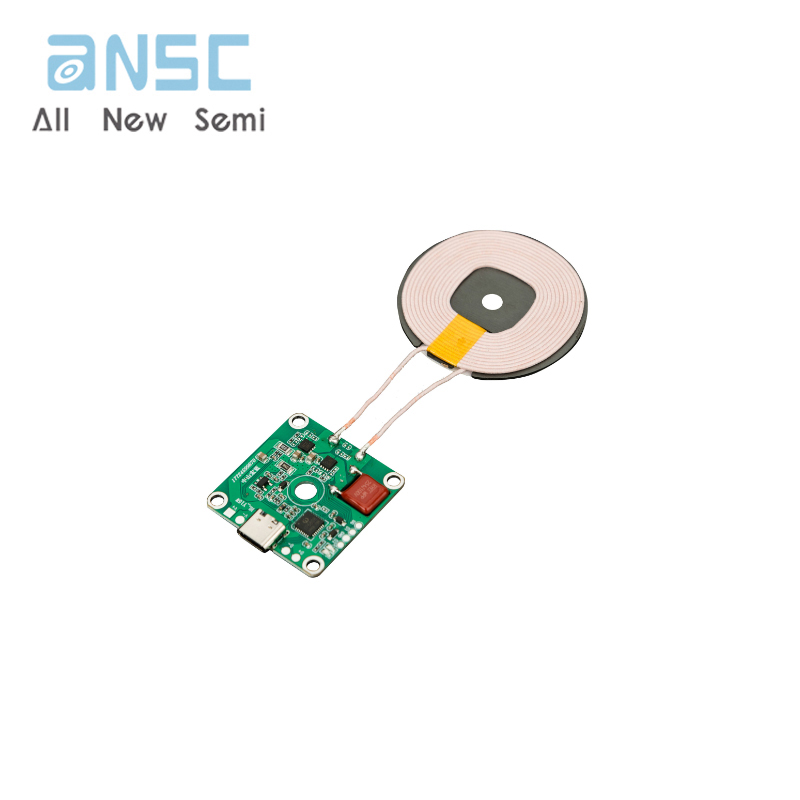

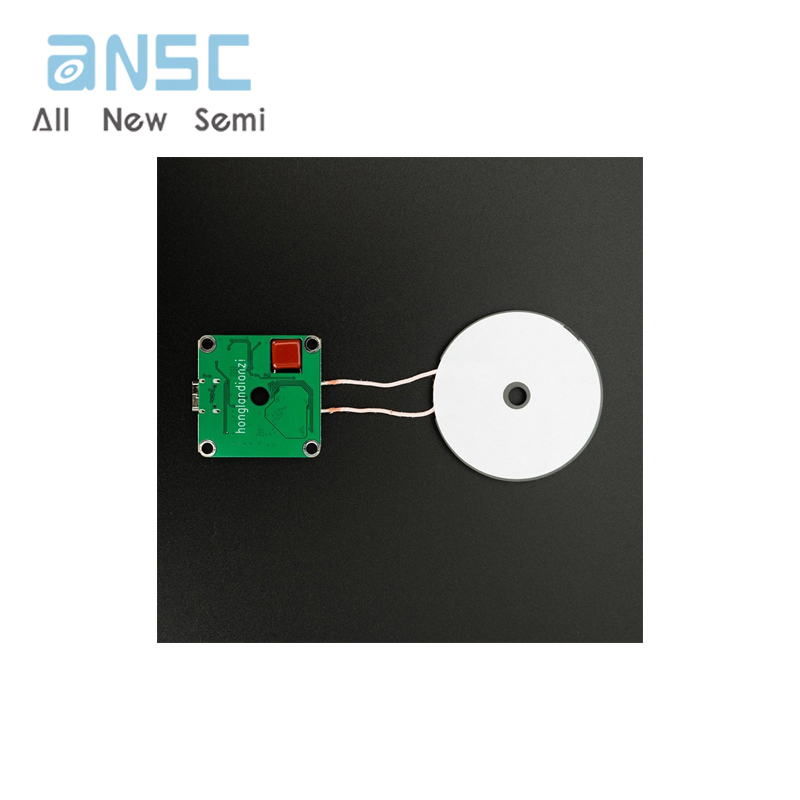

PCBA board size: length 35mm * width 35mm * thickness 3.3mm Magnetic isolation coil size: diameter 50mm, thickness 2.2mm, 12 coil
About Application
About customization
Delivery display
