20W highpower wireless mobile phone charger 12V fast charging transmitter module certified for automotive furniture modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: EPP certification standard
Support mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance control chips, power management chips, and low-temperature charging throughout the entire process
Input voltage: 5V-13.5V
Output current: 1A-1.67A
Output power: 20W/15W/10W/7.5W/5W Intelligent recognition
Charging efficiency: over 80%
Sensing distance: ≤ 10mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)

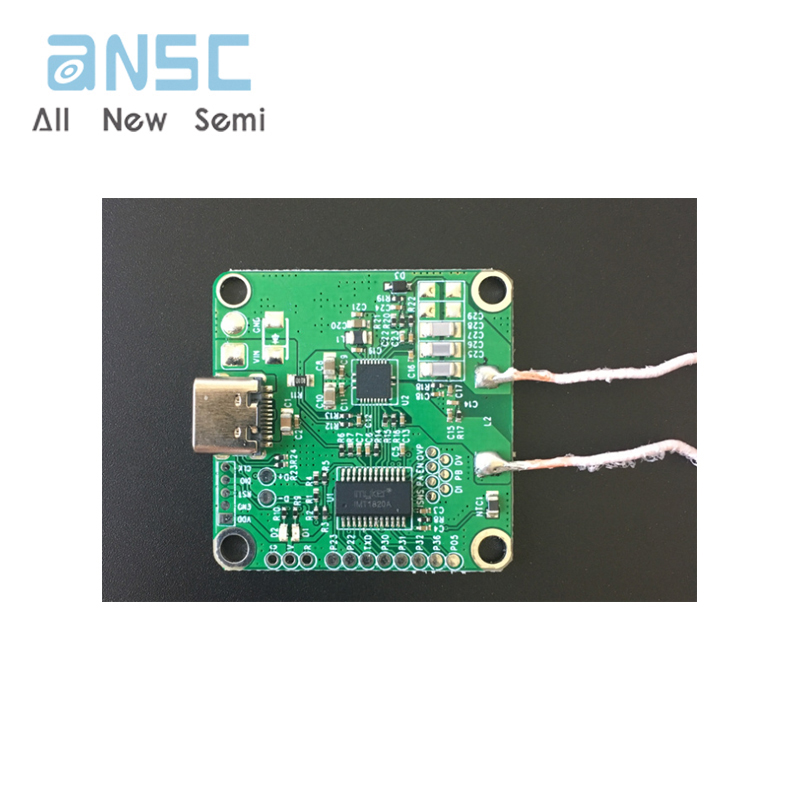

PCBA board size: length 35mm * width 35mm * thickness 3.3mm

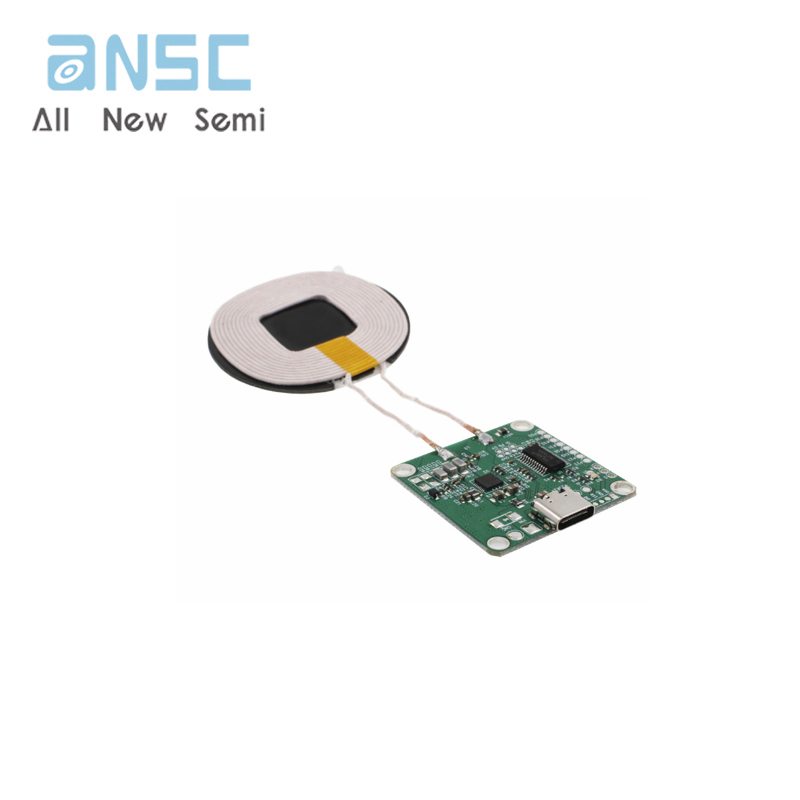

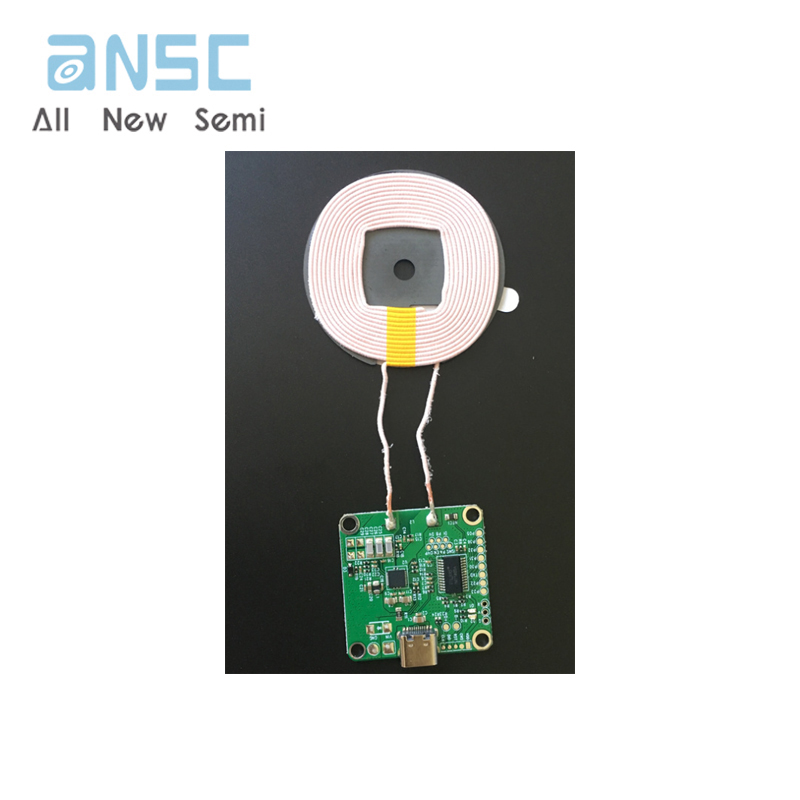

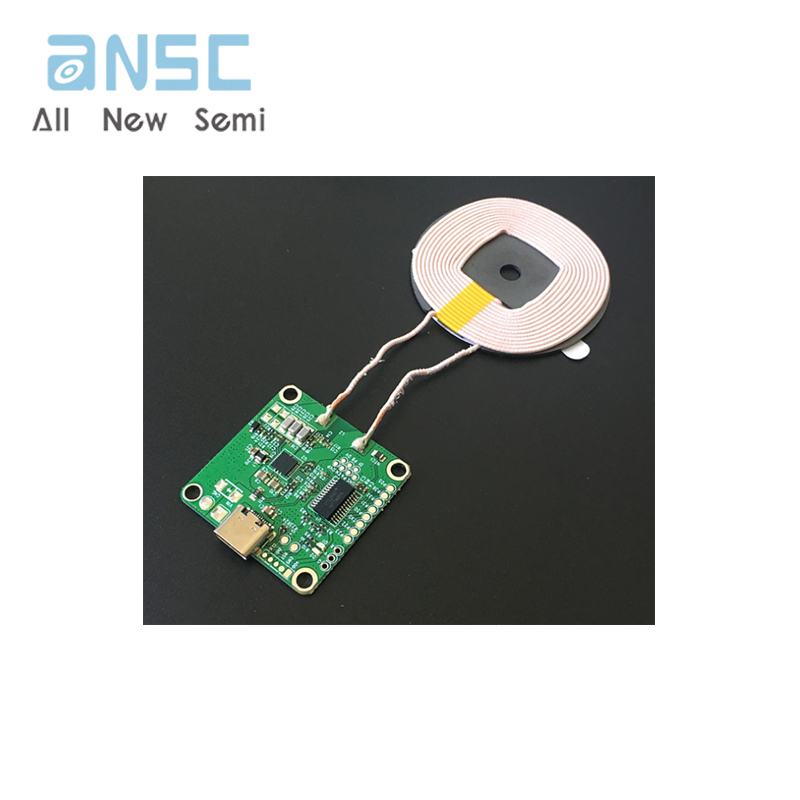

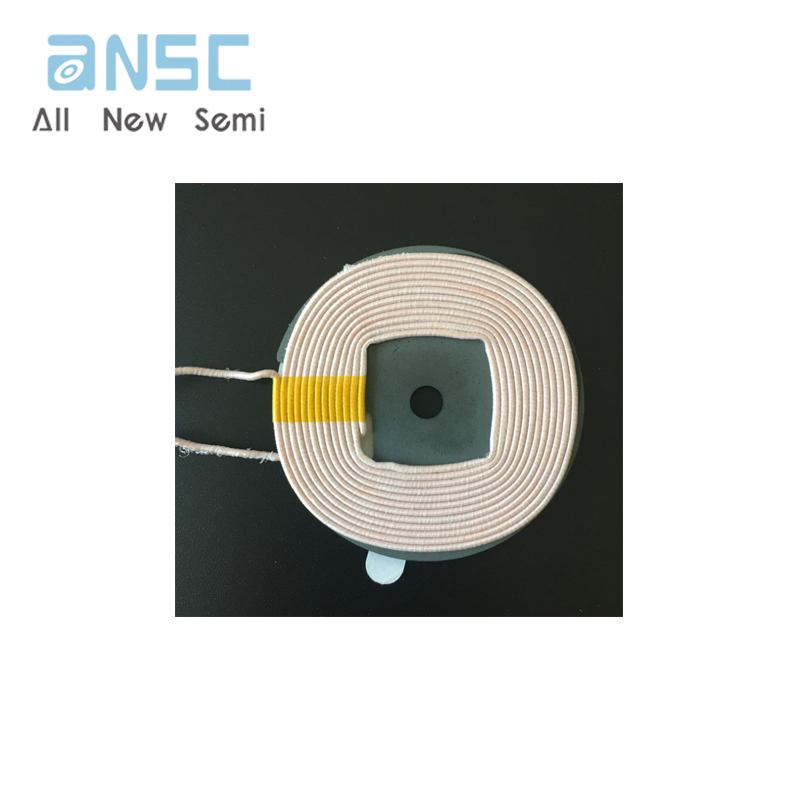

Magnetic coil size: diameter 50mm, thickness 2.2mm, 12 coils of wire
