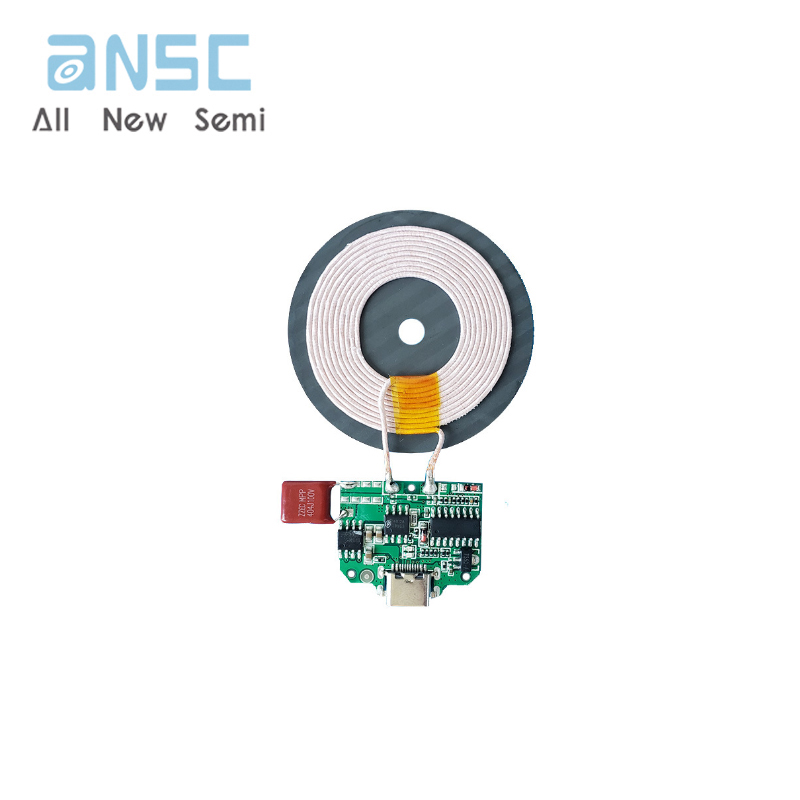

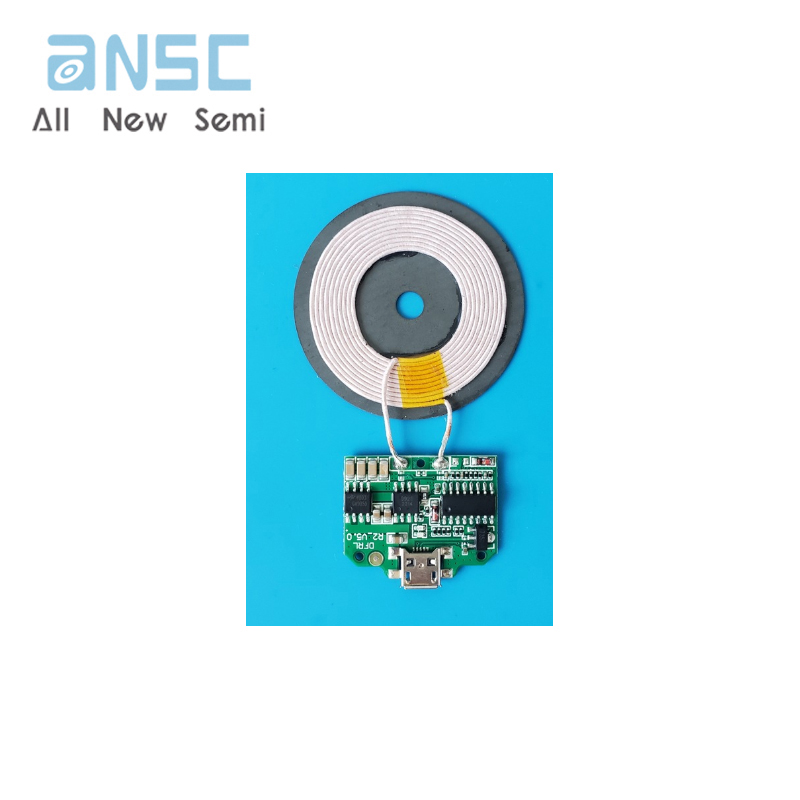

K8-15W/10W Mobile Wireless Charging Module Grid Transmitter Motherboard QI Standard DIY Modification Wireless Charging
Product Feature:
Compliant with WPC V1.2.4 wireless charging specifications
Product standard: EPP certification standard
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using a 16 pin MCU main control chip, stable charging and high cost-effectiveness
Input voltage/current: 9V-2A, 5V-2A
Output current: 1A-1.66A
Output power: 15W/10W/7.5W/5W automatic recognition
Charging efficiency: around 70% -75%
Sensing distance: ≤ 8mm·
Working frequency: 100-200Khz
Equipped with overcurrent, overvoltage, overheating and other protection functions
Support dual foreign object detection (FOD)

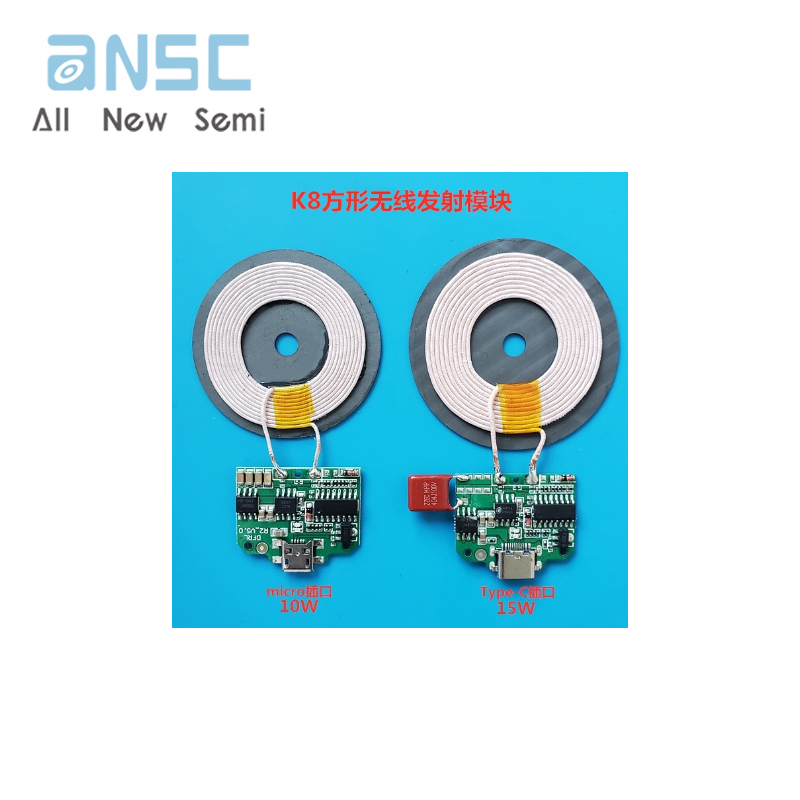

PCBA board size:
10W(29mm*24mm*2.7mm)
15W(29mm*24mm*3.2mm)
Size of magnetic isolation coil:
10W (diameter 45mm, thickness 1.8mm)
15W (diameter 45mm, thickness 1.8mm)
