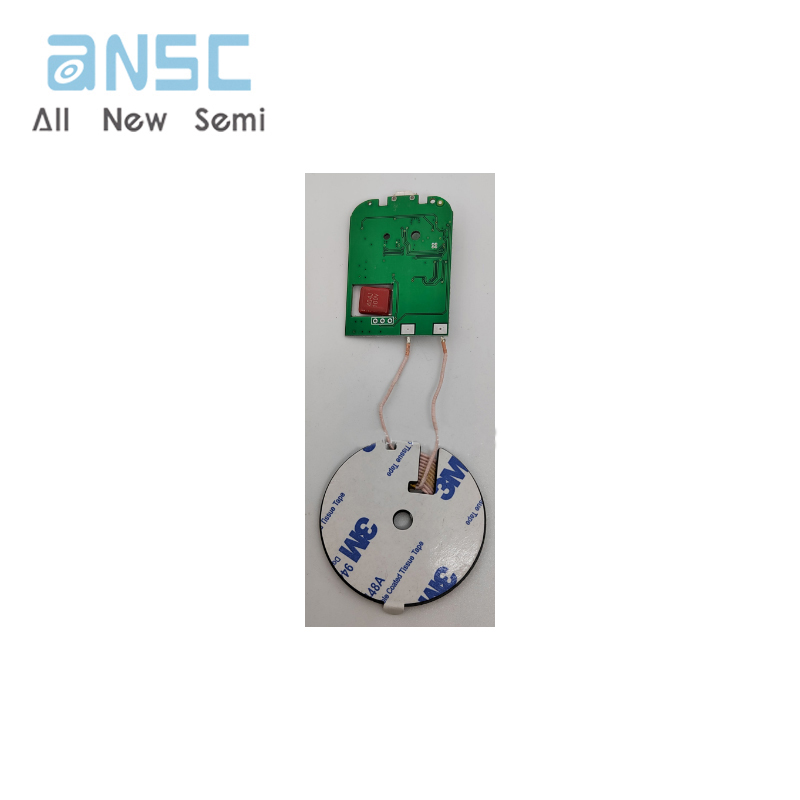

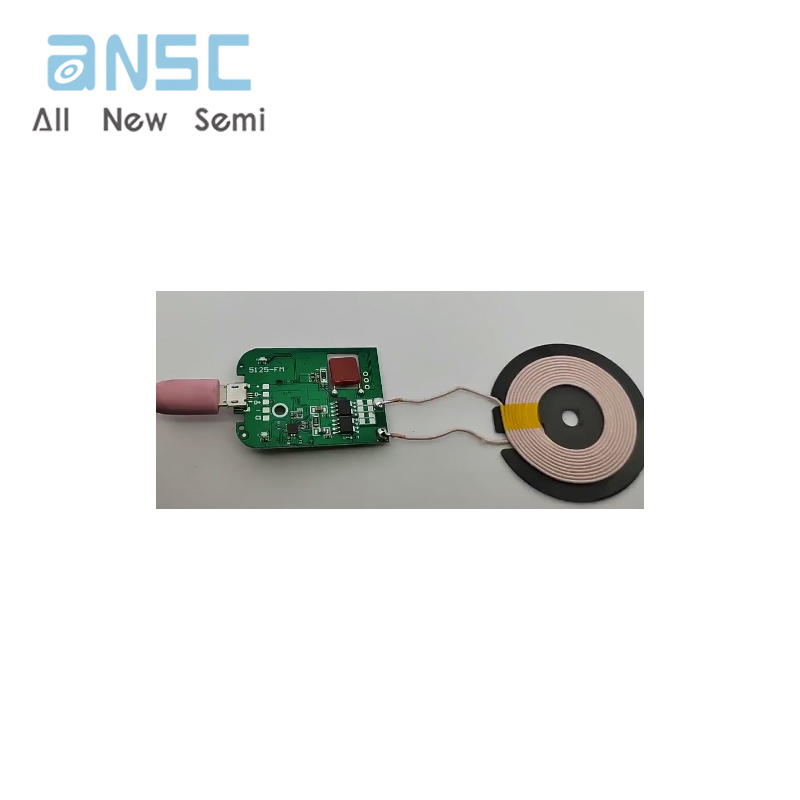

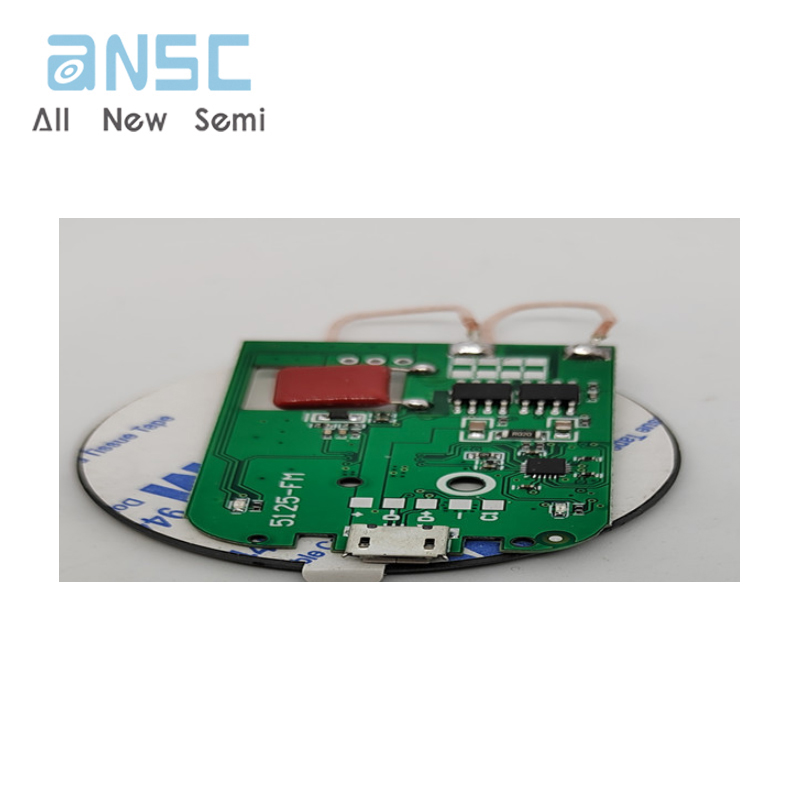

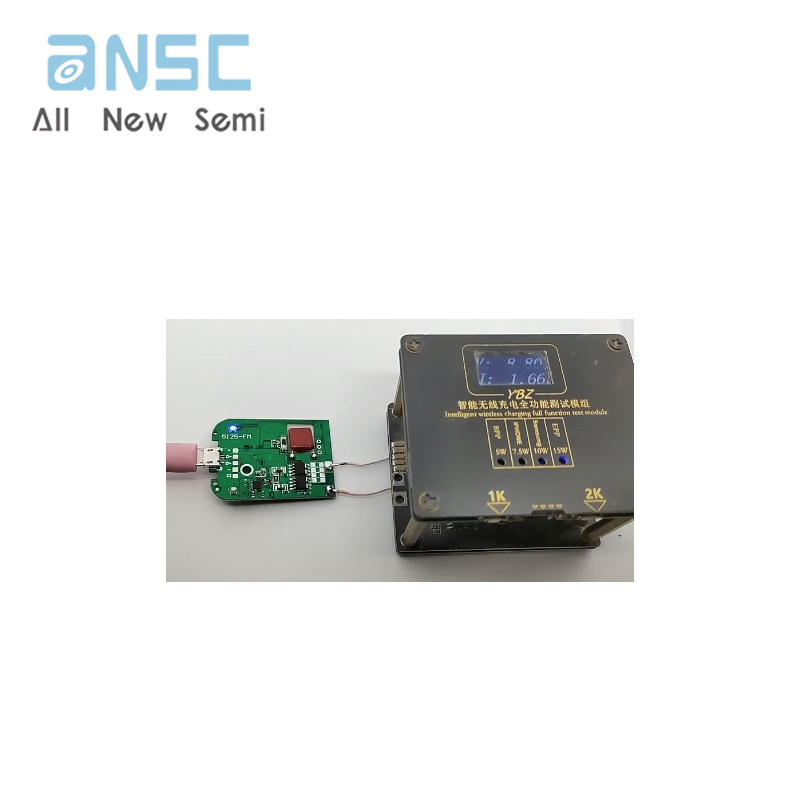

15W fast wireless charging solution QI standard wireless charger transmitter module PCBA spot factory direct sales
Product Feature:
1. Input voltage: 5V/9V/12Vdc+/-5% (QC2.0)
2. Charging current: 2.0A
3. Charging power: can reach 15W, compatible with 10W/7.5W/5W
4. Conversion efficiency: greater than 73%
5. Transmission distance: 8mm, recommended transmission and reception spacing of 2mm~6mm
6. Standby power consumption:<0.3W
7. Over temperature protection: automatically stops charging when the temperature exceeds 60 ° C during charging
8. Overcurrent protection: Automatically stops charging when the output current exceeds 2.5A during charging to prevent damage to the charger
About Application
About customization
Delivery display
