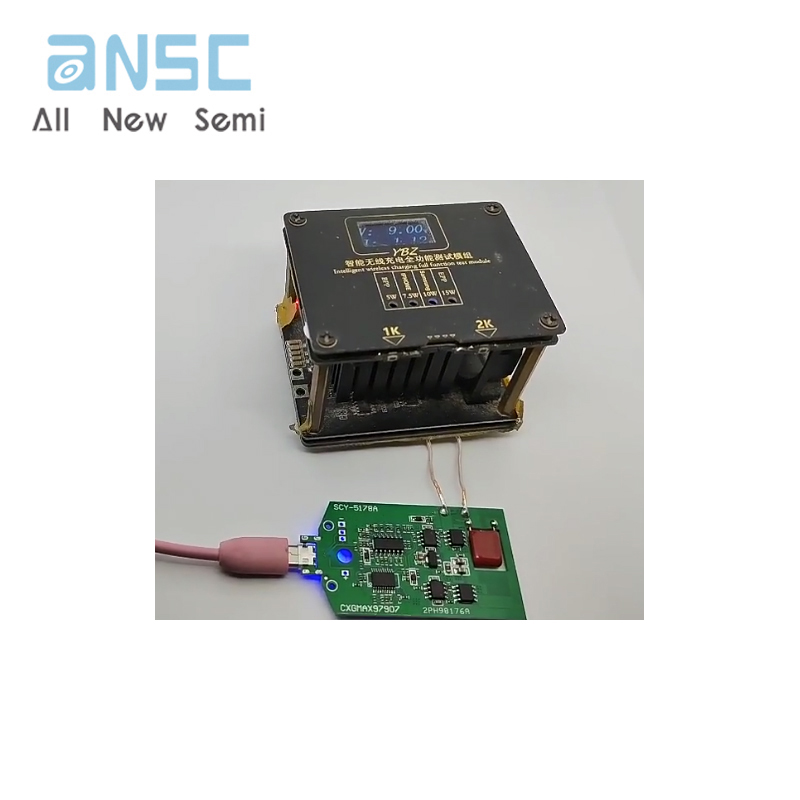

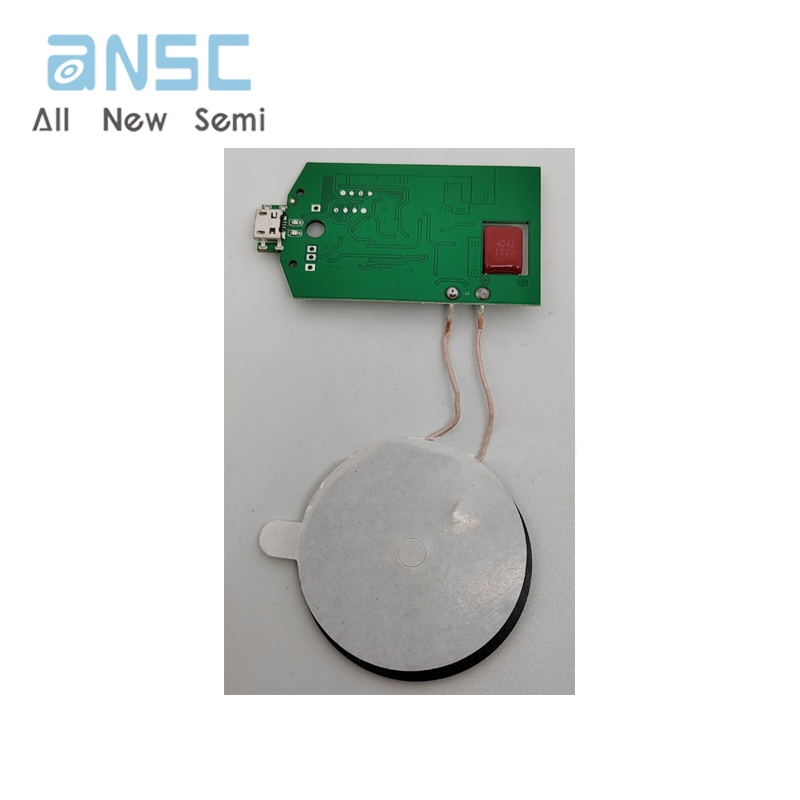

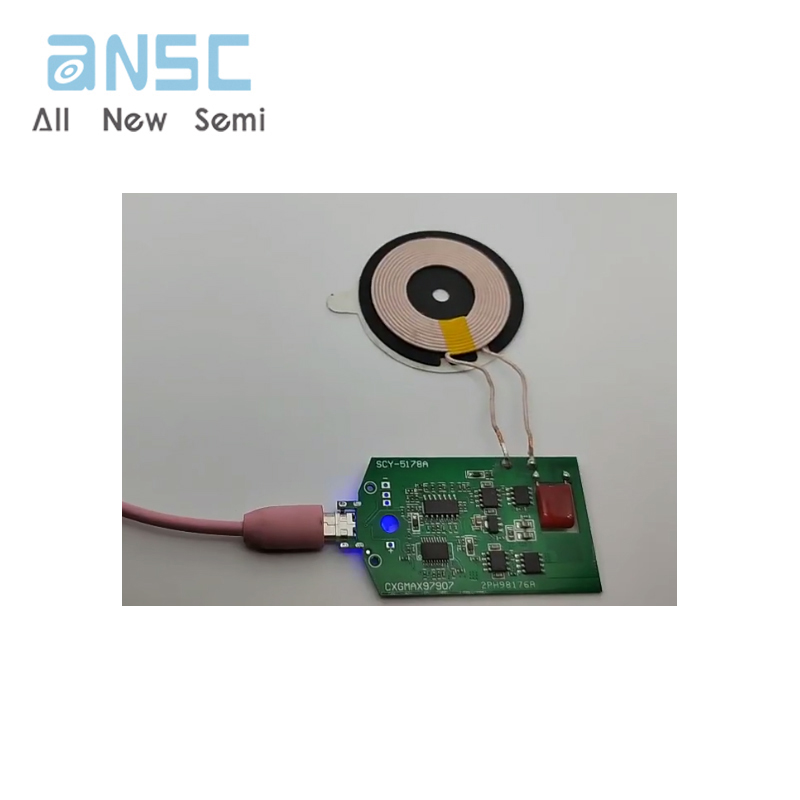

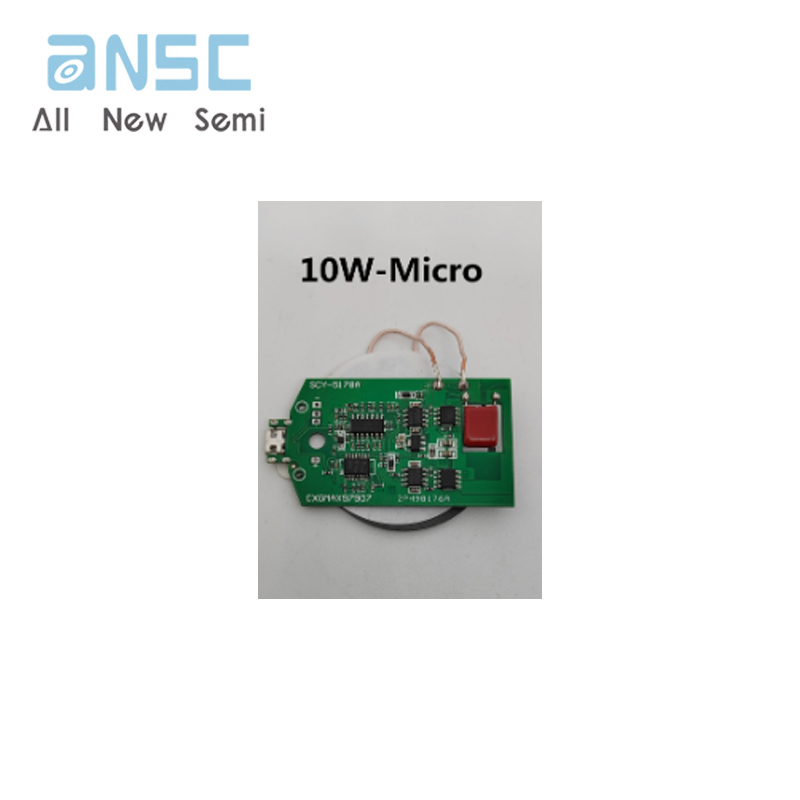

10W fast wireless charger solution kit QI standard long ultra-thin transmission module mobile wireless charger PCBA
Product Feature:
1. Input voltage: DC9V1.5-2A. If the voltage exceeds this range, an alarm will be triggered and charging will stop
2. Output voltage: 9V ± 0.1V,
3. Charging current: 1200mAh
4. Charging power: up to 10W
5. Conversion efficiency: greater than 73%
6. Transmission distance: maximum 10mm, recommended transmission and reception spacing of 2mm~6mm
7. Standby power consumption: average power consumption less than 50mW
8. Over temperature protection: When the temperature is above 60 ° C during charging, it will automatically stop charging for 1 minute and wait for the temperature to drop before recharging
9. Overcurrent protection: Automatically stops charging when the output current exceeds 2A during charging to prevent damage to the charger
10. Execution standard: Qi wireless charging standard
11. Product certification: CE/FCC, compatible with QI certification standards
12. Operating frequency: 110-205KHZ
13. Weight: 20 grams
14. Indicator light: Charging blue light, fully charged green light, flashing alternately in case of malfunction
