Product Introduction

This LSI is an 8-bit RISC type microprocessor with high speed CMOS technology and low power consumption. Integrated onto a single chip are on chip watchdog timer (WDT), Data  RAM,  ROM,  programmable  real  time  clock  counter,  internal/external  interrupt,  power  down  mode,  LCD  driver,  infrared  transmitter  function,  and  tri-state  I/O.  The  EM78P468N provides multi-protection bits to protect against intrusion of user’s code in the OTP memory and a seven option bits to accommodate user’s requirements. It also provides an especial 13 bits customer ID option.

With its OTP-ROM feature, this LSI offers a convenient way of developing and verifying user’s  programs.  Moreover,  user  developed  code can  be  easily  programmed  with  the  ELAN writer.

Products Features

?Operating voltage and temperature range:

Commercial: 2.2V ~ 5.5 V. (at 0°C~+70°C)

Industrial: 2.5V ~ 5.5 V. / (at -40°C~+85°C)

?Operation speed: DC ~ 10MHz clock input.

?Dual clock operation

High frequency oscillator can select among Crystal, RC, or PLL (phase lock loop)

Low frequency oscillator can select between Crystal or RC mode

?Totally 272 bytes SRAM

144 bytes general purpose register

128 bytes on chip data RAM

?4K*13 bits OTP - ROM (One Time Programmable - Read Only Memory)

?Up to 28 bi-directional tri-state I/O ports

Typically, 12 bi-directional tri-state I/O ports.

16 bi-directional tri-state I/O ports shared with LCD segment output pin.

?8-level stack for subroutine nesting

?8-bit real time clock/counter (TCC)

?One infrared transmitter/PWM generator function

Specifications

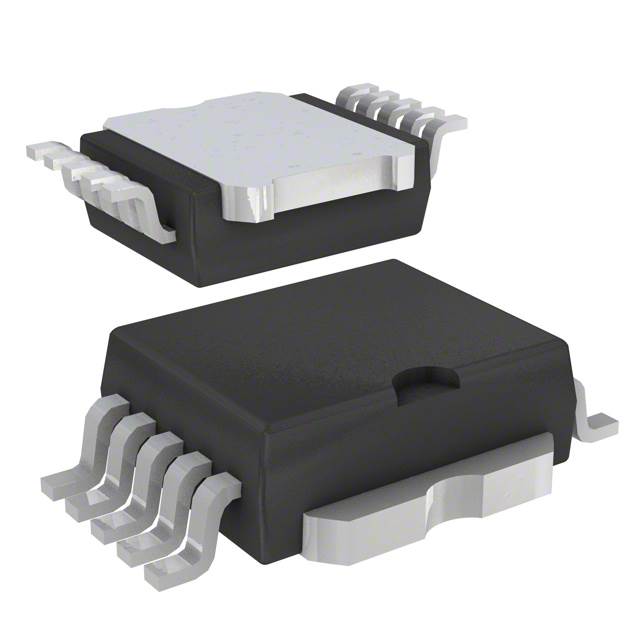

Actual product photos
