Product Descriptions
The NJG1804K64 is a GaAs SP3T switch MMIC which is suitable for WLAN(802.11a/b/g/n/ac) and Bluetooth applications. This MMIC switches between a common RF port and three RF ports by three control voltages. The NJG1804K64 features very low insertion loss, high isolation at wide frequency range up to 6.0GHz. The ultra small and ultra thin DFN8-64 package is adopted.
Product Features
? Low control voltage VCTL(H)=1.9V to 5.0V
? Low insertion Loss 0.50dB typ. @f=2.4 to 2.5GHz, 0.60dB typ. @f=4.9 to 5.9GHz
? High isolation 30dB typ. @f=2.4 to 2.5GHz, 26dB typ. @f=4.9 to 5.9GHz
? Ultra small & ultra thin package DFN8-64 (Package size: 1.5 x 1.5 x 0.375mm)
? RoHS compliant and Halogen free, MSL1
Product Applications
- 802.11a/b/g/n/ac WLAN applications
- Bluetooth
- General purpose switching applications
Specifications
| ANSM-Part# | NJG1804K64-TE1 |
| category | RF/IF, RF/IF and RFID |
| RF switch | |
| manufacturer | Nisshinbo Micro Devices Inc. |
| series | - |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| product status | in stock |
| RF type | 802.11a/b/g/n/ac, |
| topology | - |
| circuit | SP3T |
| Frequency Range | 6GHz |
| isolation | 26dB |
| insertion loss | 0.6dB |
| Test frequency | 5.9GHz |
| P1dB | 29dBm |
| IIP3 | - |
| characteristic | - |
| impedance | 50 ohms |
| Voltage - Powered | 1.9V ~ 5V |
| Operating temperature | -40°C ~ 105°C |
| Package/Enclosure | 8-XFDFN Exposed Pad |
| Supplier Device Packaging | 8-DFN(1.5x1.5) |
| Basic product number | NJG1804 |

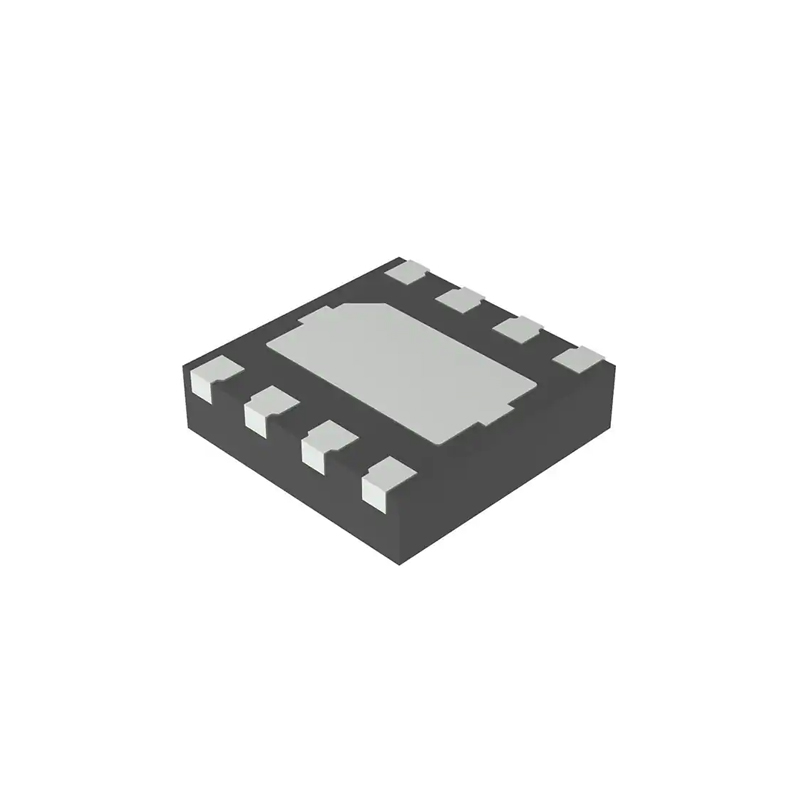

Actual product photos
