Product Details
| Series overview High-quality analogue power distribution system VisiSafe "Visible safety" VisiSafe ensures absolute reliability and safety of subordinate circuits in all environments and conditions. · VisiSafe green indicator bar reliably indicates the disconnection position of the contacts. Shock withstand voltage: UIMP=6KV Guarantee that even under overvoltage conditions, it can still effectively improve the service life of the equipment The highest pollution resistance level in modular products: Level 3 Application Scope Industry: Machinery manufacturing, control system cabinet manufacturing, etc . Downstream applications: transmission and distribution plants, utilities, buildings, airports, etc. |
Product Description
Product characteristics:
| iC65 - Miniature circuit breaker | |||||
| Product Name | iC65N | iC65H | iC65L | ||
| Meet the standards | IEC/EN60898-1 | IEC/EN60898-1 | IEC/EN60947-2 | ||
| GB10963.1 | GB10963.1 | GB14048.2 | |||
| Product certification | CCC,CE,CCS | CCC,CE,CCS | CCC,CE | ||
| Electrical characteristics | |||||
| Extreme number | 1P,2P,3P,4P | 1P,2P,3P,4P | 1P,2P,3P,4P | ||
| Rated Current (A) | 1~63 | 1~63 | 1~63 | ||
| Rated voltage Ue | 230/400 | 230/40 | 230/400 | ||
| Rated insulation voltage (V) Ui | 500 | 500 | 500 | ||
| Maximum operating voltage (V) Umax | 440 | 440 | 440 | ||
| Minimum operating voltage (V) Umin | 12 | 12 | 12 | ||
| Rated Operating Frequency (Hz) | 50/60 | 50/60 | 50/60 | ||
| Rated Shock Withstand Voltage (kV) UIMP | 6 | 6 | 6 | ||
| Rated short-circuit capability Icn | 230V/400V | (IEC/EN 60898) | 6kA | 10kA | - |
| Rated for the ultimate short-circuit breaking capacity of the ICU | ?230V/400V | (IEC/EN 60947-2) | - | - | 15kA |
| Rated for running short-circuit breaking capability ICS | 230V/400V | (IEC/EN 60947-2) | - | - | 100%Icu |
| 50%Icu | |||||
| Overvoltage category | IV | IV | IV | ||
| Contamination level | 3 | 3 | 3 | ||
| Instantaneous tripping characteristics | B (3In~5In) | ● | ● | - | |
| C (5In~10In) | ● | ● | ● | ||
| D (10In~14In) | ● | ● | ● | ||
| MA(12In±20%) | - | - | - | ||
| leakage accessories | ● | ● | ● | ||
| electrical accessories and mechanical accessories | ● | ● | ● | ||
| Shock protection level | II | II | II | ||
| Mechanical properties | |||||
| Mechanical life | 20000 | 20000 | 20000 | ||
| Electrical life | 10000 | 10000 | 10000 | ||
| Protection level | Circuit breaker body | IP20 | IP20 | IP20 | |
| Installed in the distribution box | IP40 | IP40 | IP40 | ||
| Baseline setting temperature | 30℃ | 30℃ | 50℃ | ||
| Other characteristics | |||||
| terminal form | Tunnel type | Tunnel type | Tunnel type | ||
| Maximum wiring capacity | ≤25A | 25 | 25 | 25 | |
| >25A | 35 | 35 | 35 | ||
| Terminal ultimate torque | ≤25A | 5.1 | 5.1 | 5.1 | |
| >25A | 5.6 | 5.6 | 5.6 | ||
| Contact Status Indication (Visi-Safe) | ● | ● | ● | ||
| Fault indication window (Visi-Trip) | ● | ● | ● | ||
| Approach to the line | Up and down | Up and down | Up and down | ||
environment
| Meet the standards | GB 10963.1 IEC 60898-1 |
| Product certification | CCS??CCC??CE |
| IP protection level | IP20 compliant with IEC 60529 |
| Contamination level | 3 Compliant with IEC 60947-2 |
| Operating temperature | -35… 70 °C |
| Storage ambient temperature | -40… 85 °C |
| Resistance to dampness and heat | 2 Compliant with IEC 60068-1 |
| relative humidity | 95% in... Above 55 °C |

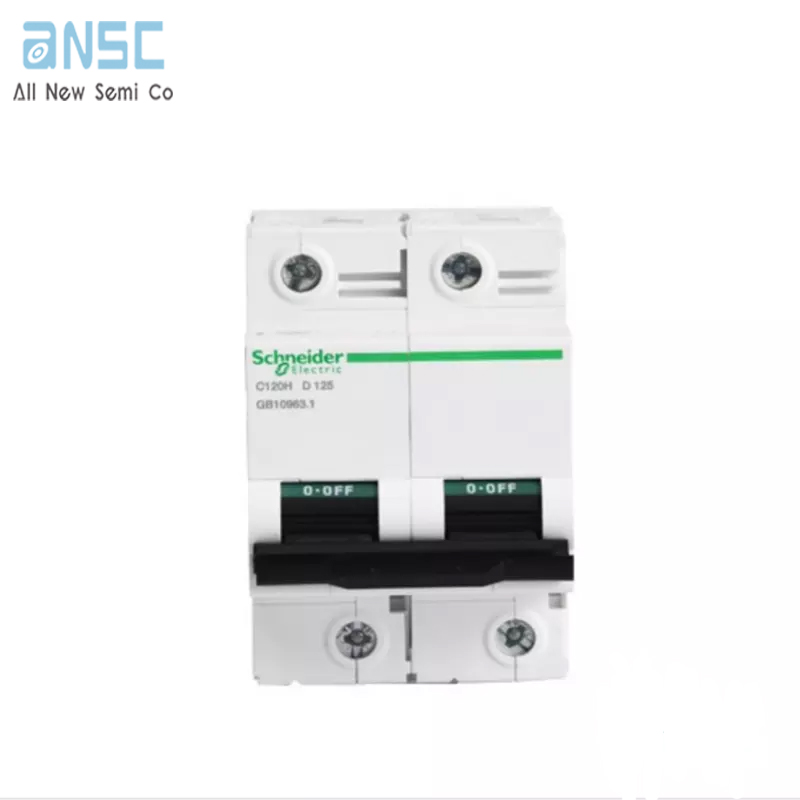

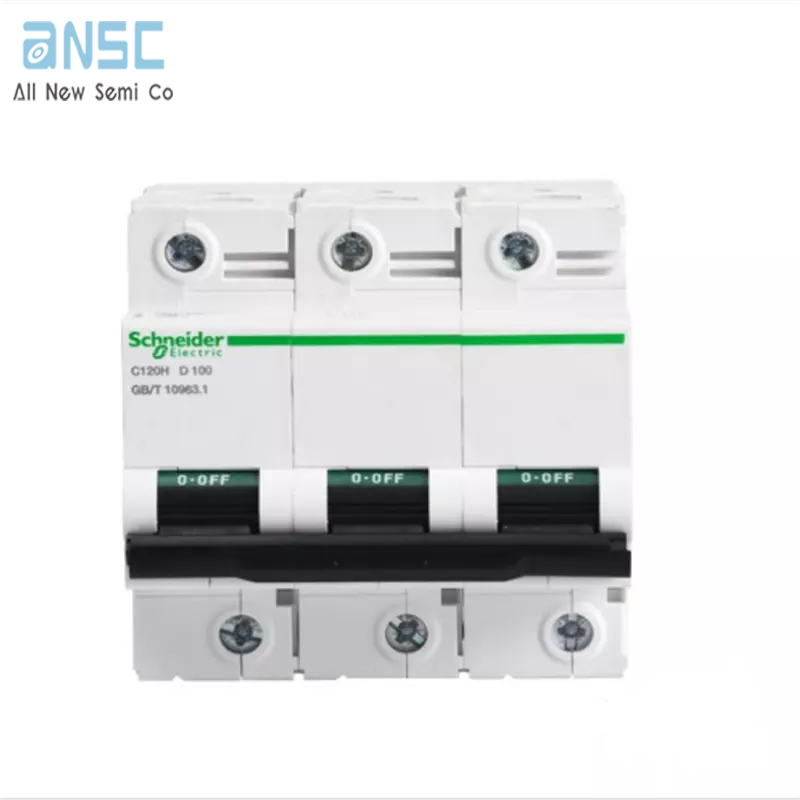

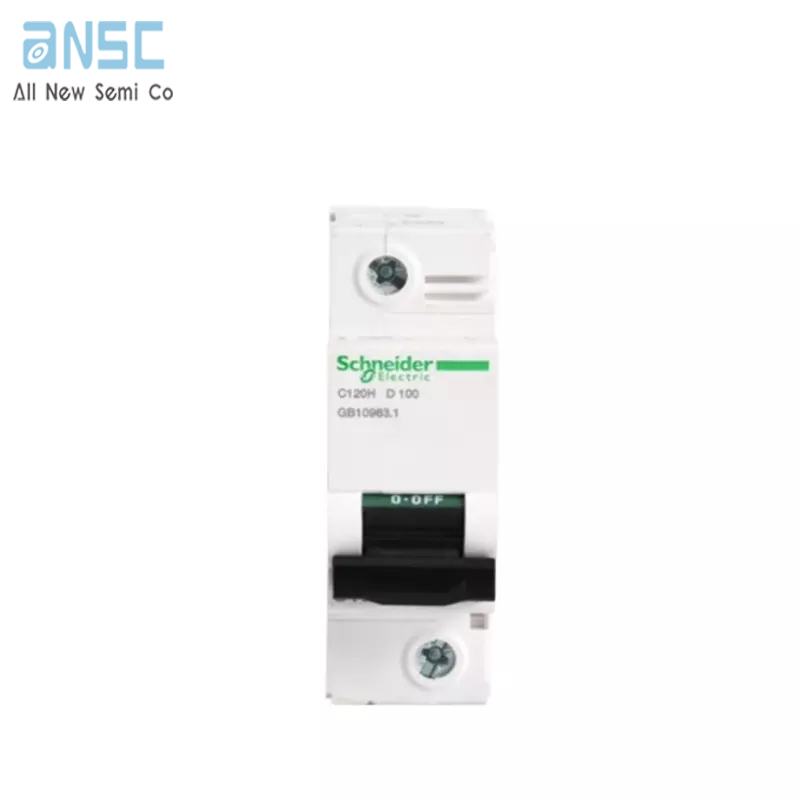

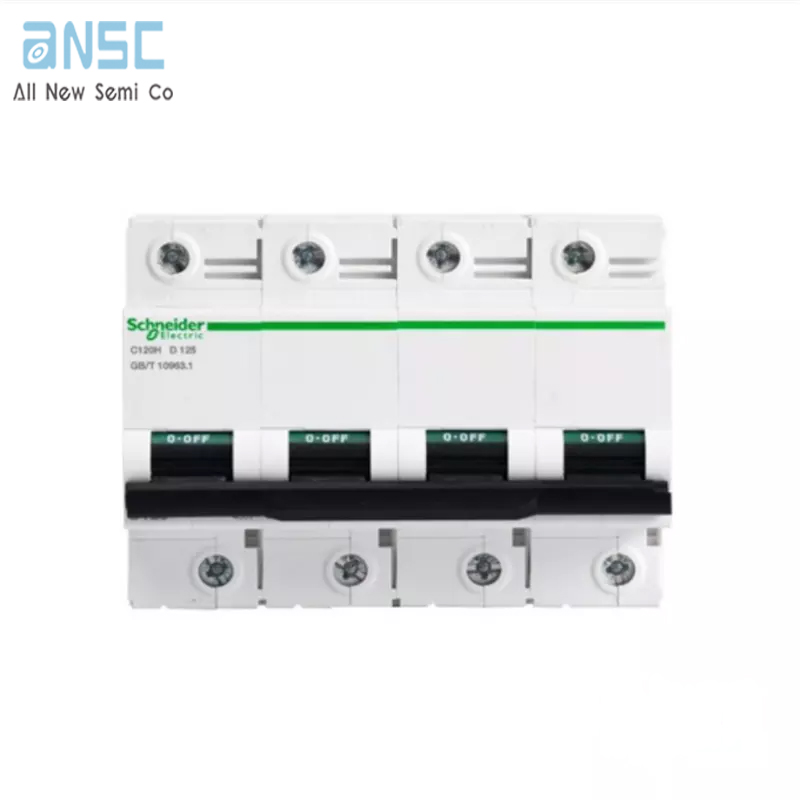

Actual image of the product
