Product Description
Development of 15W brushless motor drive board cooling fan control board
Product parameters
PRODUCT PARAMETERS
Applicable product EC fan
Adaptive motor: 54 silicon chip (single phase)
Power supply voltage: ac110 ~ 220V
Output power ≤ 18W
Motor speed 2800rpm
Control motor mode inductive square wave (single phase)
Matching motor pole pairs: 4 slots and 4 poles product performance: locked rotor protection
model：XT56-13
Mechanical rigidity：rigidity
Number of layers：two-sided
base material：copper
Insulating material：Organic resin
Insulation thickness：Conventional board
Flame retardant properties：VO board
Processing technology：Electrolytic foil
Reinforcing material：Glass fiber cloth base
Insulating resin：Epoxy resin (EP)
Product nature：New products
Marketing methods：direct deal
Marketing price：Discount
Is cross border export exclusive for supply：no
Specifications：EC fan drive board-15w, EC fan drive board-70w

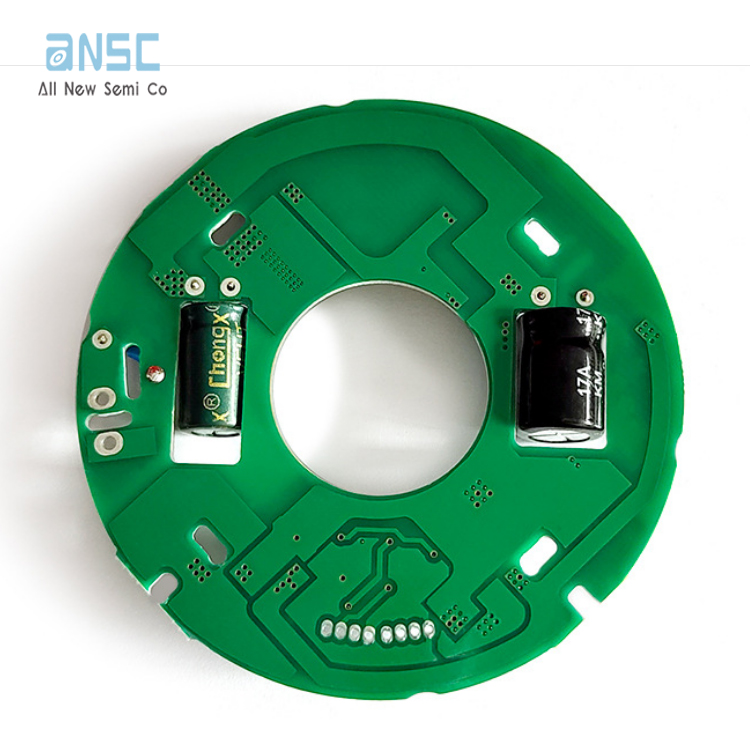

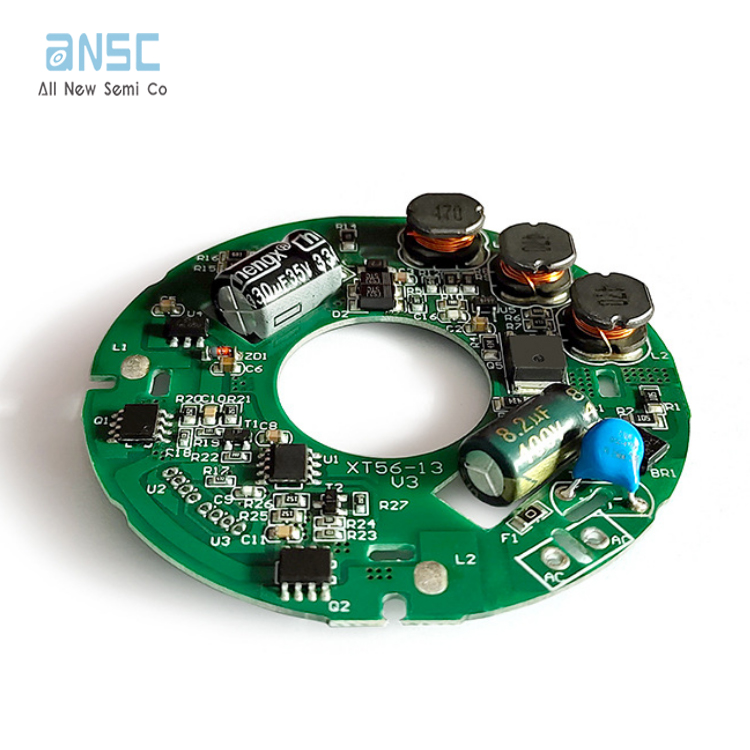

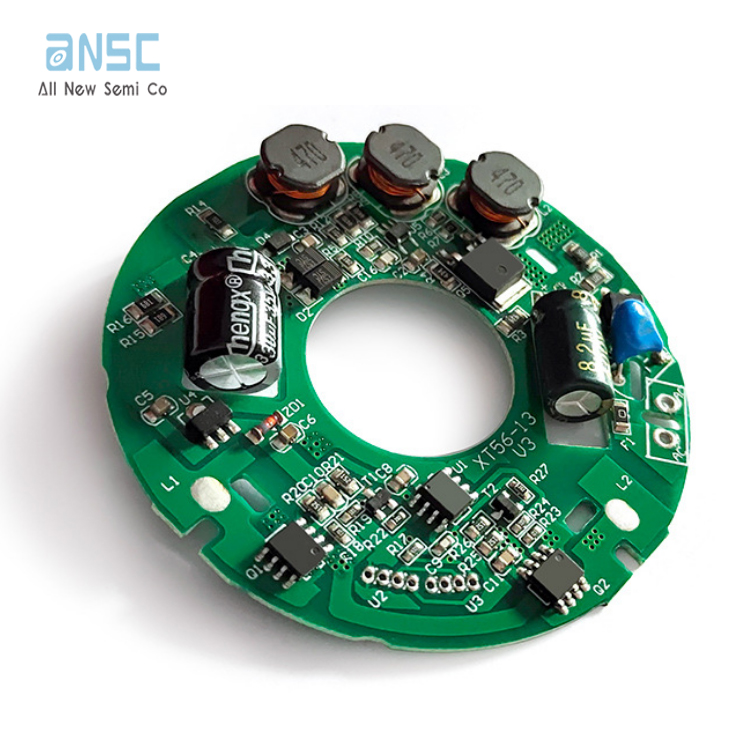

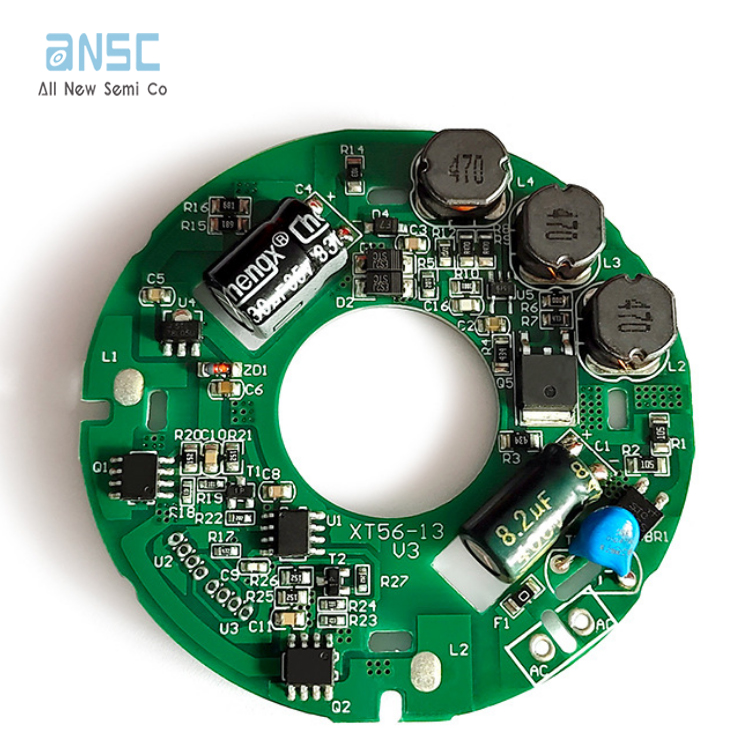

Actual image of the product
Advantages:
FAQ
