Product Features

Core

? 32-bit Arm? Cortex?-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

Memories

? Up to 2 Mbytes of flash memory with readwhile-write support

? Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain

? Dual mode Quad-SPI memory interface running up to 133 MHz

? Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND flash memory clocked up to 100 MHz in Synchronous mode

? CRC calculation unit

Security

? ROP, PC-ROP, active tamper

General-purpose input/outputs

? Up to 168 I/O ports with interrupt capability

Reset and power management

? 3 separate power domains which can be independently clock-gated or switched off:

– D1: high-performance capabilities

– D2: communication peripherals and timers

– D3: reset/clock control/power management

? 1.62 to 3.6 V application supply and I/Os

? POR, PDR, PVD and BOR

? Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs

? Embedded regulator (LDO) with configurable scalable output to supply the digital circuitry

? Voltage scaling in Run and Stop mode (6 configurable ranges)

? Backup regulator (~0.9 V)

? Voltage reference for analog peripheral/VREF+

? Low-power modes: Sleep, Stop, Standby and VBAT supporting battery charging

Low-power consumption

? VBAT battery operating mode with charging capability

? CPU and domain power state monitoring pins

? 2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)

Clock management

? Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI

? External oscillators: 4-48 MHz HSE, 32.768 kHz LSE

Specifications

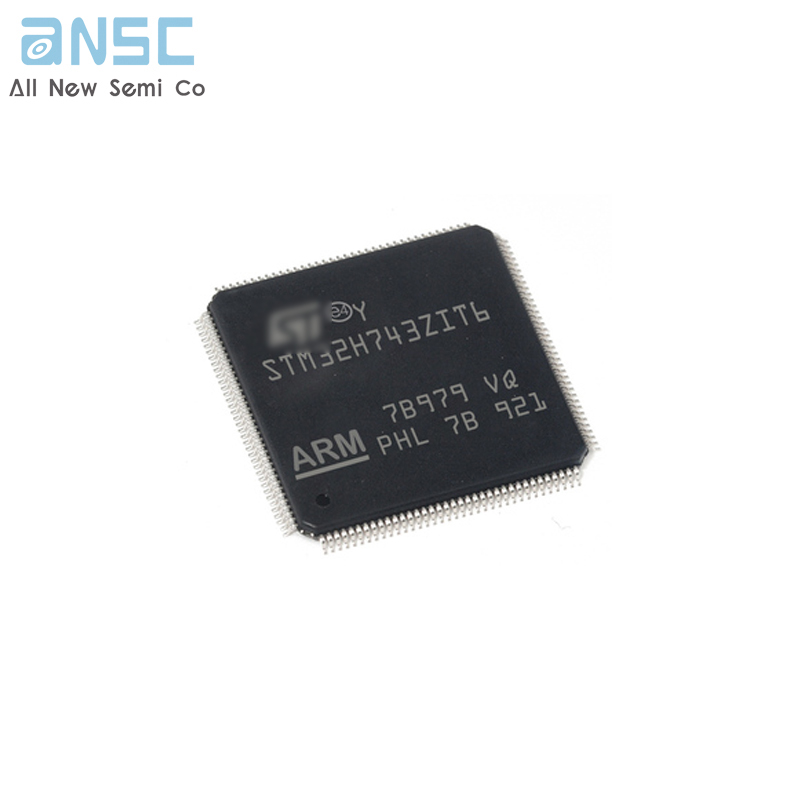

Actual product photos

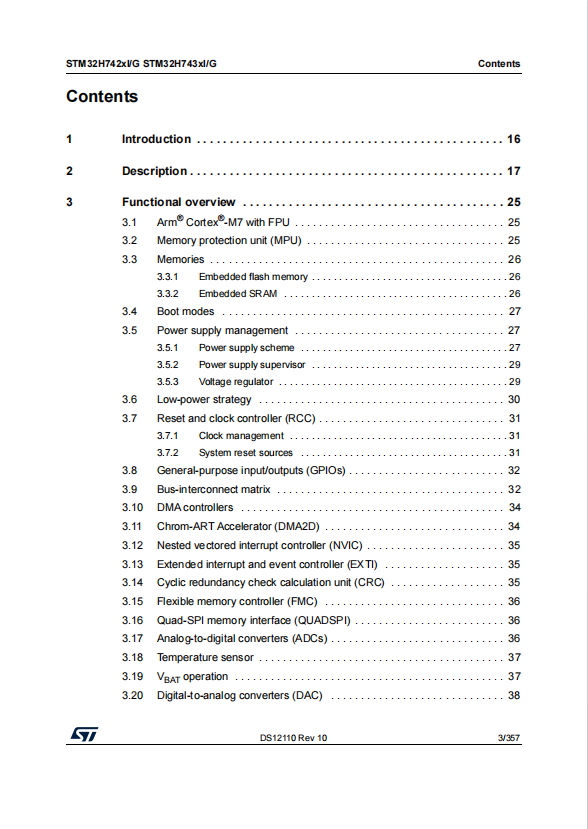

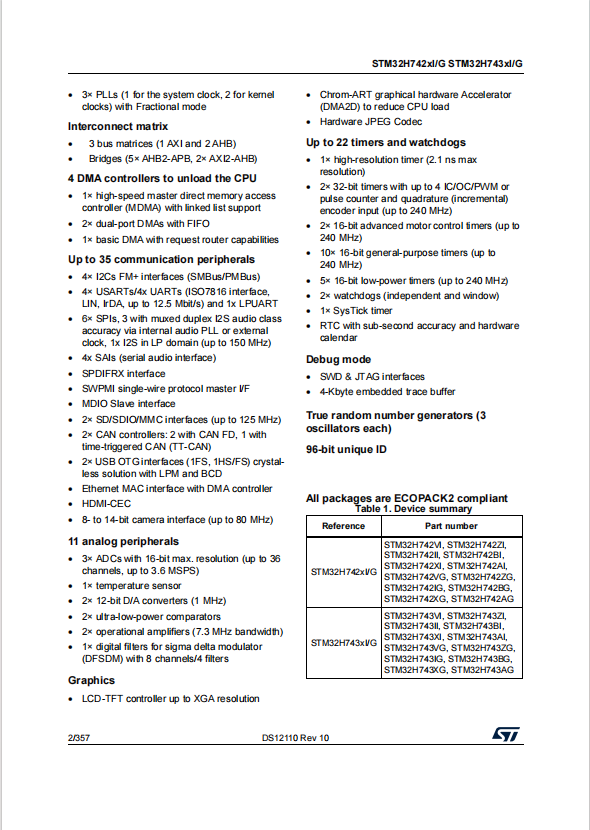

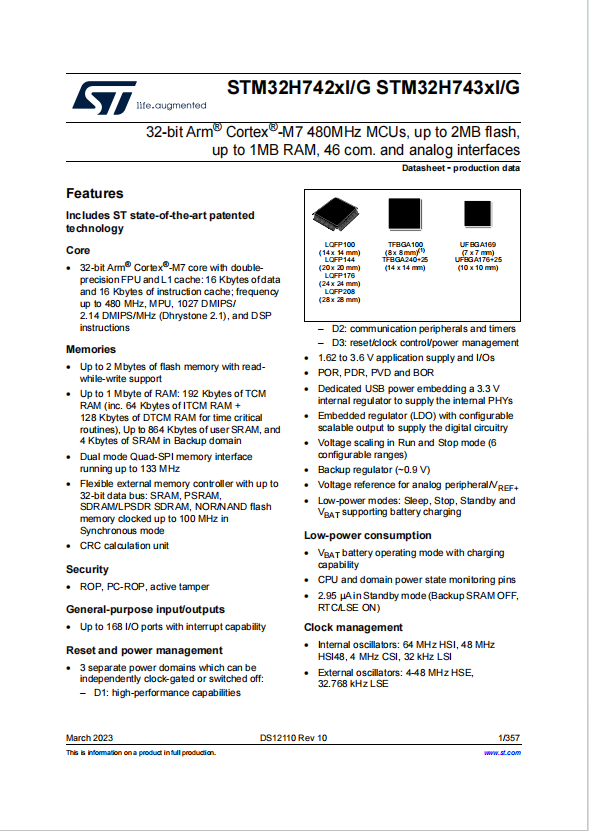

Product Data Book：

For more product information, please download the PDF
