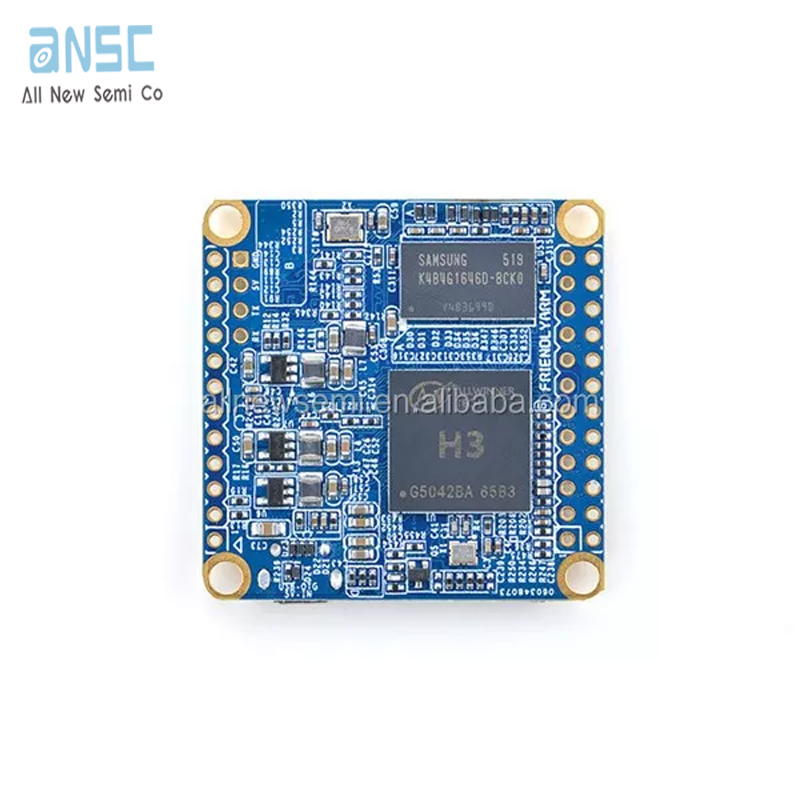

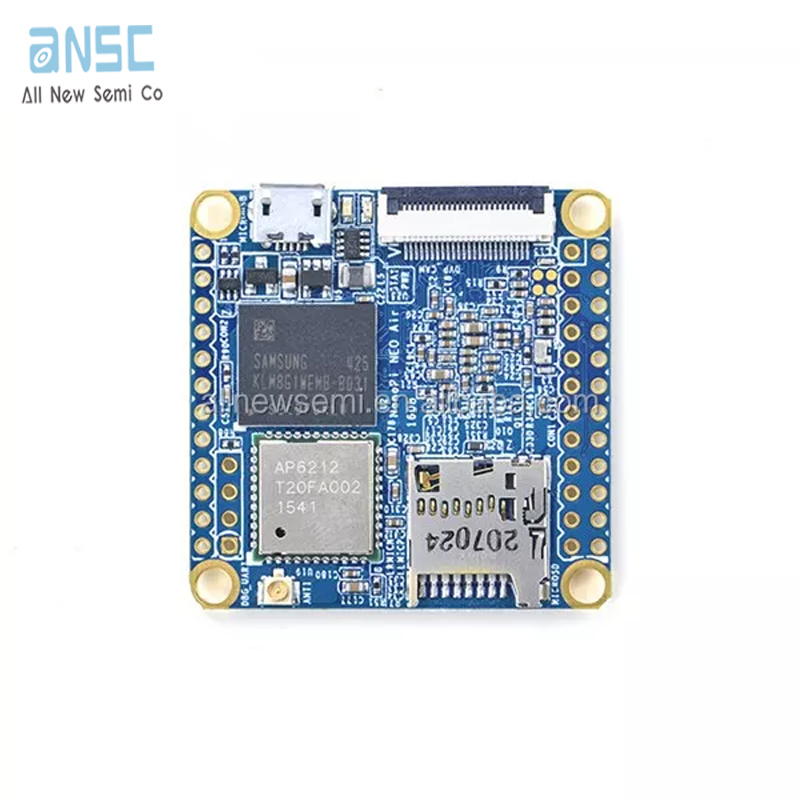

IoT Development Board WiFi Debian UbuntuCore NanoPi NEO Air H3
SIZE:40*40MM
CPU: Allwinner H3,Quad-core Cortex-A7 Up to 1.2GHz
Memory: 512M DDR3 RAM
Storage: 8GB eMMC
WiFi: 802.11b/g/n
4.0 dual mode
MicroSD Slotx1
MicroUSB: OTG and power input
DVP Camera Interface: 0.5mm pitch 24-pi n FPC seat
Debug Serial Port: 4Pin,2.54mm pitch pin header
Audio Port: 4Pin,2.54mm pitch pin header

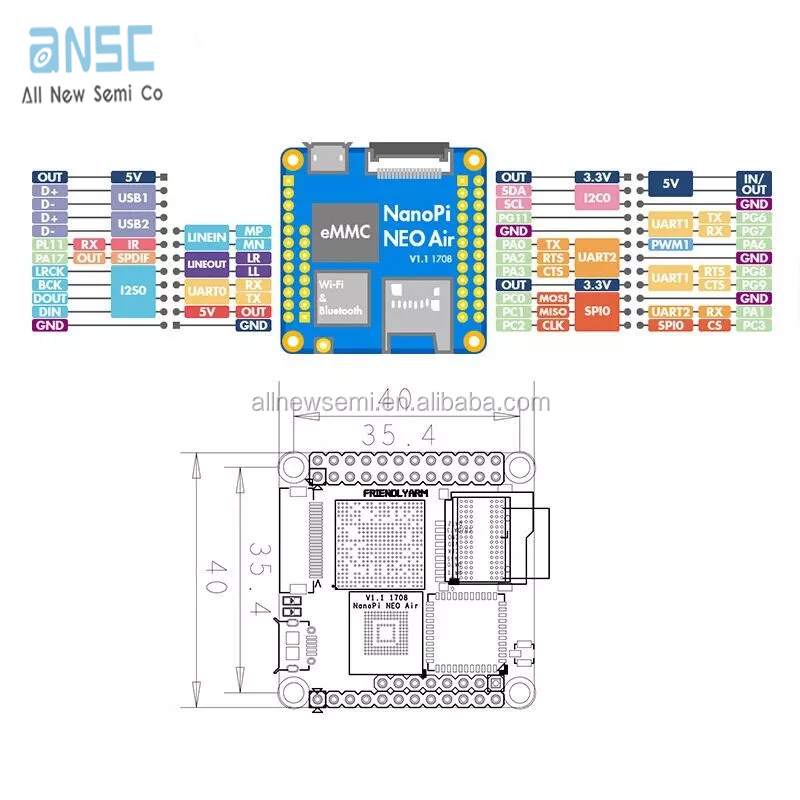

GPIO1: 2.54mm spacing 24pin,It includes UART,SPI,I2C,GPIO;
GPI02: 2.54mm spacing 12pin,It includes USBx2,IR,SPDIF,12S;
PCB Size: 40 x 40mm
PCB Layer: 6
Power Supply: DC 5V/2A
OS/Software: u-boot,UbuntuCore-xenial,Debian-jessie
Weight: 7.5g(WITHOUT Pin-headers); 9.7g(WITH Pin-headers);
