Product Descriptions

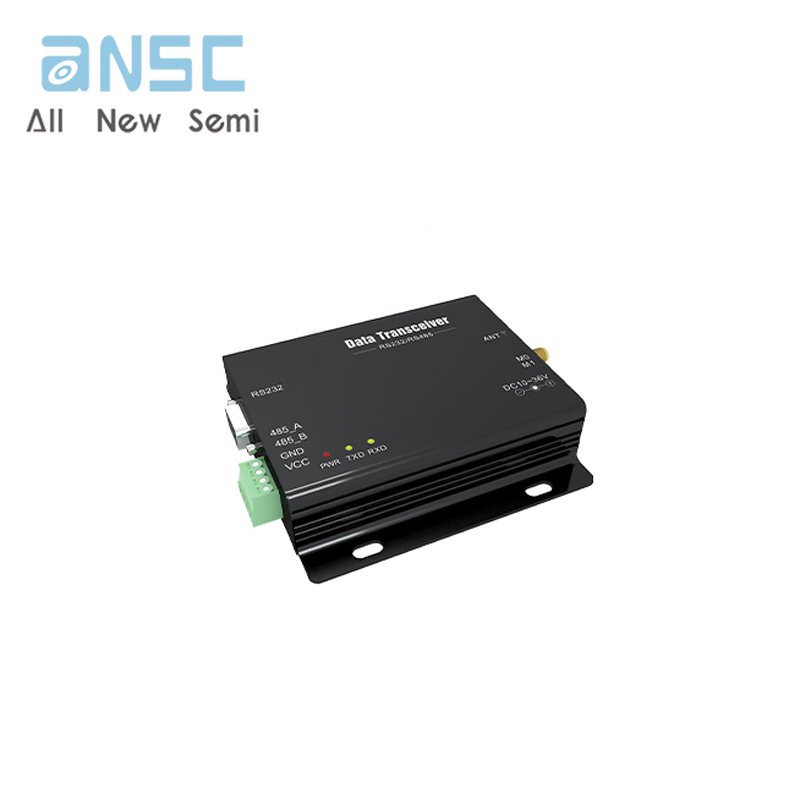

E90-DTU (433C30) is a data transmission station that adopts extremely advanced ultra-narrow band modulation technology. On the original basis, power amplifier (PA) and low noise amplifier (LNA) are built in, so that the maximum transmitting power reaches 0.5w and the receiving sensitivity is also improved to a certain extent. Compared with the products without power amplifier and low noise amplifier, the overall communication stability is greatly improved.
Different from the traditional data transmission station, E90-DTU (433C30) is specially developed for Modbus application scenarios. The feature of unlimited packet length can replace the communication cable, making it the most convenient choice for Modbus wireless upgrade. The station works in 433MHz, frequency band, with communication distance up to 3km. Wireless digital radio as a medium of communication, as well as optical fiber, microwave, open wire, there is a certain scope of application: it provides some special conditions, private network monitoring signals in real-time and reliable data transmission, low cost, easy installation and maintenance, diffraction capability is strong, flexible network structure, the coverage is far characteristic, suitable for some more and occasions, such as dispersion and complex geographical environment with PLC, RTU, rain gauge, level gauge and other data terminal is connected.
Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E90-DTU(433C30) | |
| Working frequency | 425~450.5 MHz | Default: 433MHz |
| Transmitting power | 30 dBm | About 1W |
| Air data rate | N/A | Self-adapted baud rate |
| Test distance | 3000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m. |
| Size | 82 * 62 * 25 mm | Without SMA-K |
| Antenna type | SMA-K | |
| Communication interface | RS232 / RS485 | Standard DB9 Hole/3.81 connecting terminal |
| Baud rate | 9600 | Baud rate: 1200~115200 |
| Buffer | Unlimited data input (baud rate≤57600) | Continuous transmission, no sub-package |
| Working voltage (V) | 10~28 | |
| Emission current (mA) | 277~310 | |
| Working temperature (° C) | -40~+85 |
Actual product photos
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
