Product Description
The ISOW784x is a family of high-performance, quad-channel reinforced digital isolators with an integrated high-efficiency power converter. The integrated DCDC converter provides up to 650 mW of isolated power at high efficiency and can be configured for various input and output voltage configurations. Therefore these devices eliminate the need for a separate isolated power supply in space-constrained isolated designs.
Product Features
100 Mbps data rate
Robust isolation barrier:
– >100-Year projected lifetime at 1 kV RMS
working voltage
– Up to 5000 VRMS isolation rating
– Up to 10 kVPK surge capability
– ±100 kV/μs minimum CMTI
Integrated high-efficiency DC-DC converter with on-chip transformer
3-V to 5.5-V Wide input supply range
Regulated 5-V or 3.3-V output
Up to 0.65-W output power
5 V to 5 V; 5 V to 3.3 V: Available load current ≥ 130 mA
3.3 V to 3.3 V: Available load current ≥ 75 mA
3.3 V to 5 V: Available load current ≥ 40 mA
Soft-start to limit inrush current
Overload and short-circuit protection
Thermal shutdown
Default output: High and Low options
Low propagation delay: 13 ns Typ (5-V supply)
Robust electromagnetic compatibility (EMC)
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 contact discharge
protection across the isolation barrier
– Low emissions
16-pin Wide SOIC package
Extended temperature range: –40°C to +125°C
Safety-related certifications:
– 7071-VPK reinforced isolation per DIN V VDE V
0884-11:2017-01
– 5000-VRMS isolation for 1 minute per UL 1577
– CSA Certification per IEC 60950-1, IEC
62368-1 and IEC 60601-1 end equipment
standards
– CQC Approval per GB4943.1-2011
– TUV Certification according to EN 60950-1 and
EN 61010-1
Product Applications
Industrial automation
Motor control
Grid infrastructure
Medical equipment
Test and measurement
Product Description
| Type | Description |
| ANSC PART# | ANSC- ISOW7842DWE |
| Category | Isolators |
| Digital Isolators | |
| Mfr | - |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/μs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 17.6ns, 17.6ns |
| Pulse Width Distortion (Max) | 4.7ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ISOW7842 |

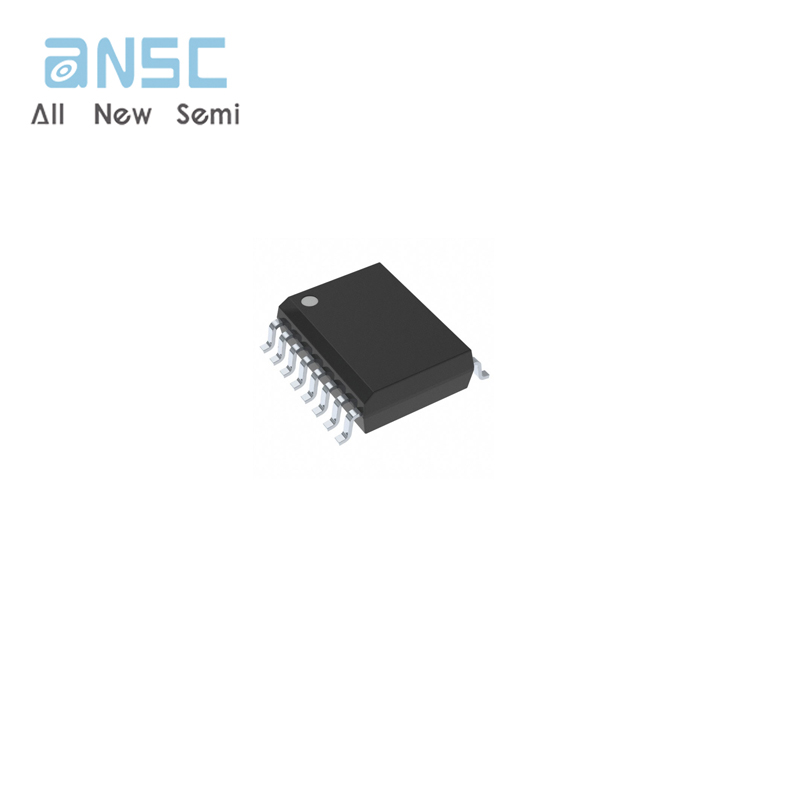

Actual image of the product
