Product Description
The TPSM53603RDAR is a non-isolated point-of-load (PoL) module , designed for board-mount applications. This compact and efficient DC-DC converter is ideal for a wide range of applications, including industrial, commercial, and consumer electronics.
Product Features
Adjustable output voltage
High efficiency of 95%
Pulse width modulation (PWM) control technique
Enable and active high control features
Surface mount package with a moisture sensitivity level of 3 (168 hours)
Operating temperature range of -40°C to 105°C
Compliant with Reach and Pb-free standards
Product Applications
ITE (Commercial) applications, such as industrial control systems, medical devices, and telecommunications equipment
Secondary applications may include automotive, aerospace, and defense systems
Product Description
| Type | Description |
| ANSC PART# | ANSC -TPSM53603RDAR |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.8V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 1 ~ 7V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature |
-40°C ~ 105°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 15-PowerBQFN Module |
| Size / Dimension | 0.22" L x 0.20" W x 0.16" H (5.5mm x 5.0mm x 4.1mm) |
| Supplier Device Package | 15-B3QFN (5x5.5) |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Base Product Number | TPSM53603 |

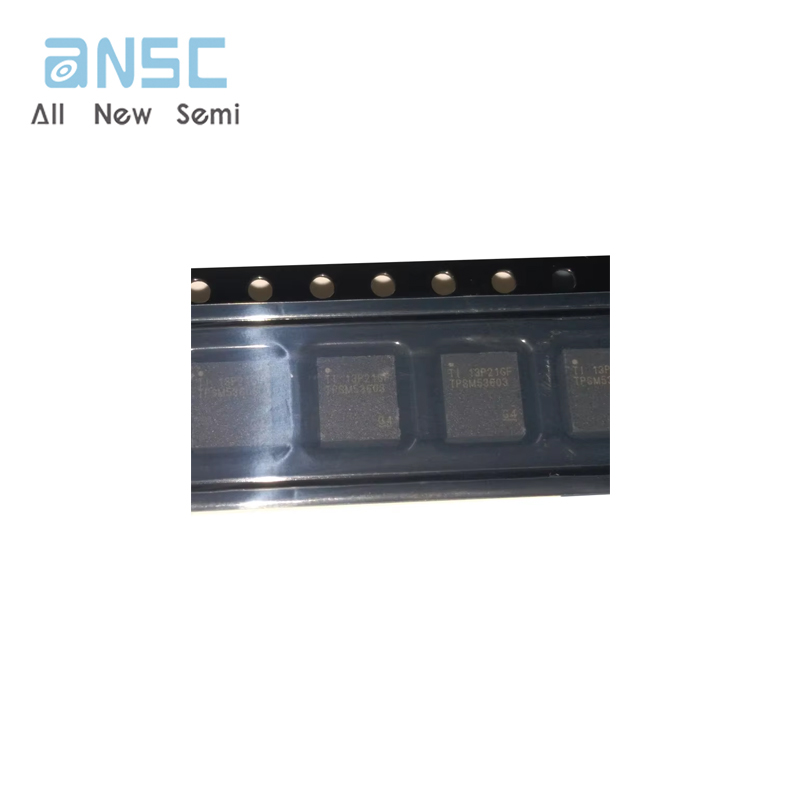

Actual image of the product

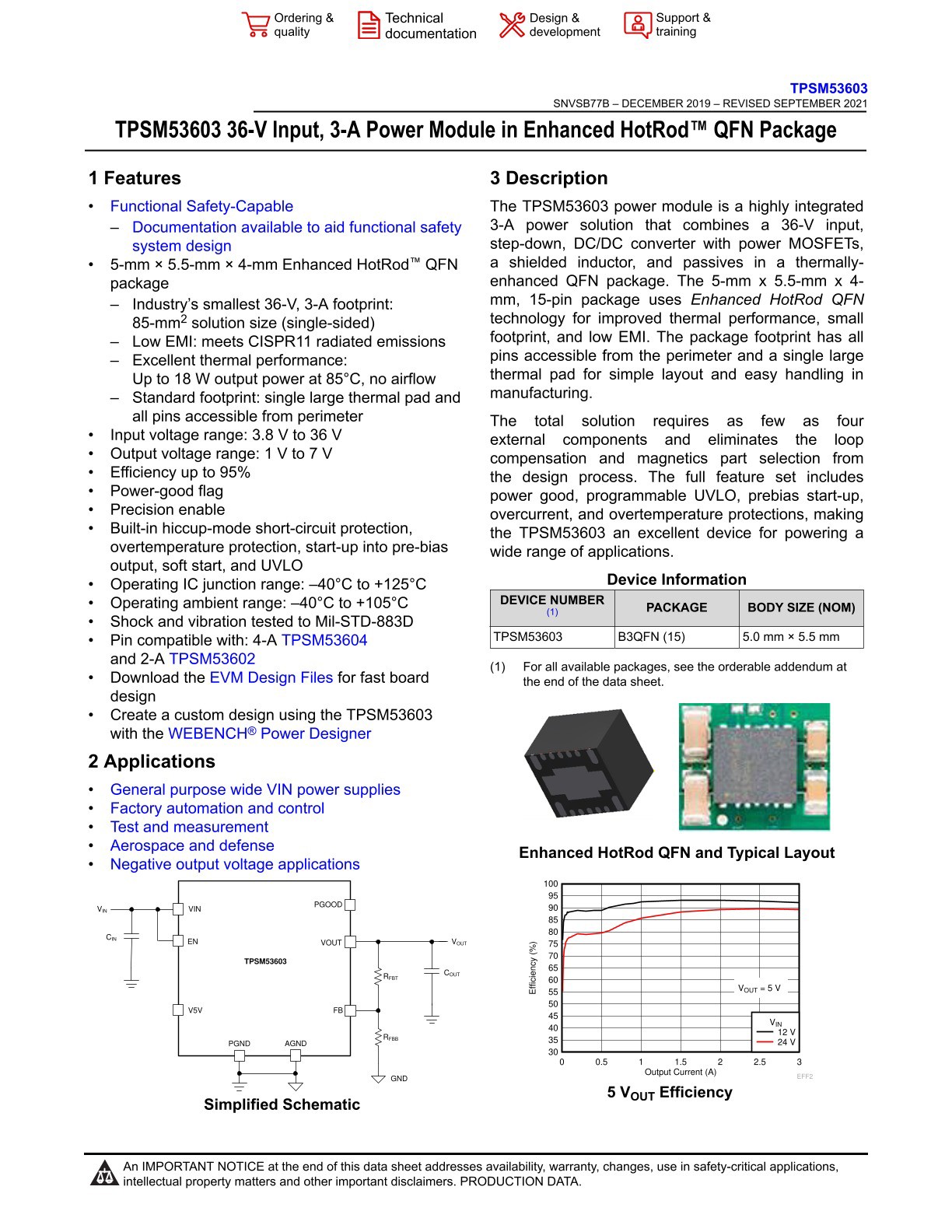

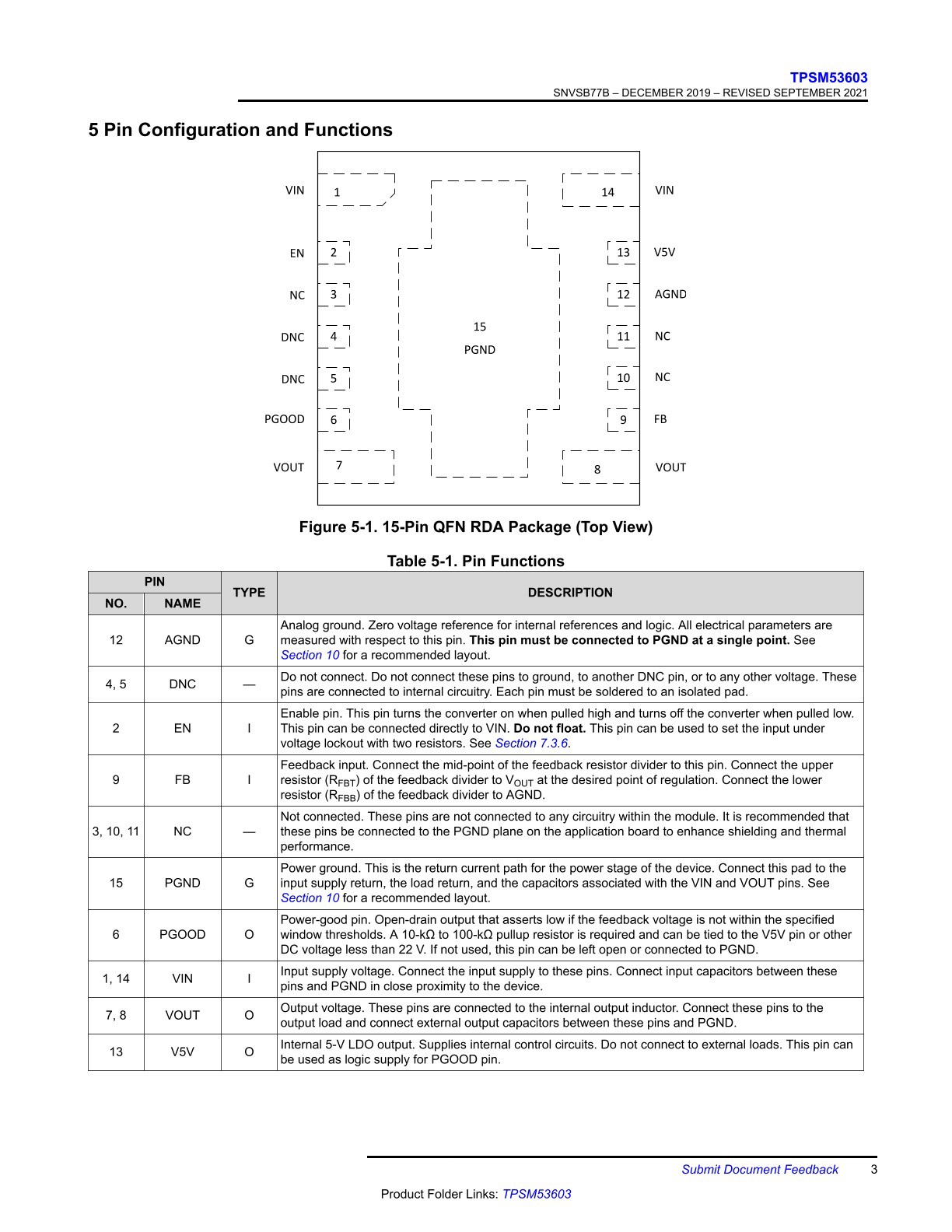

Product datasheet
For more information, please download
