Product Overview
Bulk cases are used for delivery. The Liner regulator IC is packaged in 8-SOIC (0.154, 3.90mm Width) case. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -55°C to +105°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 250mA from this regulator IC. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 150 mV volts on this IC regulator. Chips have 8 pins. In order to meet the operation requirements, its maximal output current reaches 250 mA. It operates in the 25 μA Quiescent Current state. This IC regulator is a part of the - Series of devices. You should use the regulator IC when the temperature is below 85 °C. It is not possible to operate the chip below -40 °C operating temperature. The top supply voltage can be 16.5 V volts. This IC regulator has a tolerance of 0.05, which is quite low.
Product Features
150 mV dropout voltage
The maximum operating temperature of -40 °C
0.05 tolerance
- Protection Features
Positive Output Configuration
Adjustable Output Type
Product Applications
MAX667ESA Linear Voltage Regulators applications.
Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Product Attributes
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - MAX667ESA |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
|
Mfr |
Original |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Obsolete |
|
Output Configuration |
Positive |
|
Output Type |
Adjustable (Fixed) |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
16.5V |
|
Voltage - Output (Min/Fixed) |
1.3V (5V) |
|
Voltage - Output (Max) |
16V |
|
Voltage Dropout (Max) |
0.35V @ 200mA |
|
Current - Output |
250mA |
|
Current - Quiescent (Iq) |
35 μA |
|
Current - Supply (Max) |
20 mA |
|
PSRR |
- |
|
Control Features |
Dropout Detector, Enable, Low Battery Detection |
|
Protection Features |
- |
|
Operating Temperature |
-40°C ~ 85°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SOIC |
|
Base Product Number |
MAX667 |

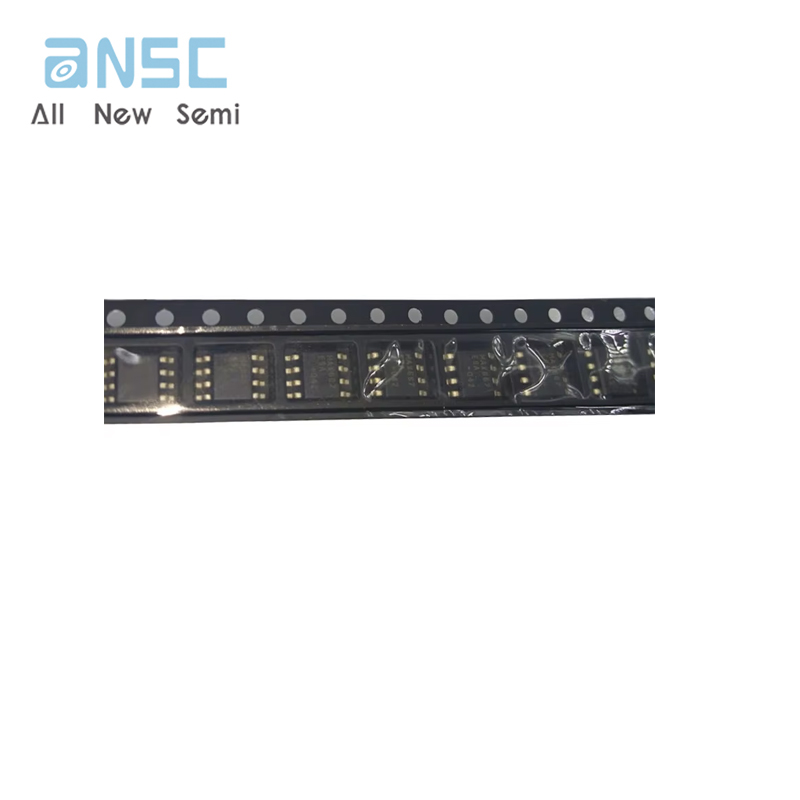

Actual image of the product

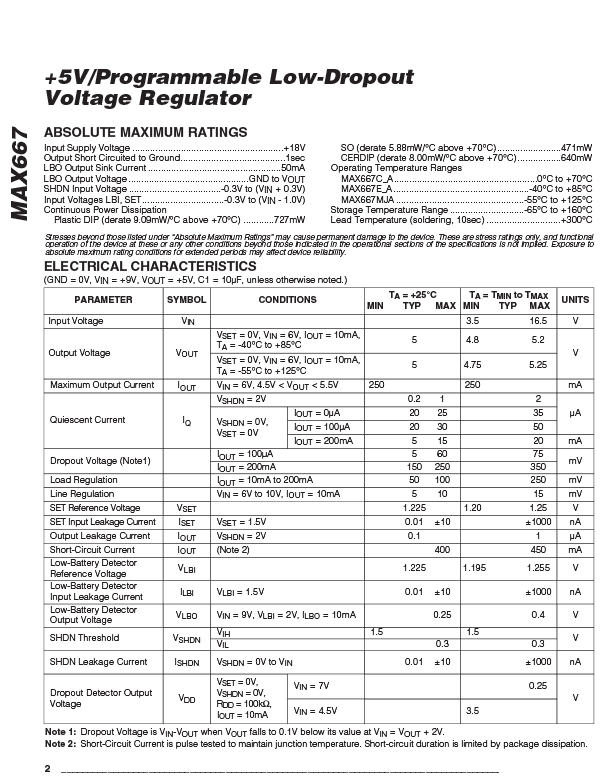

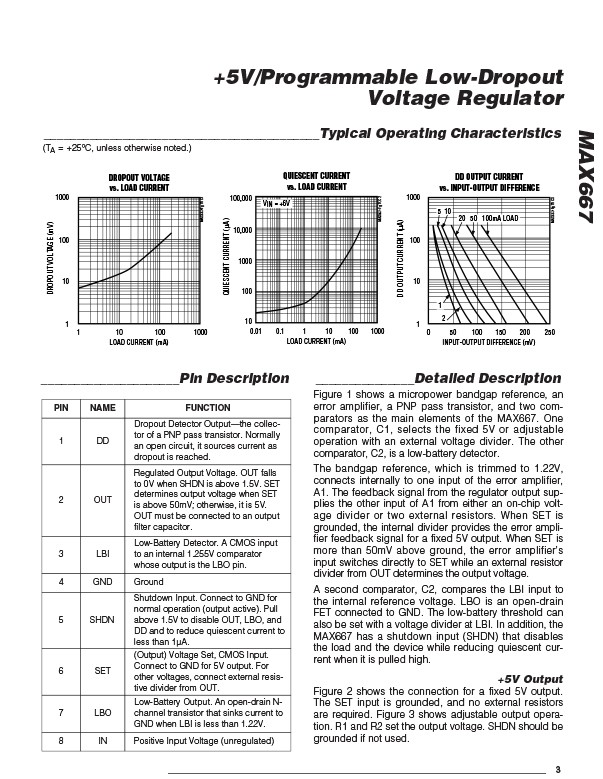

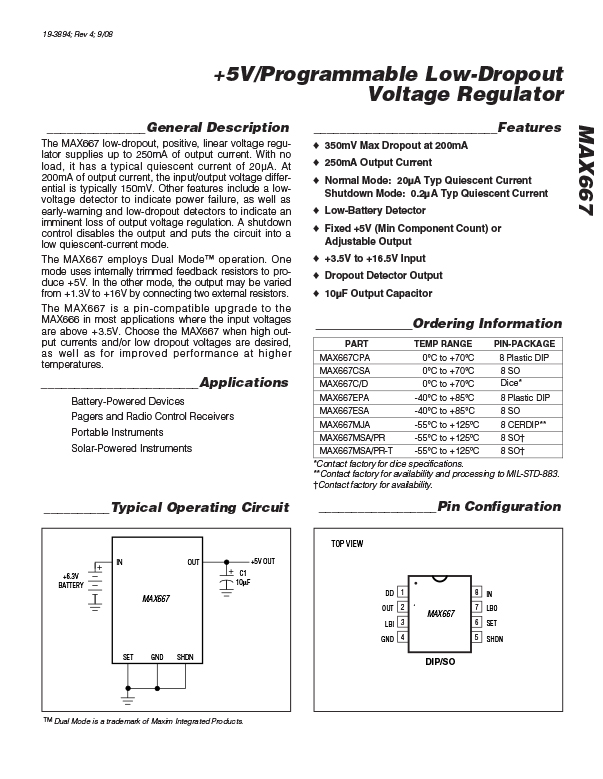

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
