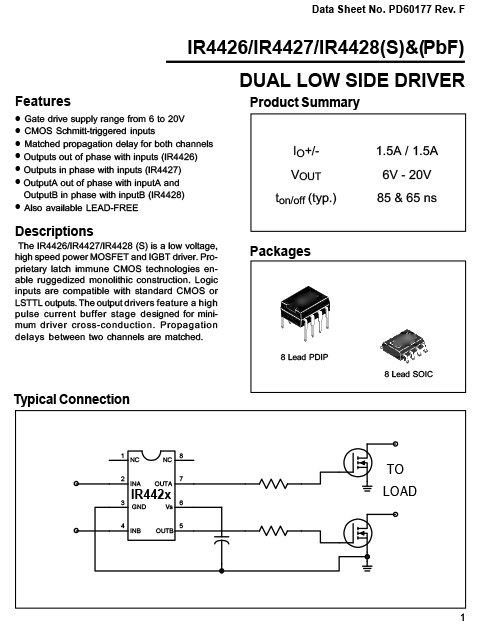

IO+/- 1.5A / 1.5A VOUT 6V - 20V ton/off(typ.) 85 & 65 ns Descriptions The IR4426/IR4427/IR4428 (S) is a low voltage, high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched. Features ?Gate drive supply range from 6 to 20V ?CMOS Schmitt-triggered inputs ?Matched propagation delay for both channels ?Outputs out of phase with inputs (IR4426) ?Outputs in phase with inputs (IR4427) ?OutputA out of phase with inputA and OutputB in phase with inputB (IR4428) ?Also available LEAD-FREE |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- IR4428S |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | MS-012AA, SOIC-8 |
| Pin Count | 8 |
| High Side Driver | NO |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| Length | 4.9 mm |
| Moisture Sensitivity Level | 2 |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max |
125 °C |
| Operating Temperature-Min |
-40 °C |
| Output Peak Current Limit-Nom | 3.3 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Supply Voltage-Max | 20 V |
| Supply Voltage-Min | 6 V |
| Supply Voltage-Nom | 15 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Turn-off Time |
0.15 μs |
| Turn-on Time |
0.16 μs |
| Width | 3.9 mm |

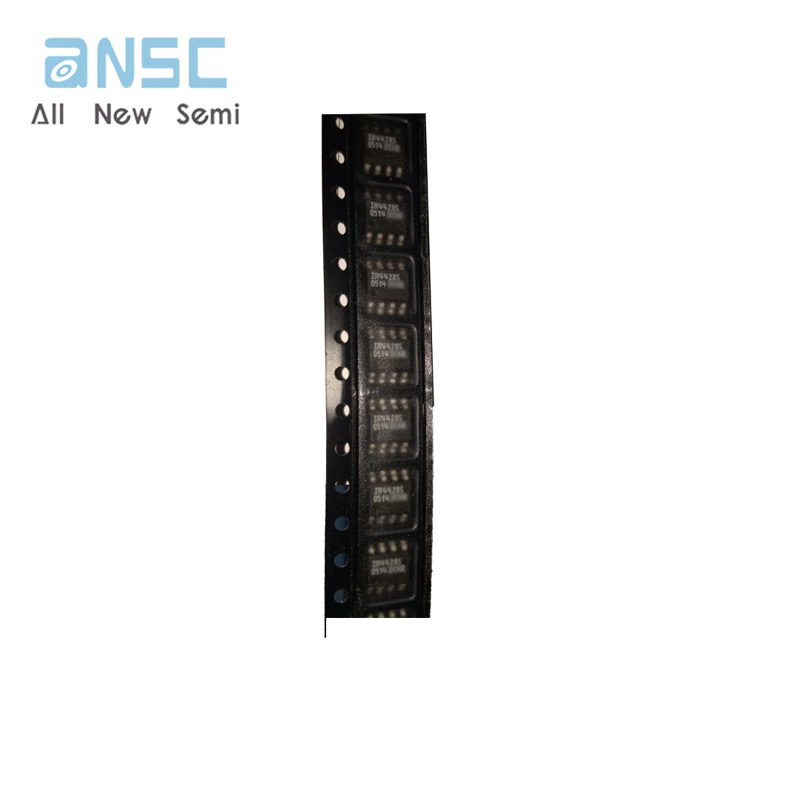

Actual image of the product

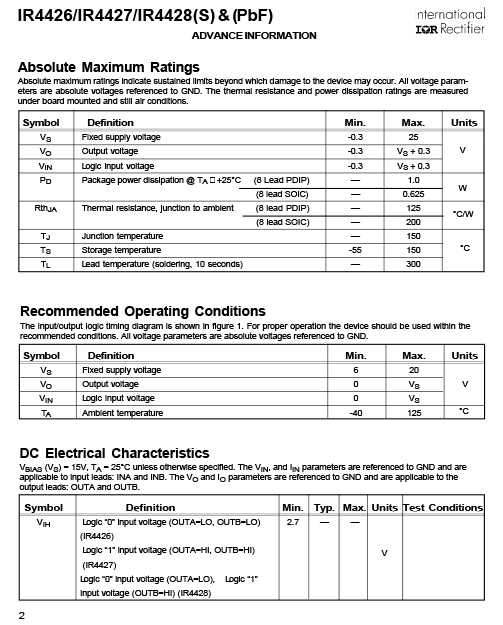

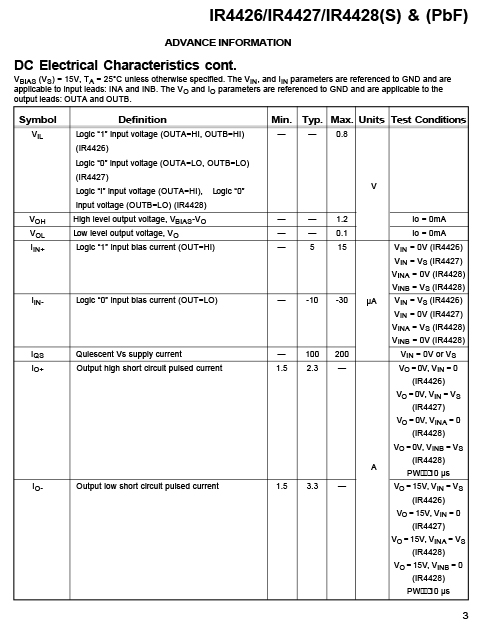

Product datasheet
