Product Description
| Type# | Description |
| ANSC PART# | ANSC- DS26LS31MJ |
| Ihs Manufacturer | Original |
| Package Description | DIP, DIP16,.3 |
| Differential Output | YES |
| Driver Number of Bits | 4 |
| High Level Input Current-Max | 0.00002 A |
| Input Characteristics | STANDARD |
| Interface IC Type | LINE DRIVER |
| Interface Standard | EIA-422; FED STD 1020 |
| JESD-30 Code | R-GDIP-T16 |
| JESD-609 Code | e0 |
| Length | 19.43 mm |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Out Swing-Min | 2 V |
| Output Characteristics | 3-STATE |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Receive Delay-Max | |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 60 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Transmit Delay-Max | 15 ns |
| Width | 7.62 mm |

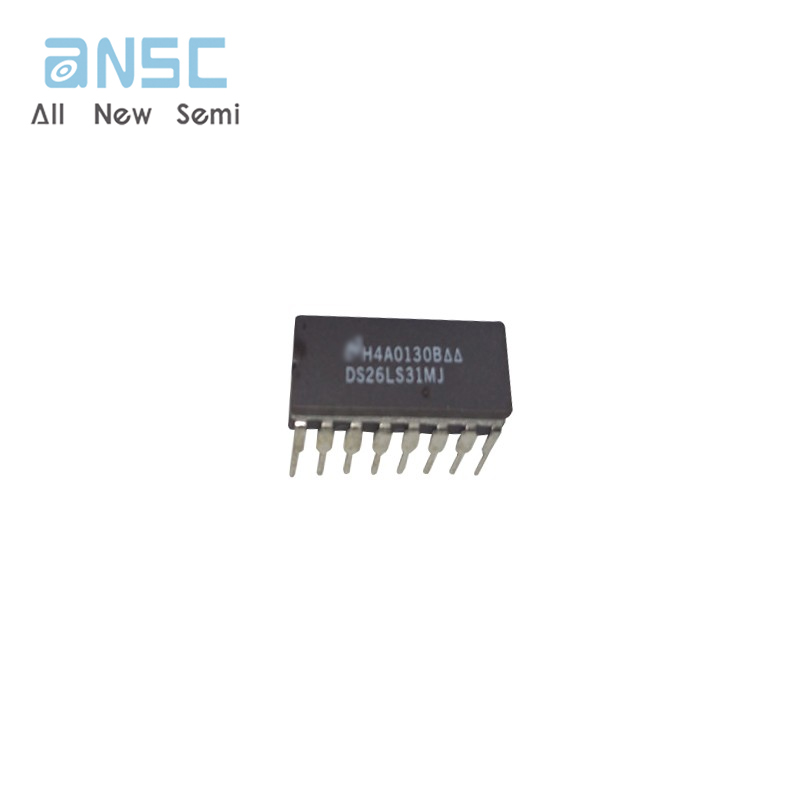

Actual image of the product

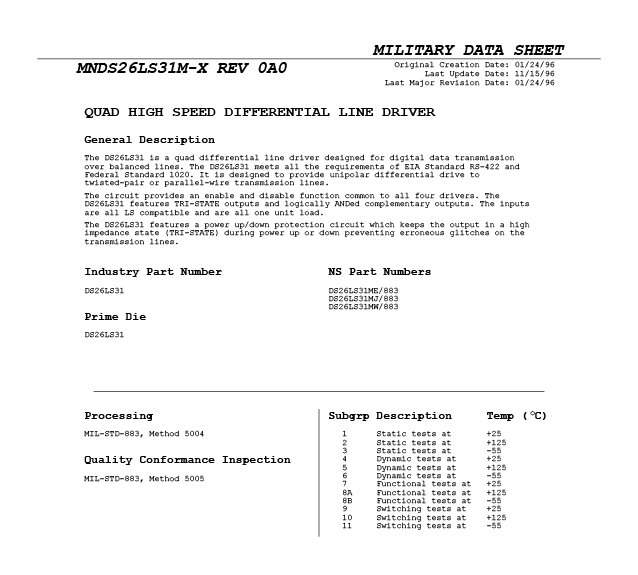

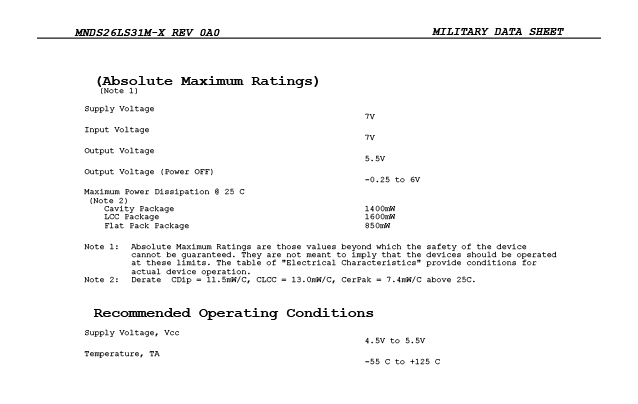

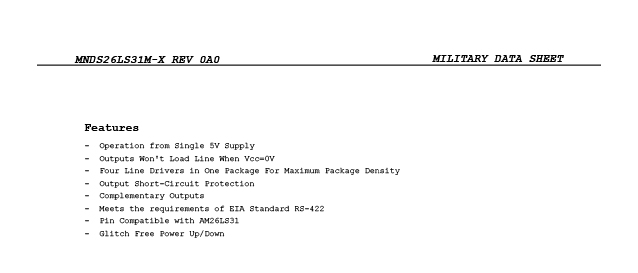

Product datasheet
For more information, please download
