Product Details
|

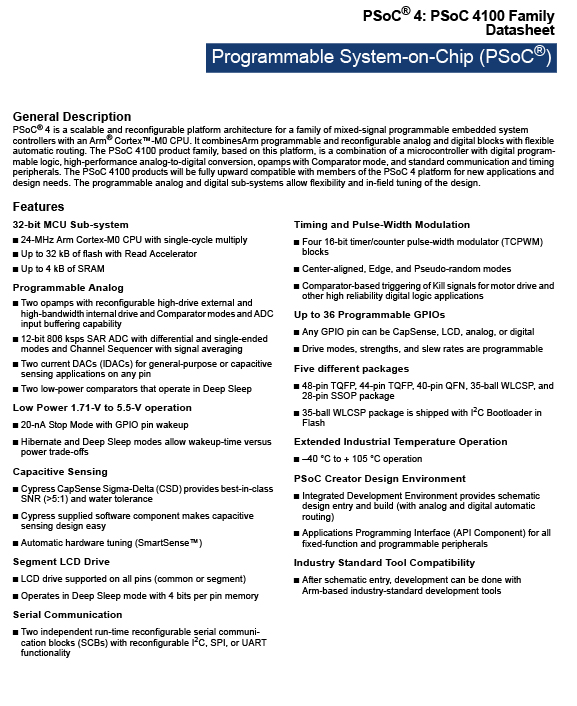

General Description PSoC? 4 is a scalable and reconfigurable platform architecture for a family of mixed-signal programmable embedded system controllers with an ARM? Cortex?-M0 CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4100 product family, based on this platform, is a combination of a microcontroller with digital program mable logic, high-performance analog-to-digital conversion, opamps with Comparator mode, and standard communication and timing peripherals. The PSoC 4100 products will be fully upward compatible with members of the PSoC 4 platform for new applications and design needs. The programmable analog and digital sub-systems allow flexibility and in-field tuning of the design. Features 32-bit MCU Sub-system ■ 24-MHz ARM Cortex-M0 CPU with single-cycle multiply ■ Up to 32 kB of flash with Read Accelerator ■ Up to 4 kB of SRAM Programmable Analog ■ Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input buffering capability ■ 12-bit 806 ksps SAR ADC with differential and single-ended modes and Channel Sequencer with signal averaging ■ Two current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin ■ Two low-power comparators that operate in Deep Sleep Power 1.71-V to 5.5-V operation ■ 20-nA Stop Mode with GPIO pin wakeup ■ Hibernate and Deep Sleep modes allow wakeup-time versus power trade-offs Capacitive Sensing ■ Cypress CapSense Sigma-Delta (CSD) provides best-in-class SNR (>5:1) and water tolerance ■ Cypress supplied software component makes capacitive sensing design easy ■ Automatic hardware tuning (SmartSense?) Segment LCD Drive ■ LCD drive supported on all pins (common or segment) ■ Operates in Deep Sleep mode with 4 bits per pin memory Serial Communication ■ Two independent run-time reconfigurable serial communi cation blocks (SCBs) with reconfigurable I2C, SPI, or UART functionality Timing and Pulse-Width Modulation ■ Four 16-bit timer/counter pulse-width modulator (TCPWM) blocks ■ Center-aligned, Edge, and Pseudo-random modes ■ Comparator-based triggering of Kill signals for motor drive and other high reliability digital logic applications (Continue ...) |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CY8C4125PVI-482T |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Original |
| Series |
PSOC? 4 CY8C4100 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor |
ARM? Cortex?-M0 |
| Core Size | 32-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 8x12b SAR; D/A 2xIDAC |
| Oscillator Type | Internal |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Base Product Number | CY8C4125 |
Actual image of the product
Product datasheet
For more information, please download
