Product Details
|

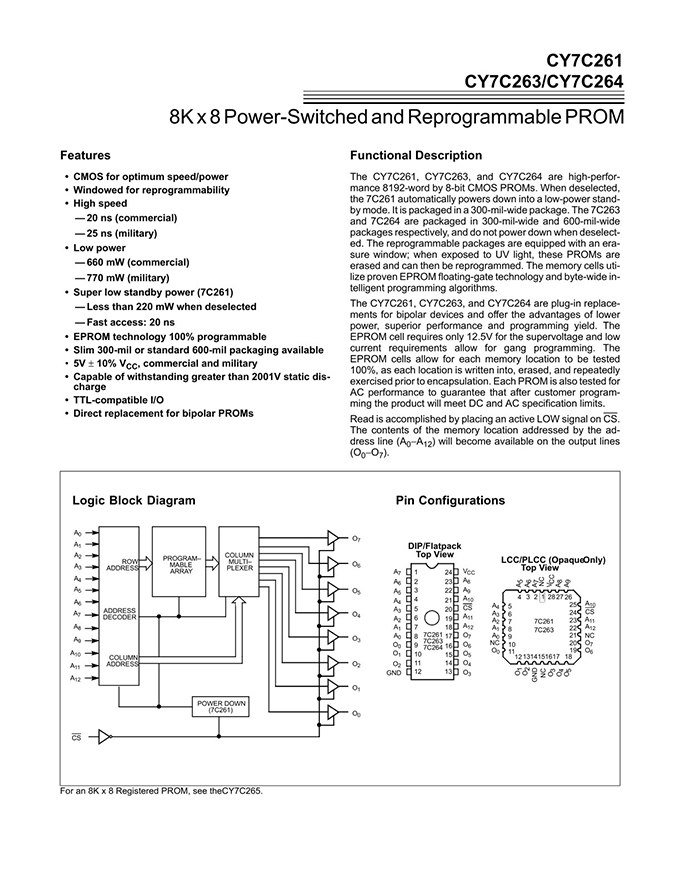

Functional Description The CY7C261, CY7C263, and CY7C264 are high-performance 8192-word by 8-bit CMOS PROMs. When deselected, the CY7C261 automatically powers down into a low-power standby mode. It is packaged in a 300-mil-wide package. The CY7C263 and CY7C264 are packaged in 300-mil-wide and 600-mil-wide packages respectively, and do not power down when deselected. The reprogrammable packages are equipped with an erasure window; when exposed to UV light, these PROMs are erased and can then be reprogrammed. The memory cells utilize proven EPROM floating-gate technology and byte-wide intelligent programming algorithms. Features ? CMOS for optimum speed/power ? Windowed for reprogrammability ? High speed — 20 ns (Commercial) — 25 ns (Military) ? Low power — 660 mW (Commercial) — 770 mW (Military) ? Super low standby power (7C261) — Less than 220 mW when deselected — Fast access: 20 ns ? EPROM technology 100% programmable ? Slim 300-mil or standard 600-mil packaging available ? 5V ± 10% VCC, commercial and military ? Capable of withstanding greater than 2001V static discharge ? TTL-compatible I/O ? Direct replacement for bipolar PROMs |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- CY7C263-35WC |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | 0.300 INCH, WINDOWED, CERDIP-24 |
| Pin Count | 24 |
| Access Time-Max | 35 ns |
| Additional Feature | POWER SWITCHED PROM |
| I/O Type | COMMON |
| Length | 31.877 mm |
| Memory Density | 65536 bit |
| Memory IC Type | UVPROM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Number of Words | 8192 words |
| Number of Words Code | 8000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max |
70 °C |
| Operating Temperature-Min | |
| Organization | 8KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | WDIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE, WINDOW |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Standby Current-Max | 0.03 A |
| Supply Current-Max | 0.1 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

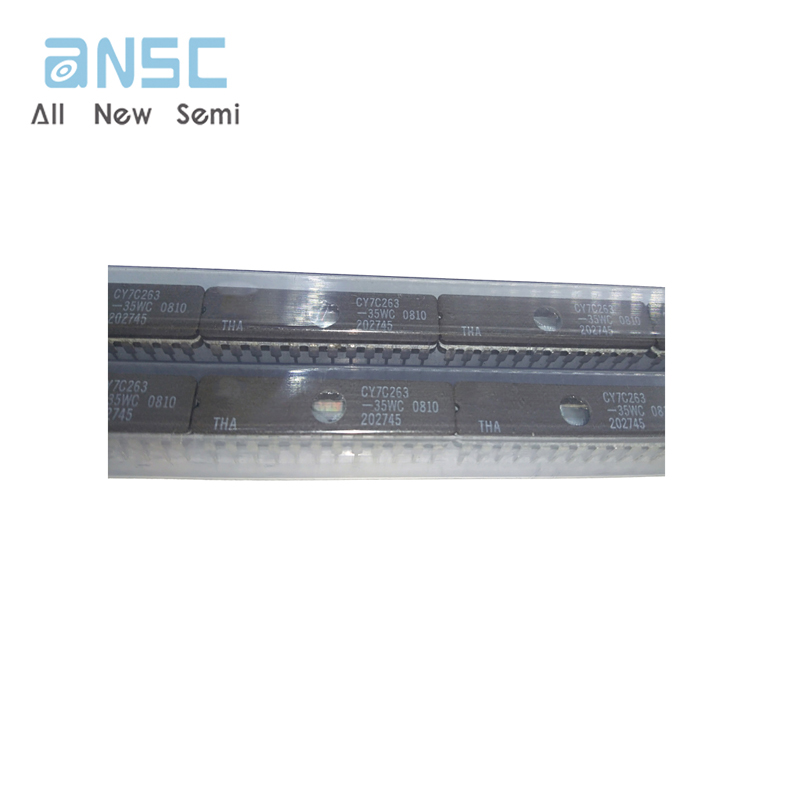

Actual image of the product

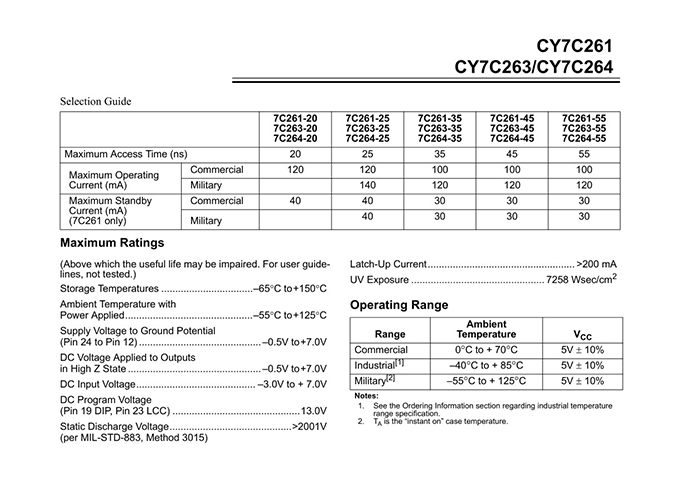

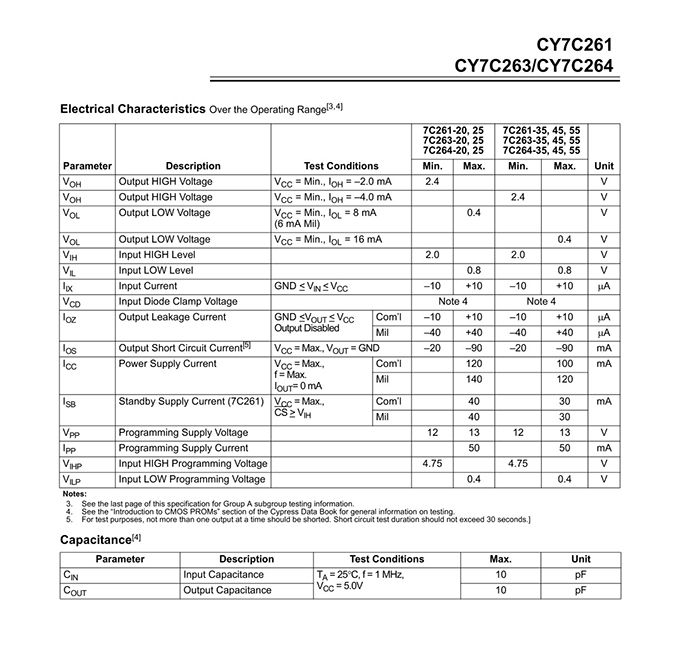

Product datasheet
