Product Overview
As far as its memory type goes, it falls into the Non-Volatile category. You can get memory ics in a Tube case. 8-SOIC (0.154, 3.90mm Width) case encloses it. There is 32Kb 4K x 8 of memory on the chip. The device uses a mainstream EEPROM-format memory. Suitable for use in a wide range of demanding applications, this device offers an extended operating temperature range of -40°C~85°C TA. There is a voltage range of 2.5V~5.5V for the supply voltage. It is recommended that the mounting type be Surface Mount. There are 8 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. The memory device is designed to be supplied with an 2.7V volt power supply in order to operate properly. It has a clock frequency of 1MHz. When choosing similar parts, M24C32 is frequently referred to as the device's base part number. In this ic memory chip, there is an 8-pin package that encloses the device. It is worth noting that this memory device has 8 pins, which indicates it has 8 memory locations. As a result of the Surface Mount mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. As far as the nominal supply current of this memory component is concerned, it is rated at 5mA. Integrated into this memory is a I2C-type serial bus that facilitates data transmission to the CPU.
Product Features
Package / Case: 8-SOIC (0.154, 3.90mm Width)
8 Pins
Product Applications
M24C32-WMN6P Memory applications.
-
multimedia computers
-
networking
-
personal computers
-
servers
-
supercomputers
-
telecommunications
-
workstations,
-
DVD disk buffer
-
data buffer
-
nonvolatile BIOS memory
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- M24C32-WMN6P |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Not For New Designs |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 32Kbit |
| Memory Organization | 4K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 1 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 450 ns |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | M24C32 |

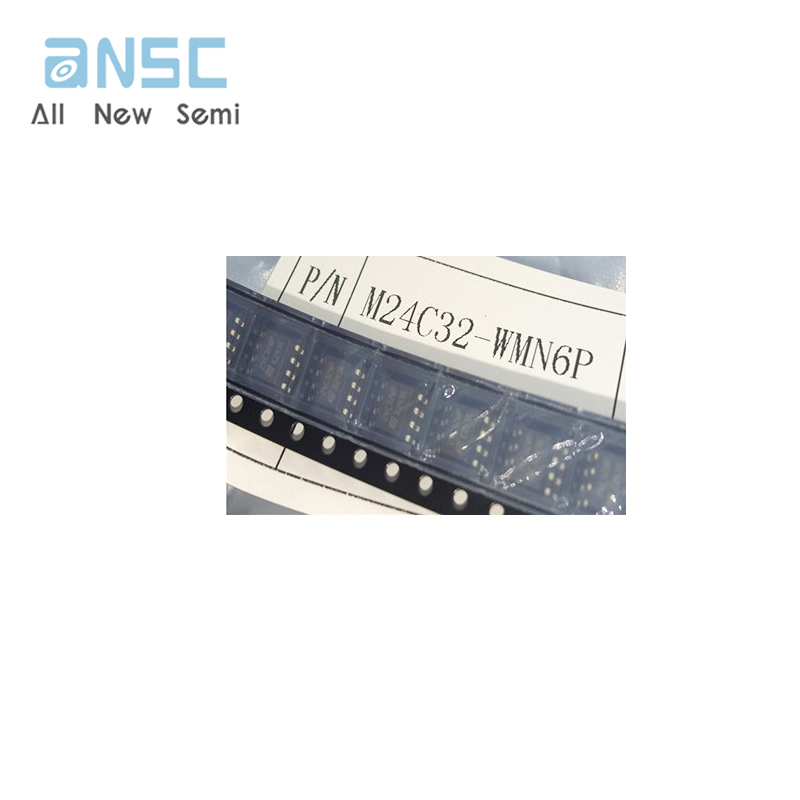

Actual image of the product

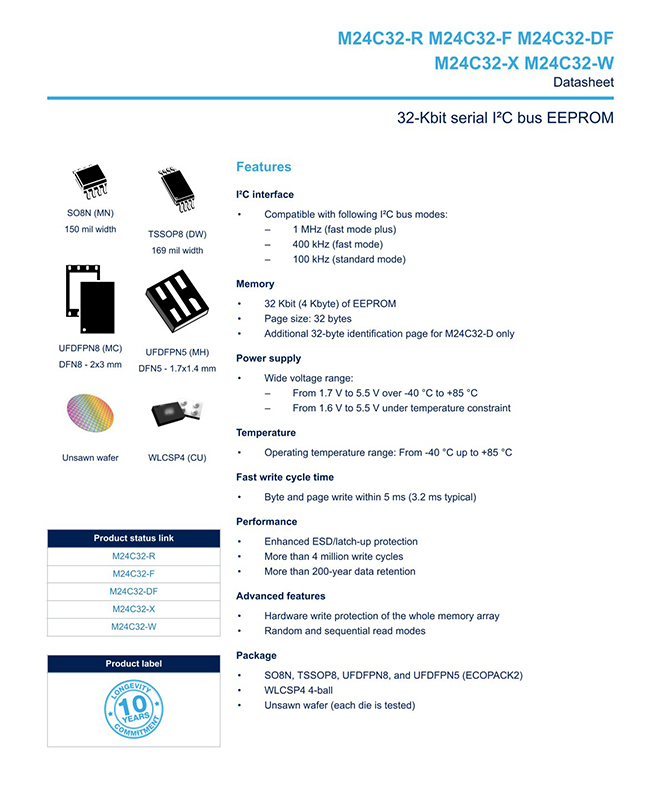

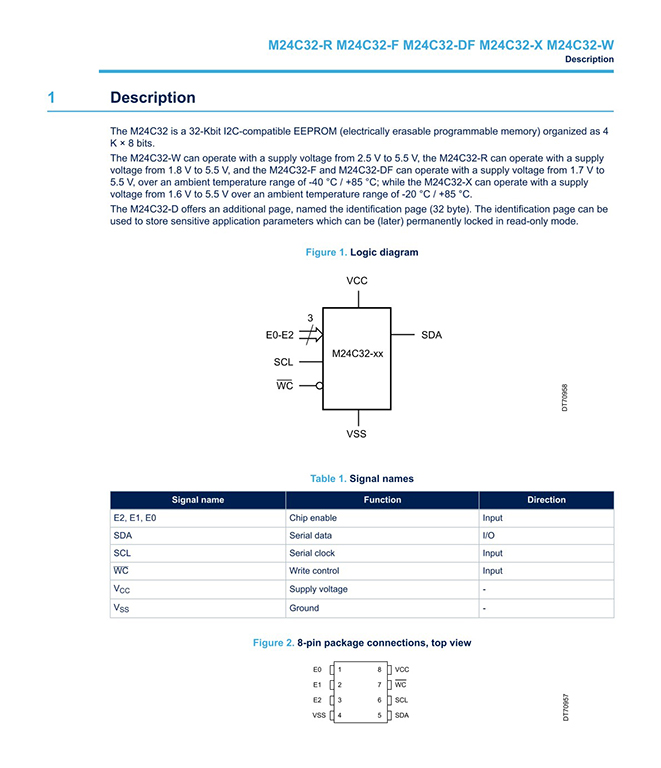

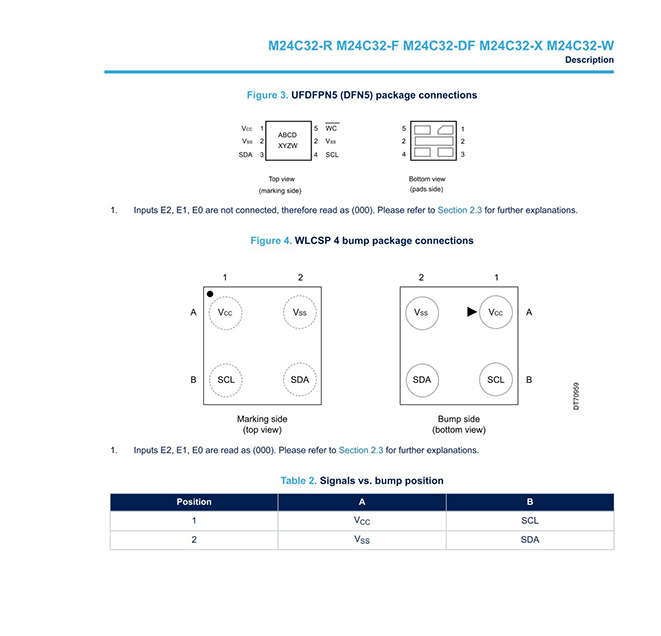

Product datasheet
For more information, please download
