Product Details
|
LM358DT Description The LM358DT is a low-power dual Operational Amplifier with low input bias current. These circuits consist of two independent, high-gain, internally frequency-compensated op-amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage. LM358DT Features Internally frequency-compensated 100dB Large DC voltage gain Very low supply current per channel essentially independent of supply voltage Input common-mode voltage range includes negative rails Differential input voltage range equal to the power supply voltage Large output voltage swing 0V to (VCC+ -1.5V) LM358DT Applications Enterprise systems Data center & enterprise computing Enterprise machine Enterprise projectors Personal electronics Connected peripherals & printers Data storage Gaming Home theater & entertainment Mobile phones PC & notebooks Portable electronics Tablets TV Wearables (non-medical) Communications equipment Broadband fixed line access Datacom module Wired networking Wireless infrastructure |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM358DT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
|
Instrumentation, OP Amps, Buffer Amps |
|
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate |
0.6V/μs |
| Gain Bandwidth Product | 1.1 MHz |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 700μA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature |
0°C ~ 70°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM358 |

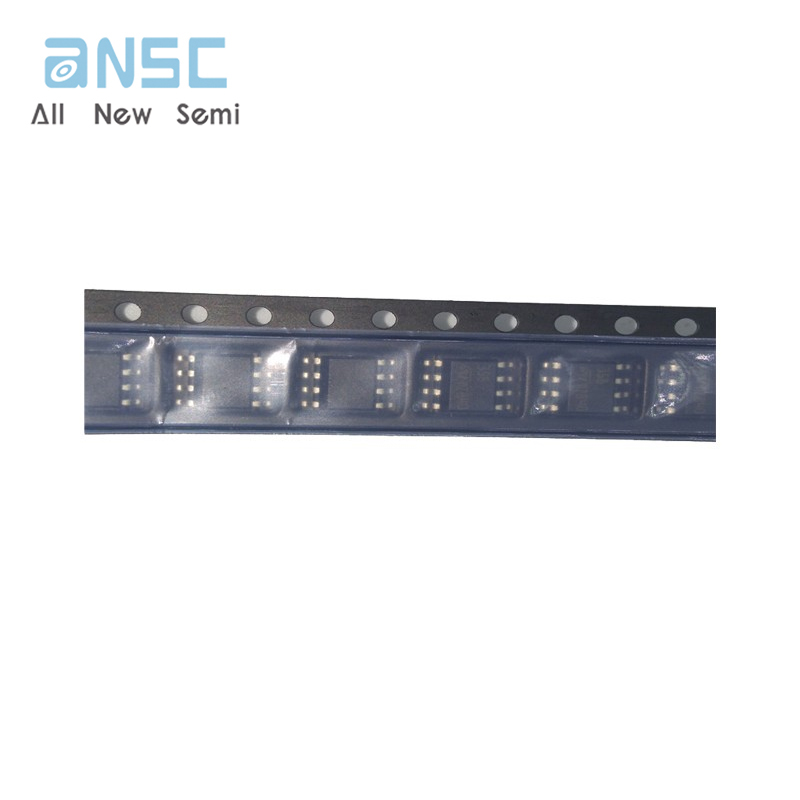

Actual image of the product

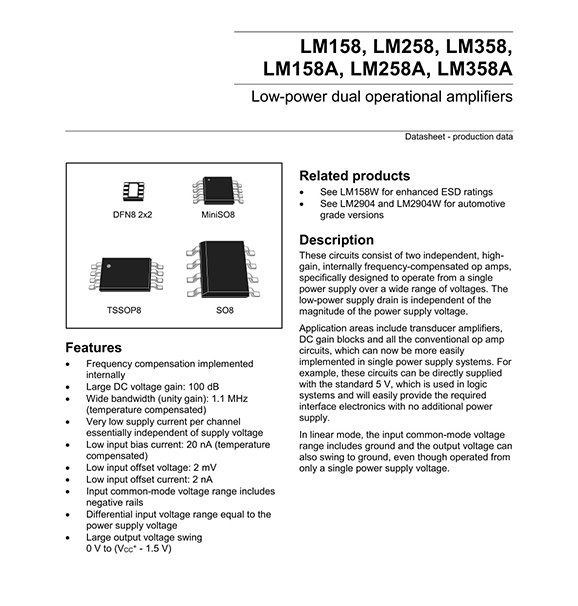

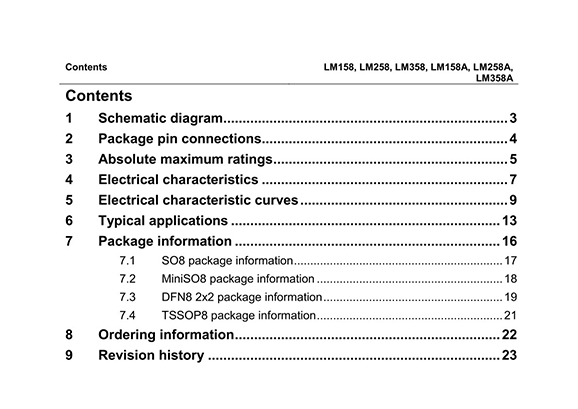

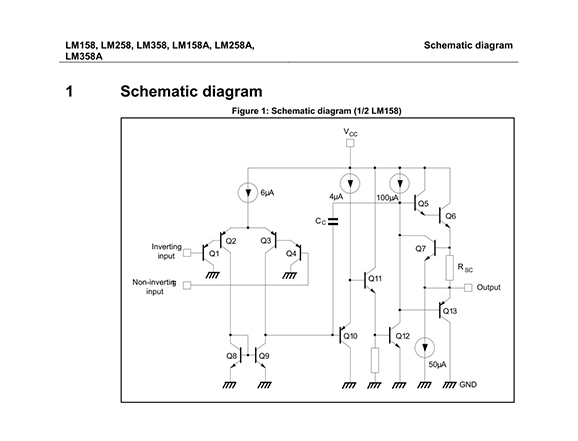

Product datasheet
For more information, please download
