Product Details
|
Description The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (VREF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT- 223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. Features ? Low dropout voltage (1 V typ.) ? 2.85 V device performances are suitable for SCSI-2 active termination ? Output current up to 800 mA ? Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V ? Adjustable version availability (VREF = 1.25 V) ? Internal current and thermal limit ? Available in ± 1 % (at 25 °C) and 2 % in full temperature range ? Supply voltage rejection: 75 dB (typ.) |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LD1117DT25CTR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | LD1117 |

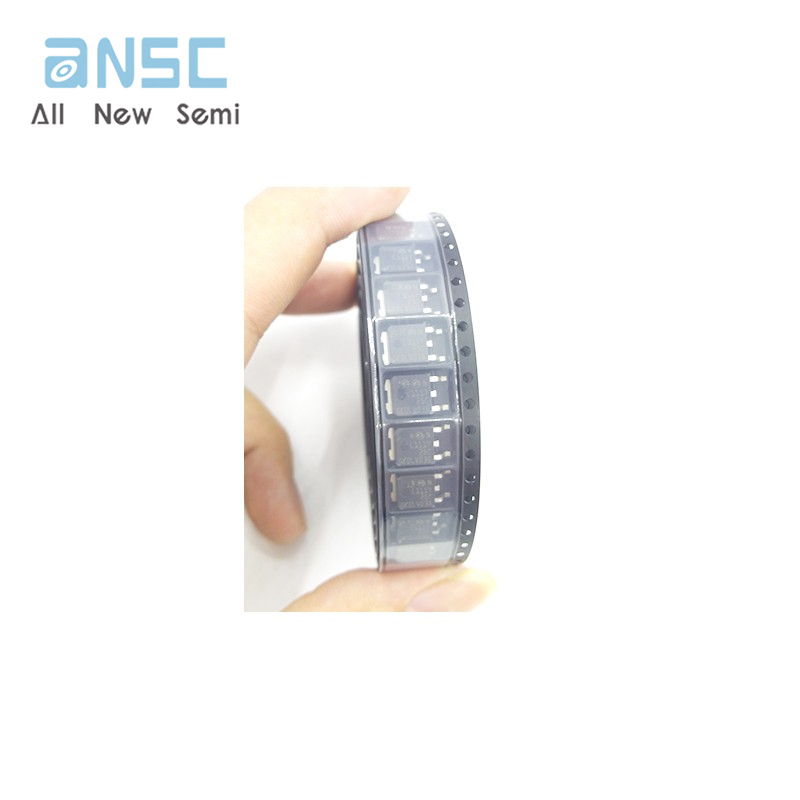

Product Photos

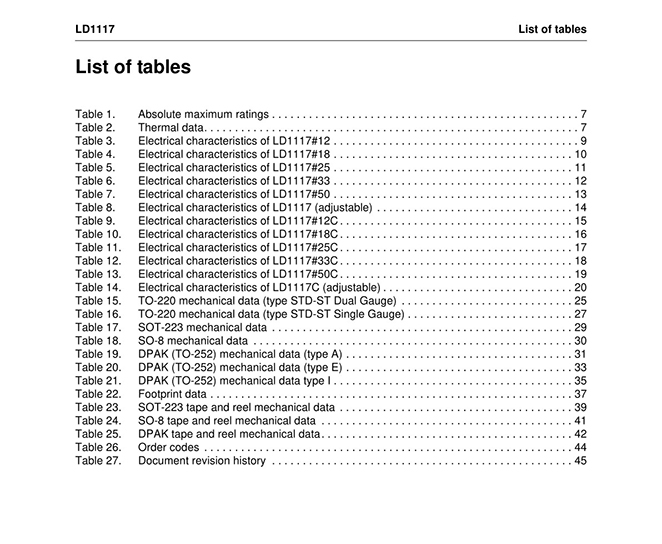

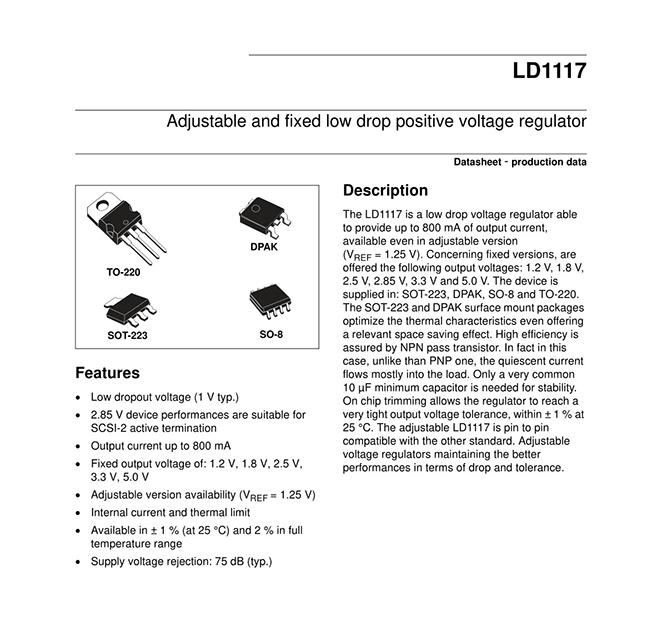

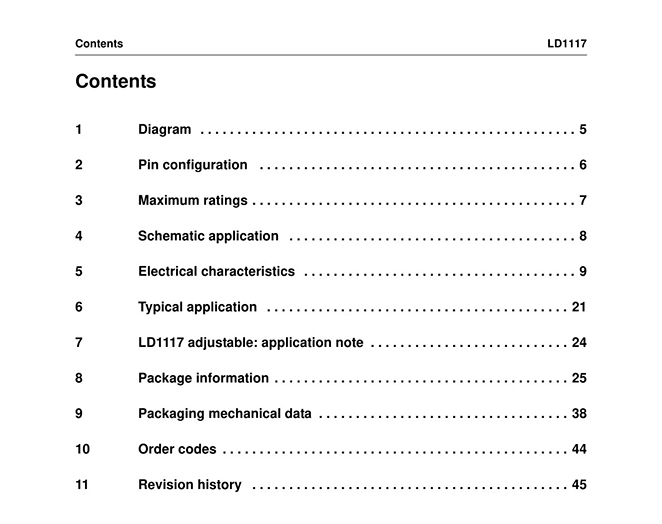

Product datasheet
