Product Details
|
Power Factor Corrector. Fully compatible with the standard version, it has a superior performant multiplier making the device capable of working in wide input voltage range applications (from 85V to 265V) with an excellent THD. Furthermore the start up current has been reduced at few tens of mA and a disable function has been implement ed on the ZCD pin, guaranteeing lower current consumption in stand by mode. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- L6561D |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| PFC (Power Factor Correction) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Not For New Designs |
| Mode | Discontinuous (Transition) |
| Frequency - Switching | - |
| Current - Startup |
50 μA |
| Voltage - Supply | 11V ~ 18V |
| Operating Temperature |
-25°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | L6561 |

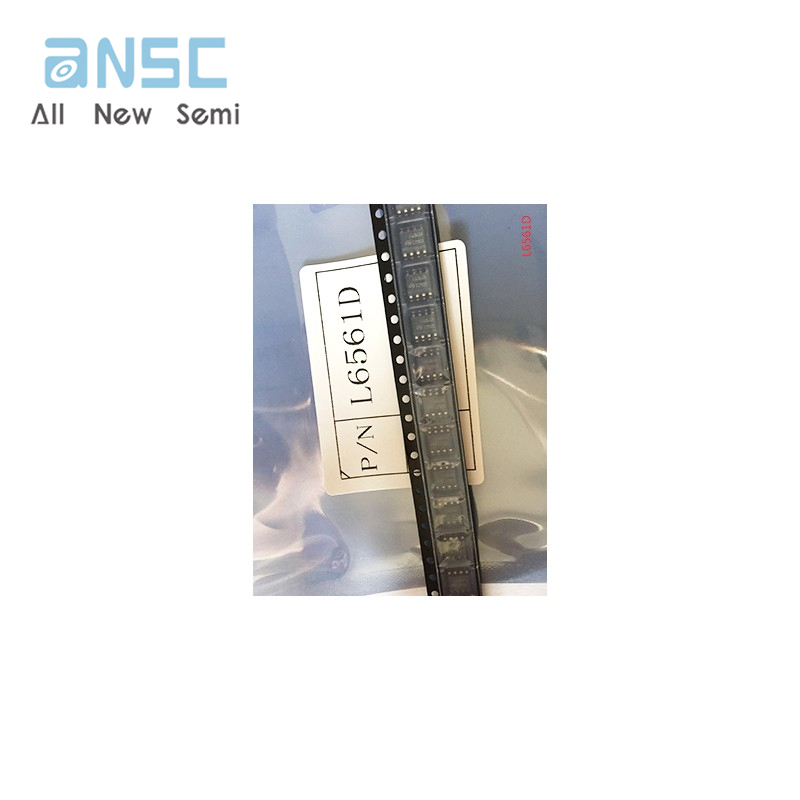

Product Photos

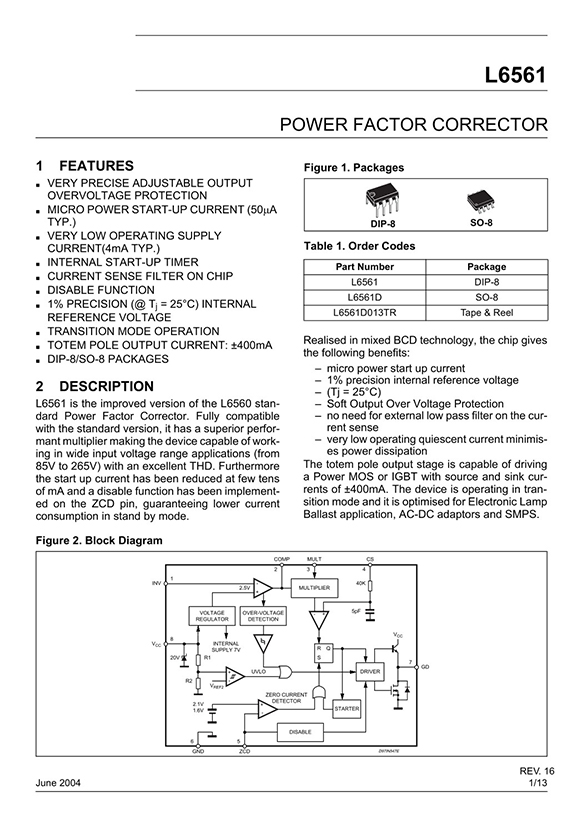

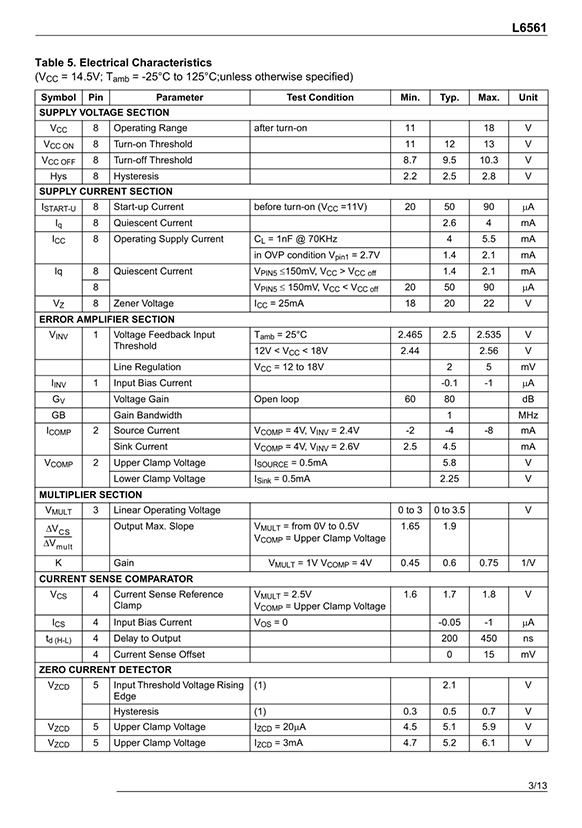

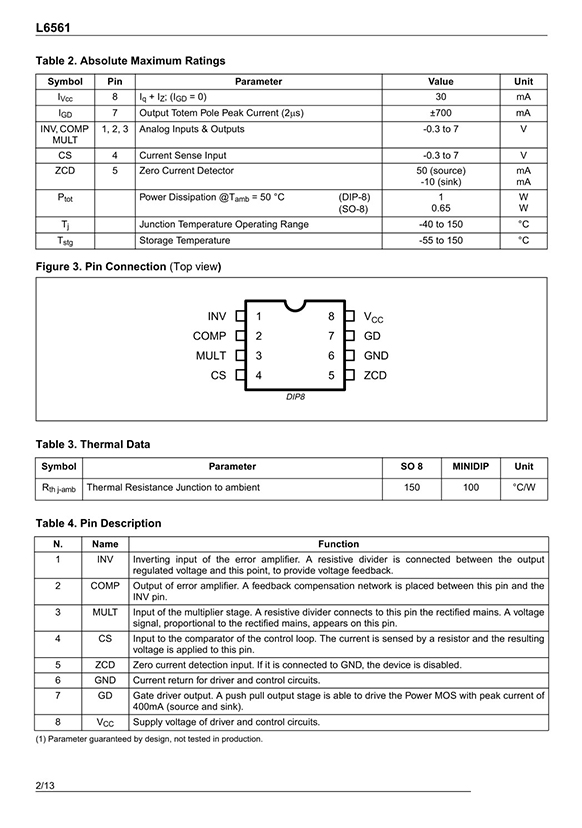

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
