Product Details
Features
? Microprocessor compatible
? Total circuit integration on-chip includes:
- Digit and segment drivers
- All multiplex scan circuitry
- 8-Byte static display memory
- 7-Segment Hexadecimal and Code B decoders
? Output drive suitable for LED displays directly
? Common anode and common cathode versions
? Single 5V supply required
? Data retention to 2V Supply
? Shutdown feature - turns off display and puts chip into low
power dissipation mode
? Sequential and random access versions
? Decimal point drive on each digit
Related Literature
? Technical Brief TB363, “Guidelines for Handling and Processing
Moisture Sensitive Surface Mount Devices (SMDs)”
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -ICM7218CIJI |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Display Drivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Display Type | LED |
| Configuration | 7 Segment |
| Interface | Parallel |
| Digits or Characters | 8 Digits |
| Current - Supply | 2.5 mA |
| Voltage - Supply | 4V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CerDip |
| Base Product Number | ICM7218 |

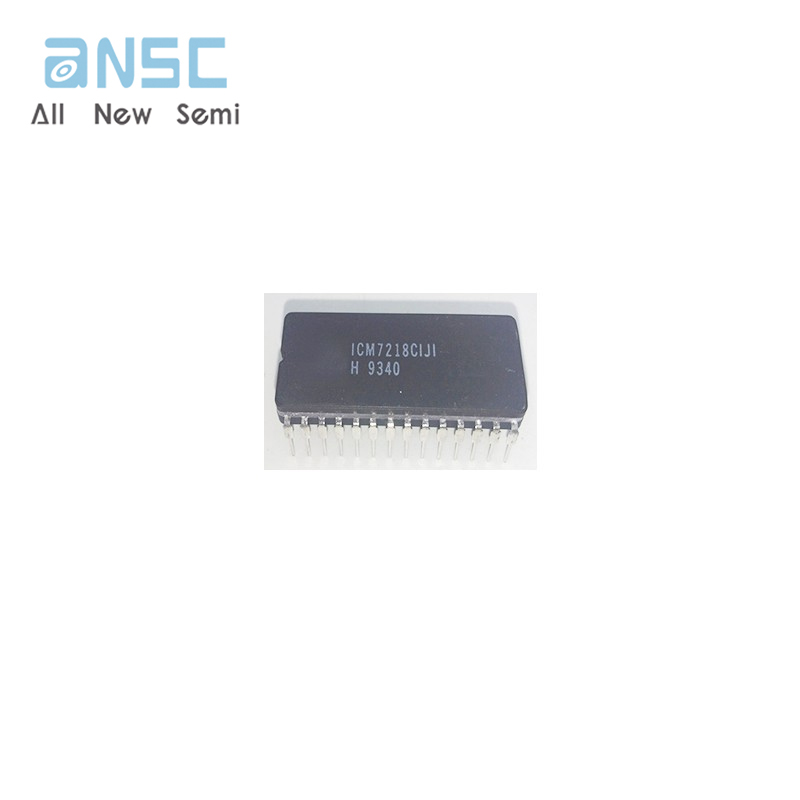

Actual image of the product

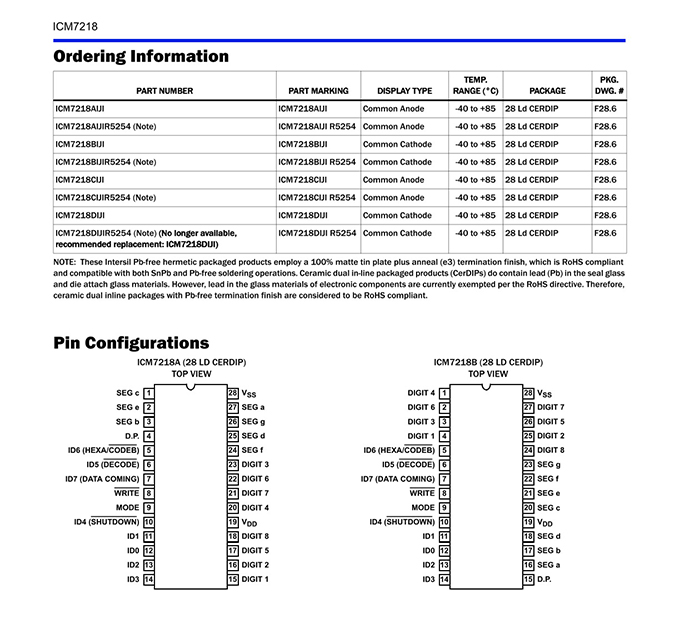

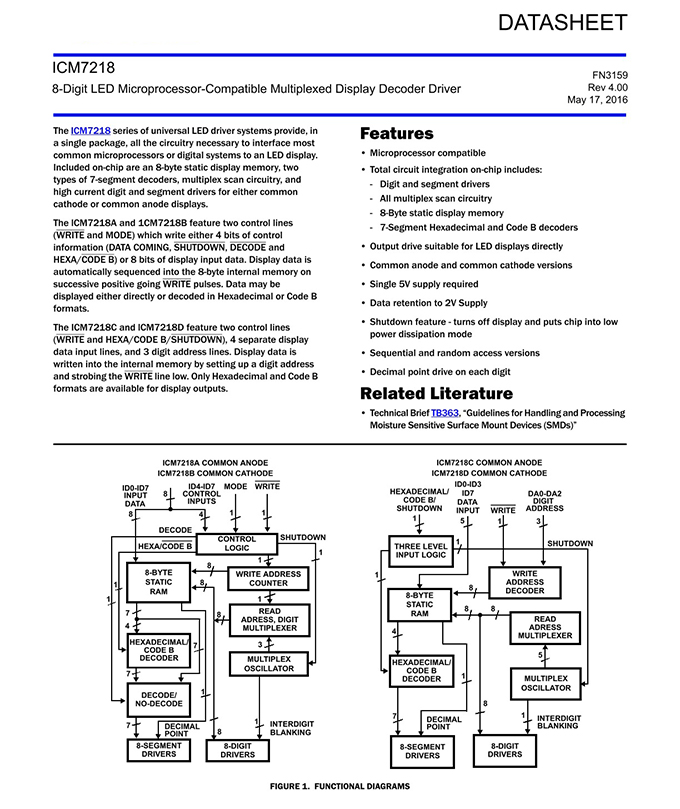

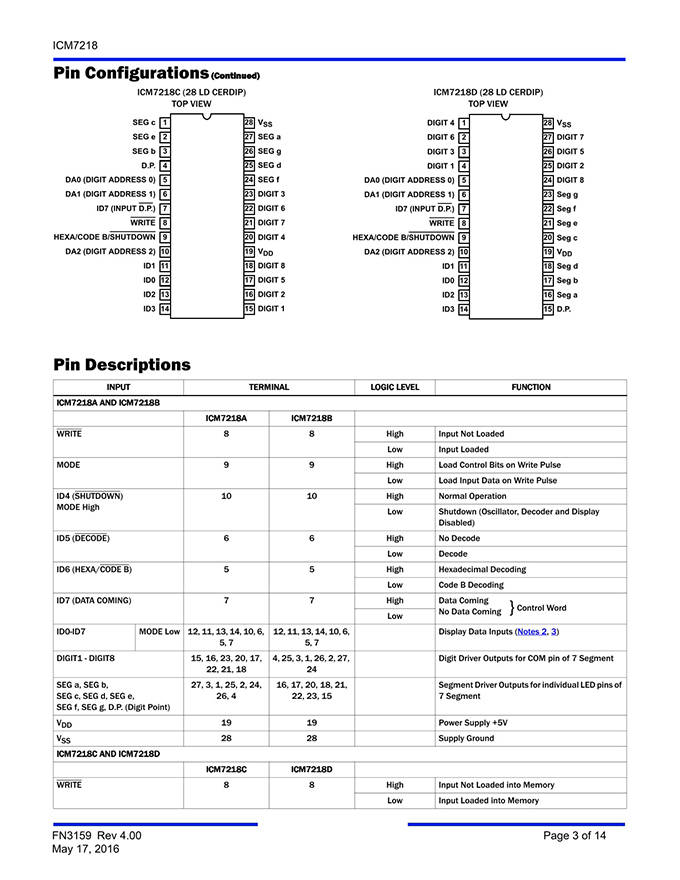

Product datasheet
For more information, please download
