Product Details
Features
? Industry standard driver replacement
? Improved response times
? Matched rise and fall times
? Reduced clock skew
? Low output impedance
? Low input capacitance
? High noise immunity
? Improved clocking rate
? Low supply current
? Wide operating voltage range
? Pb-Free available (RoHS compliant)
Applications
? Clock/line drivers
? CCD Drivers
? Ultra-sound transducer drivers
? Power MOSFET drivers
? Switch mode power supplies
? Class D switching amplifiers
? Ultrasonic and RF generators
? Pulsed circuits
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -EL7202CN |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 7.5ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | EL7202 |

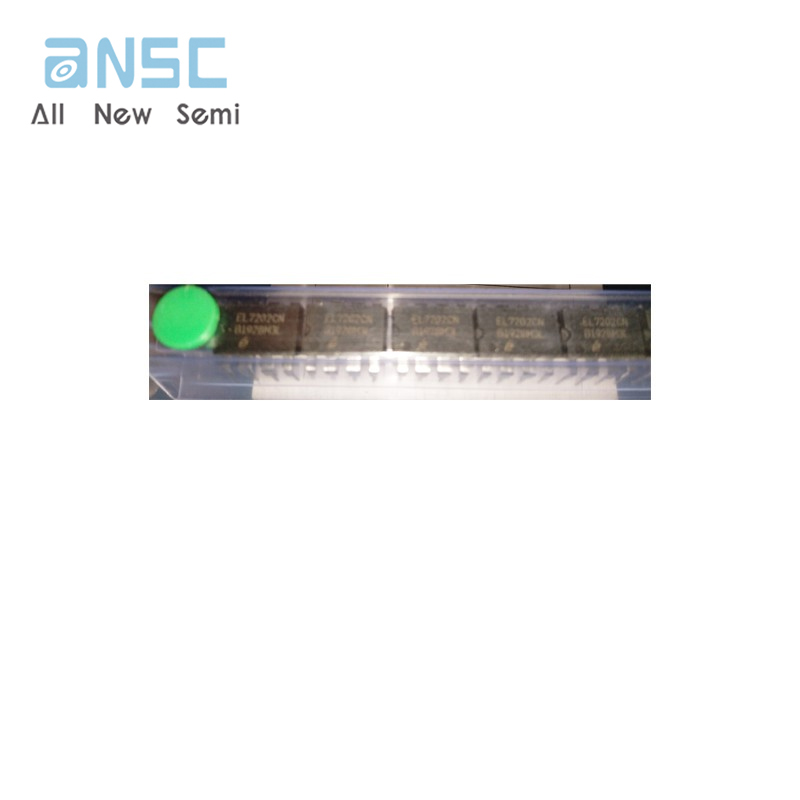

Actual image of the product

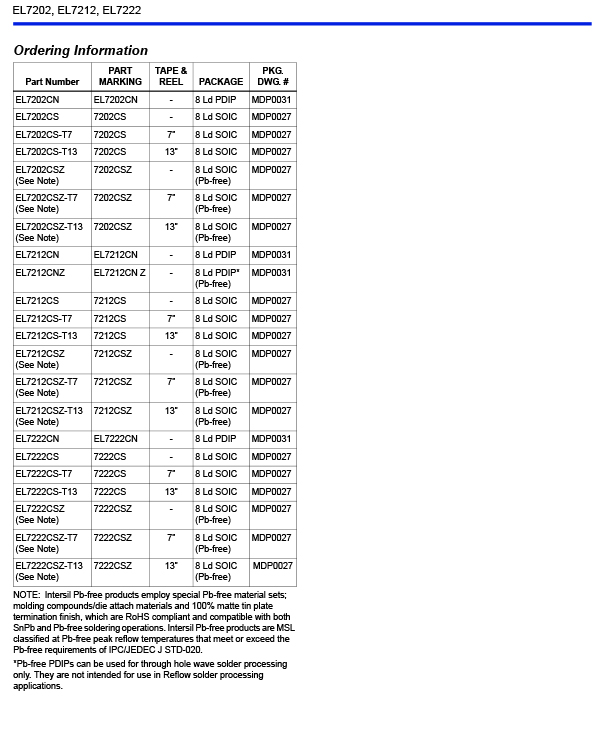

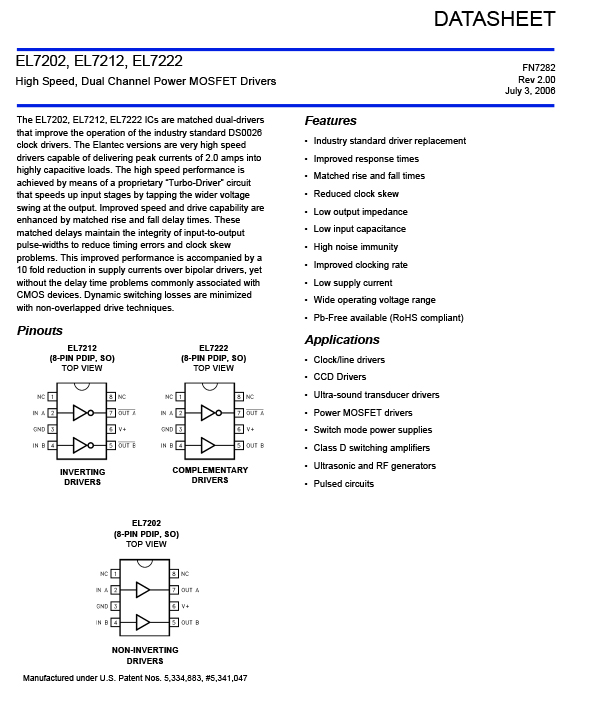

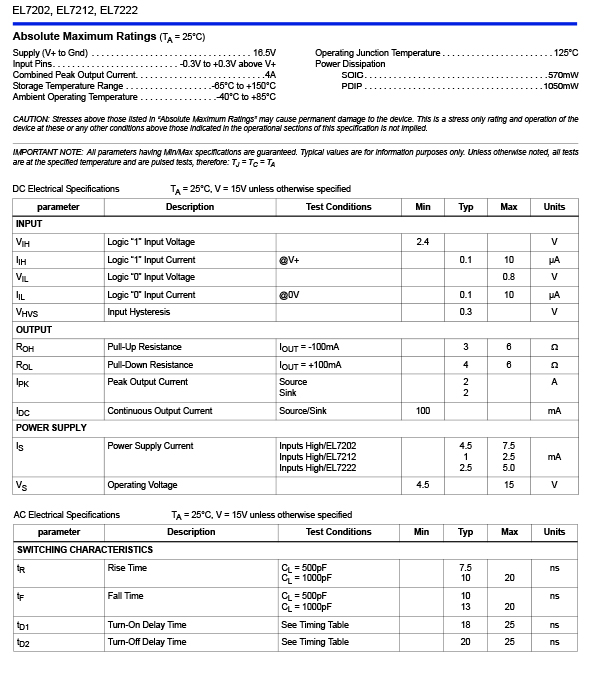

Product datasheet
For more information, please download
