Product Details
|

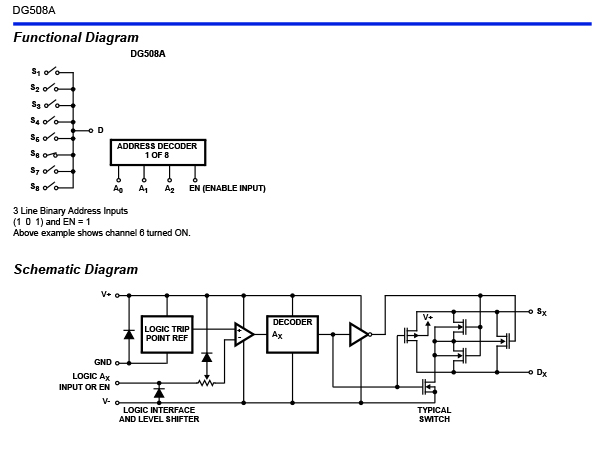

The DG508A is a CMOS Monolithic 8-Channel Analog Multiplexer, which can also be used as a demultiplexer. An enable input is provided. When the enable input is high, a channel is selected by the address inputs, and when low, all channels are off. A channel in the ON state conducts current equally well in both directions. In the OFF state each channel blocks voltages up to the supply rails. The address inputs and the enable input are TTL and CMOS compatible over the full specified operating temperature range. Features ? Low Power Consumption ? TTL and CMOS-Compatible Address and Enable Inputs ? 44V Maximum Power Supply Rating ? High Latch-Up Immunity ? Break-Before-Make Switching ? Alternate Source ? Pb-Free Available (RoHS Compliant) Applications ? Data Acquisition Systems ? Communication Systems ? Signal Multiplexing/Demultiplexing ? Audio Signal Multiplexing |
Product Description
| Type | Description |
| ANSC PART# | ANSC-DG508ACJZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5μs, 1μs |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | DG508A |

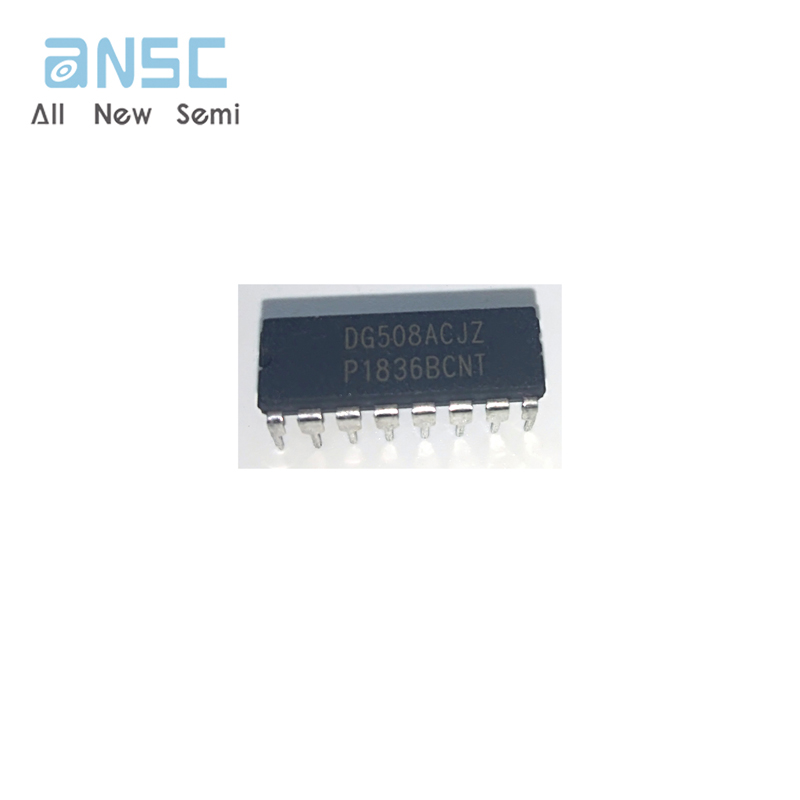

Product Photos

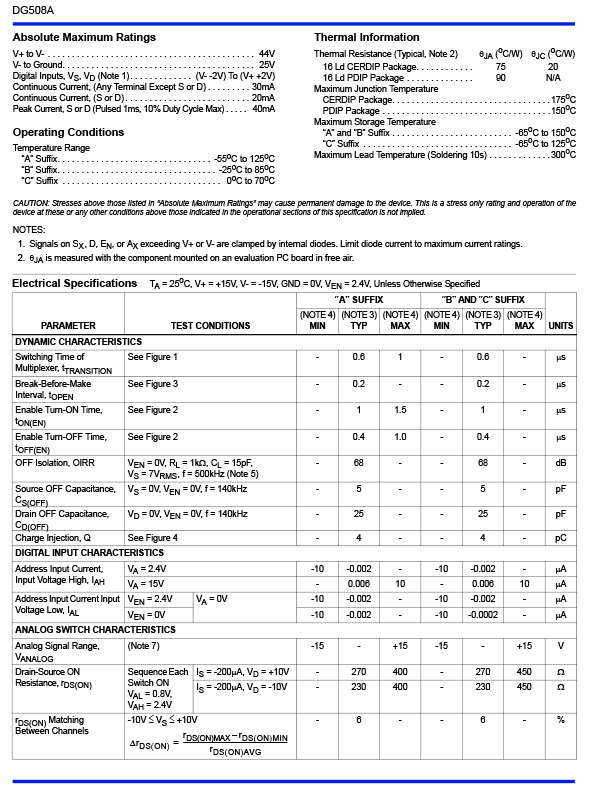

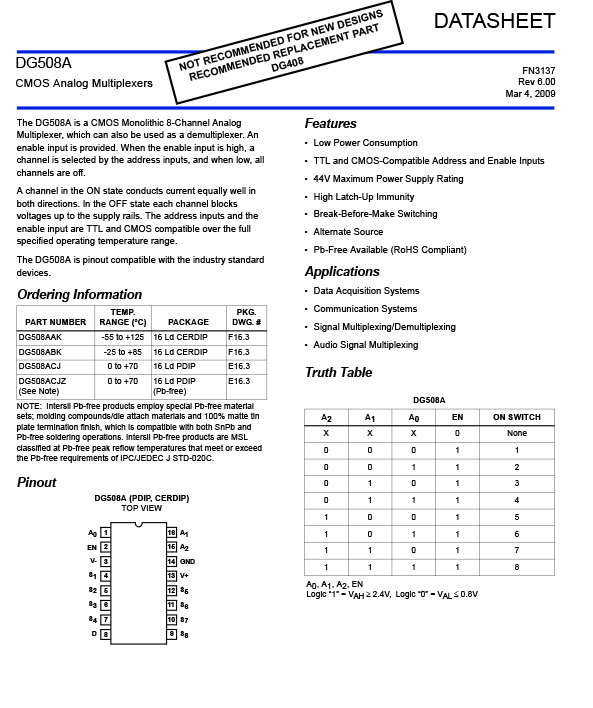

Product datasheet
For more information, please download
