Product Overview
A 240-BFQFP Exposed Pad package is provided with this component. FPGAs of this type consist of LOADABLE PLD components. This device features 189 I/Os in order to transfer data in a more efficient manner. A fundamental building block is made up of 2880 logic elements/cells. An electrical supply voltage of 5V powers it. An FPGA module can be attached to a development board with a Surface Mount-pin. Powered by a 4.5V~5.5V supply voltage, fpga chips is able to operate at high speeds. The FPGA belongs to the FLEX-10K? series of FPGAs, and it is one type of FPGA. During the operation of the system, the operating temperature should remain within the range of -40°C~85°C TA. In order to make this device as versatile as possible, there are 189 different outputs included. It is for space saving reasons that this FPGA model is contained in Tray. As a whole, it has 240 terminations. The RAM bits that are offered by this fpga chips are 20480. Related parts can be found by using its base part number EPF10K50. Fpga electronics contains 360 LABs/CLBs in an array. Powered by a 3.3/55V power supply, it can be operated by almost anyone. Among its basic building blocks, there are 116000 gates that are included in it. Normally, fpga semiconductor uses an oscillator, which oscillates at 62.89MHz, to create the signal. There are 4 dedicated inputs which are used to detect the status of input signals on the platform.
Product Features
189 I/Os
Up to 20480 RAM bits
Product Applications
EPF10K50RI240-4 FPGAs applications.
-
Medical imaging
-
Computer hardware emulation
-
Integrating multiple SPLDs
-
Voice recognition
-
Cryptography
-
Filtering and communication encoding
-
Aerospace and Defense
-
Medical Electronics
-
Audio
-
Automotive
-
Product Description
| Type | Description |
| ANSC PART# | ANSC - EPF10K50RI240-4 |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Original |
| Series | FLEX-10K? |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Number of LABs/CLBs | 360 |
| Number of Logic Elements/Cells | 2880 |
| Total RAM Bits | 20480 |
| Number of I/O | 189 |
| Number of Gates | 116000 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 240-BFQFP Exposed Pad |
| Supplier Device Package | 240-RQFP (32x32) |
| Base Product Number | EPF10K50 |

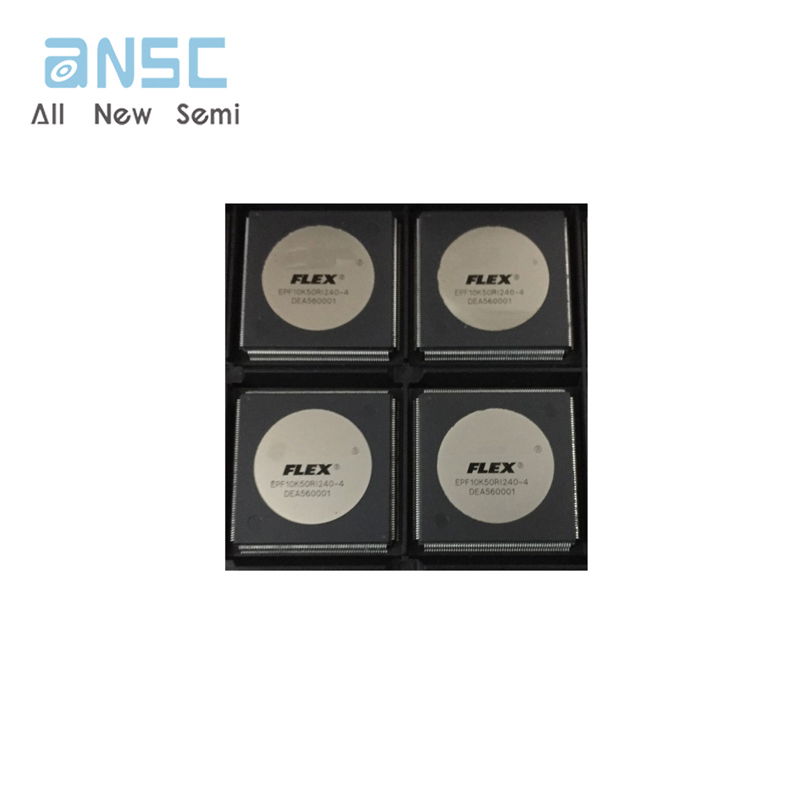

Product Photos

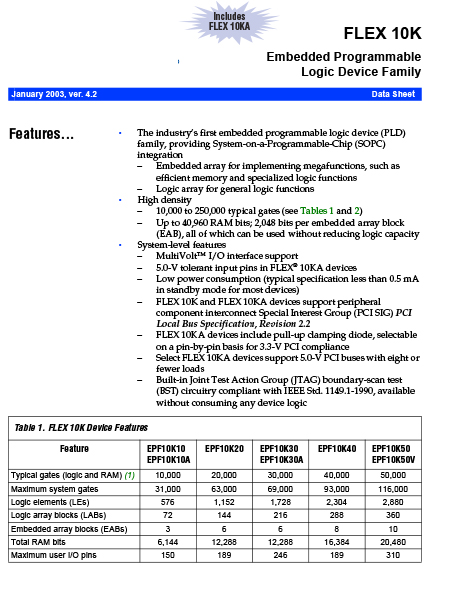

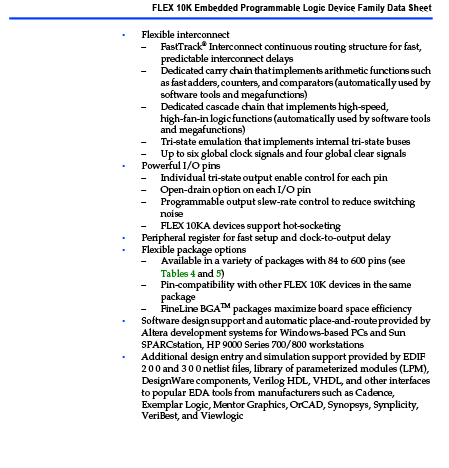

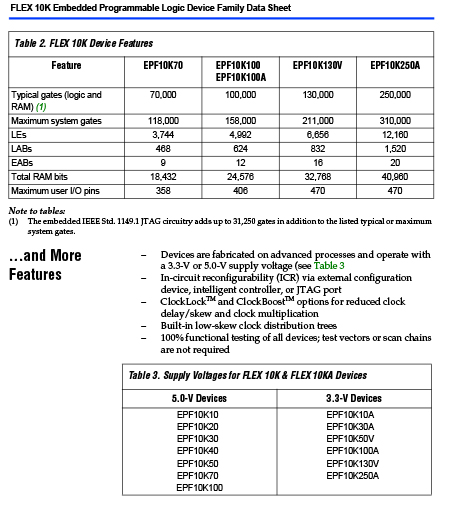

Product datasheet
For more information, please download
