Product Details
|

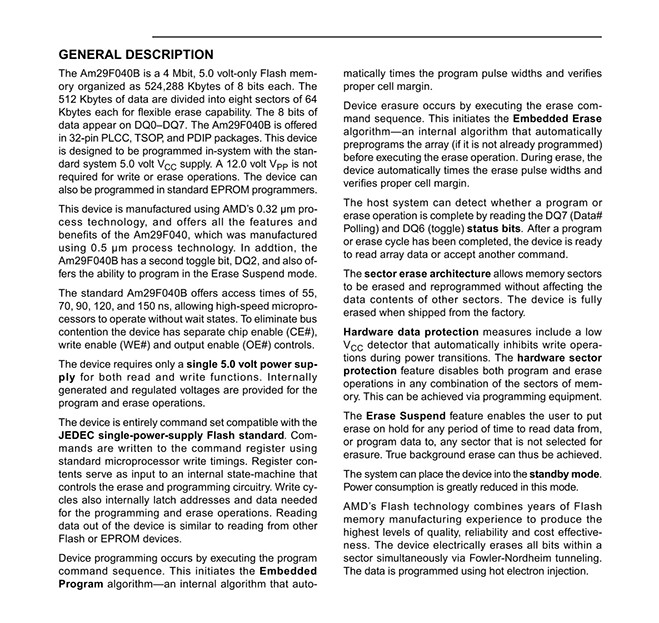

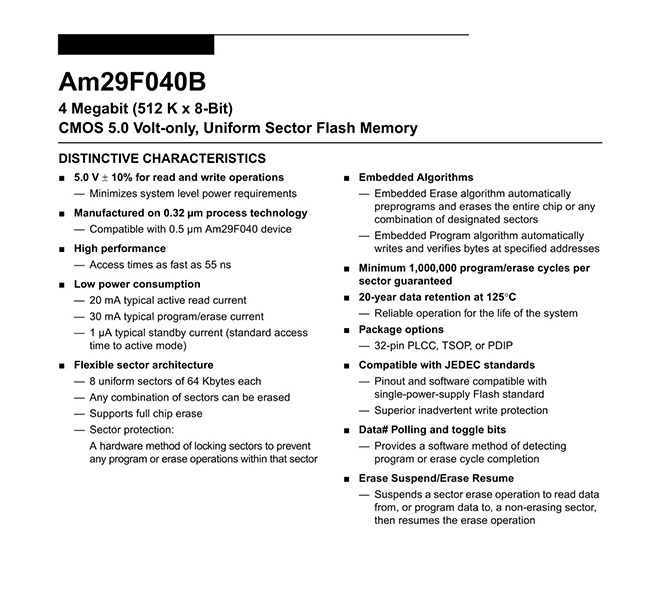

GENERAL DESCRIPTION The Am29F040B is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7. The Am29F040B is offered in 32-pin PLCC, TSOP, and PDIP packages. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for write or erase operations. The device can also be programmed in standard EPROM programmers. DISTINCTIVE CHARACTERISTICS ■ 5.0 V ± 10% for read and write operations — Minimizes system level power requirements ■ Manufactured on 0.32 μm process technology — Compatible with 0.5 μm Am29F040 device ■ High performance — Access times as fast as 55 ns ■ Low power consumption — 20 mA typical active read current — 30 mA typical program/erase current — 1 μA typical standby current (standard access time to active mode) ■ Flexible sector architecture — 8 uniform sectors of 64 Kbytes each — Any combination of sectors can be erased — Supports full chip erase — Sector protection: A hardware method of locking sectors to prevent any program or erase operations within that sector ■ Embedded Algorithms — Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors — Embedded Program algorithm automatically writes and verifies bytes at specified addresses ■ Minimum 1,000,000 program/erase cycles per sector guaranteed ■ 20-year data retention at 125°C — Reliable operation for the life of the system ■ Package options — 32-pin PLCC, TSOP, or PDIP ■ Compatible with JEDEC standards — Pinout and software compatible with single-power-supply Flash standard — Superior inadvertent write protection ■ Data# Polling and toggle bits — Provides a software method of detecting program or erase cycle completion ■ Erase Suspend/Erase Resume — Suspends a sector erase operation to read data from, or program data to, a non-erasing sector, then resumes the erase operation |
Product Description
| Type# | Description |
| ANSC PART# |

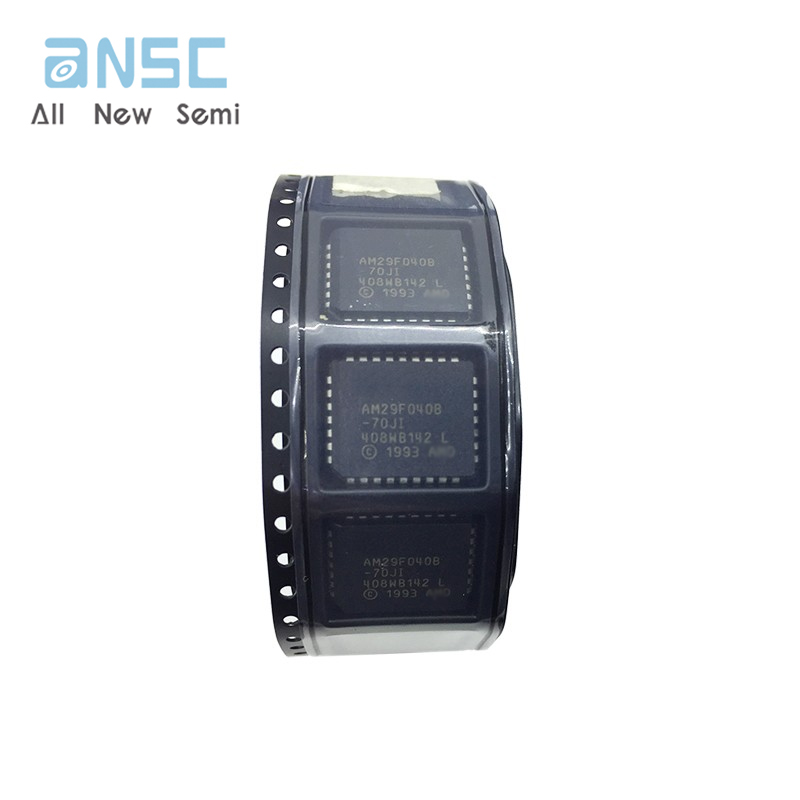

ANSC- AM29F040B-70JI |
| Ihs Manufacturer | Original |
| Part Package Code | LCC |
| Package Description | QCCJ, LDCC32,.5X.6 |
| Pin Count | 32 |
| Access Time-Max | 70 ns |
| Additional Feature | MINIMUM 1000K PROGRAM/ERASE CYCLE ;20 YEAR DATA RETENTION |
| Command User Interface | YES |
| Data Polling | YES |
| Data Retention Time-Min | 20 |
| Endurance | 1000000 Write/Erase Cycles |
| Length | 13.97 mm |
| Memory Density | 4194304 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Sectors/Size | 8 |
| Number of Terminals | 32 |
| Number of Words | 524288 words |
| Number of Words Code | 512000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max |
85 °C |
| Operating Temperature-Min | -40 °C |
| Organization | 512KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC32,.5X.6 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER |
| Parallel/Serial | PARALLEL |
| Programming Voltage | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.556 mm |
| Sector Size | 64K |
| Standby Current-Max | 0.000005 A |
| Supply Current-Max | 0.04 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Toggle Bit | YES |
| Type | NOR TYPE |
| Width | 11.43 mm |
